Field Description
• 56 5%1 E1: Differentiated Services Code Point
according to RFC 3260 is used to signal the priority of IP
packets (indicated in decimal format).
• 56 @?%1 E1: Differentiated Services Code
Point according to RFC 3260 is used to signal the priority of
IP packets (indicated in hexadecimal format).
• *- :( E1: The TOS value is specified in binary
format, e.g. 00111111.
• *- 5%1 E1: The TOS value is specified in decimal
format, e.g. 63.
• *- @?%1 E1: The TOS value is specified in
hexadecimal format, e.g. 3F.
COS Filter
(802.1p/Layer 2)
Enter the service class of the IP packets (Class of Service,
CoS).
Possible values are whole numbers between  and ,.
The default value is #.
10.6.2 Rule Chains
Rules for IP filters are configured in the Rule Chains menu. These can be created separ-
ately or incorporated in rule chains.
In the Networking->Access Rules->Rule Chains menu, all created filter rules are listed.

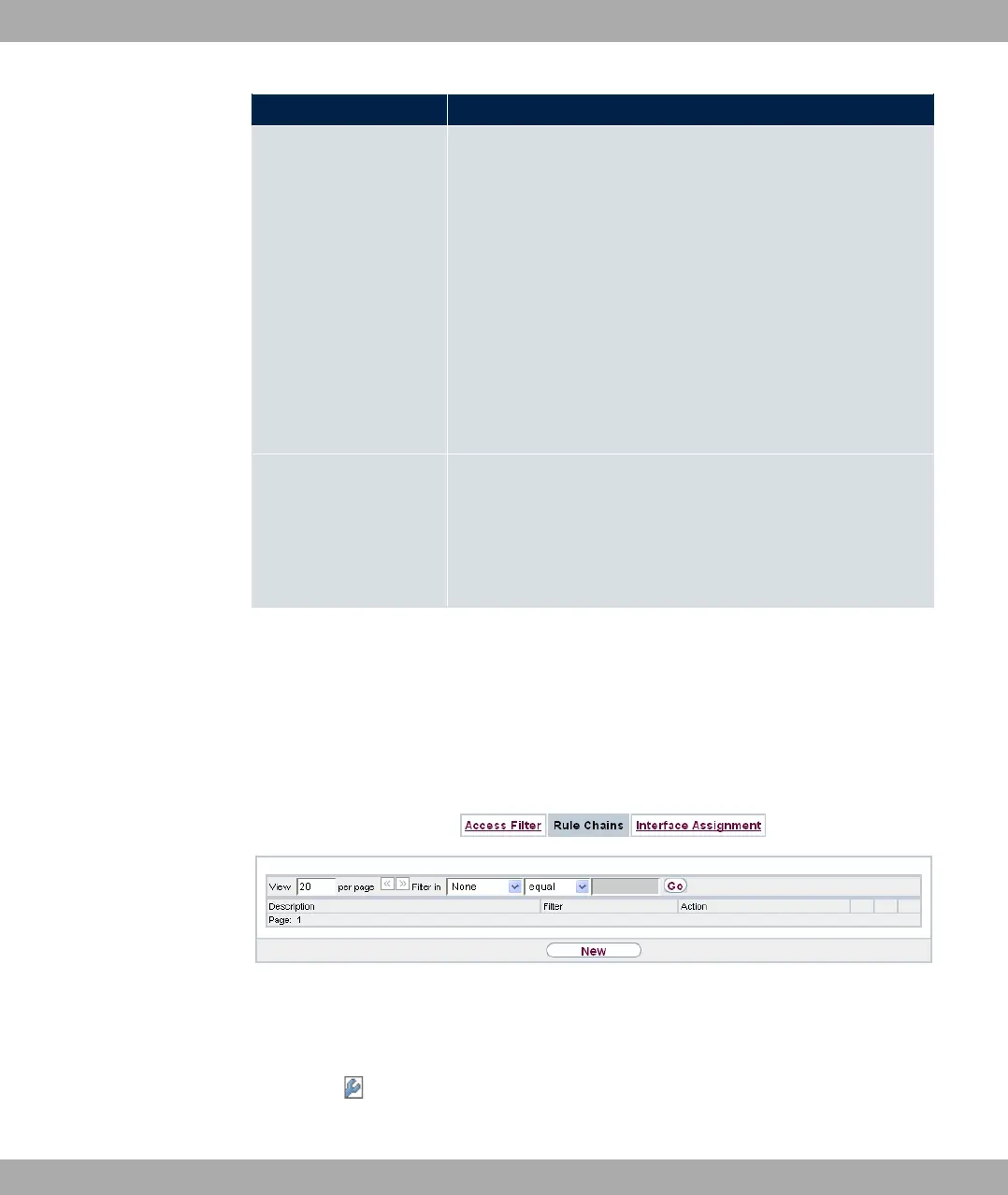

Fig. 109: Networking->Access Rules->Rule Chains
10.6.2.1 Edit or New
Choose the icon to edit existing entries. To configure access lists, select the New but-
ton.
