Field Description
formation) or .## (i.e. without VLAN information).
7.2.2 Port Configuration
In this menu, you can define and view the rules for receiving frames at the VLAN ports.

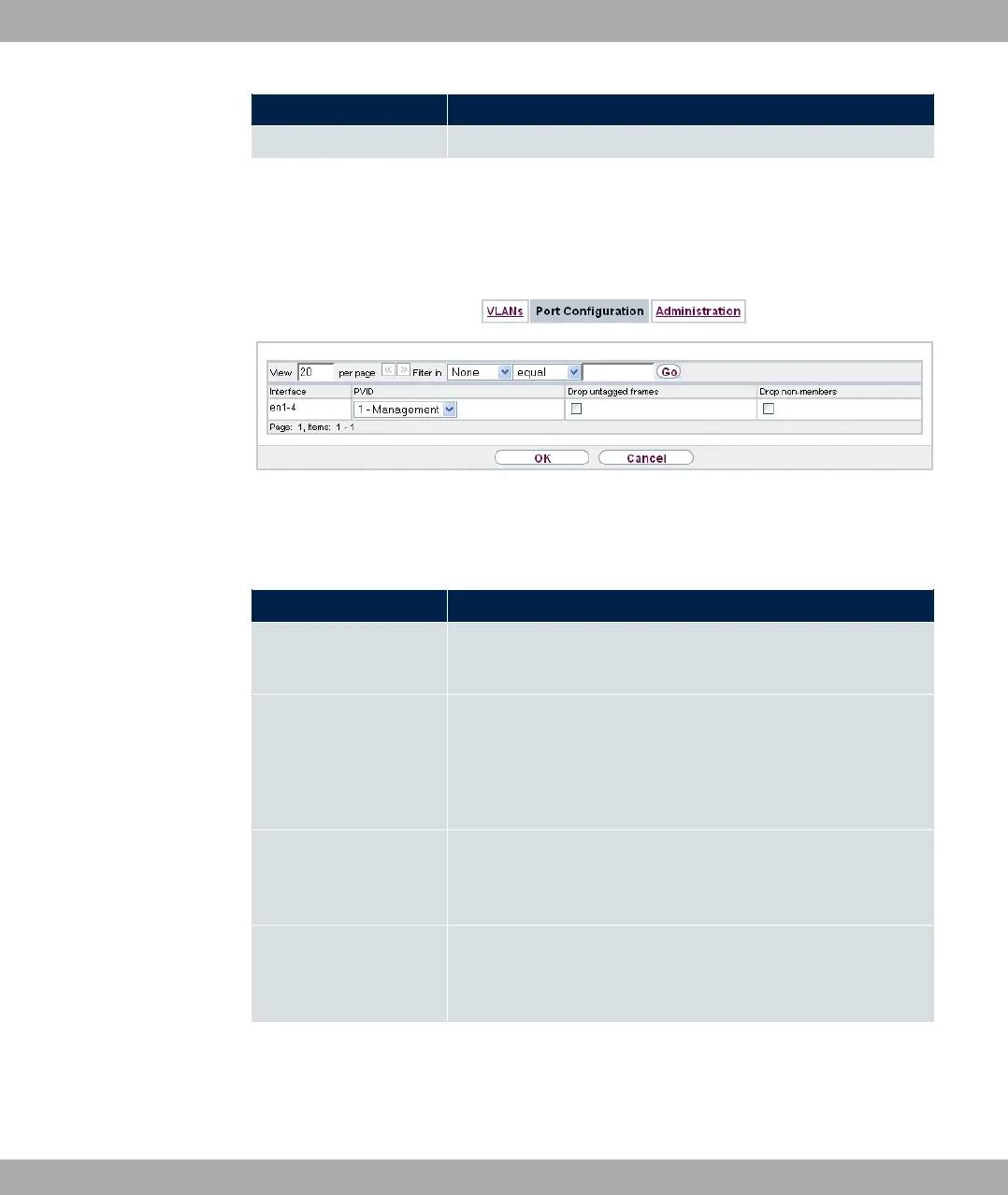

Fig. 60: LAN->VLANs->Port Configuration
The LAN->VLANs->Port Configuration menu consists of the following fields:
Fields in the Port Configuration menu.
Field Description
Interface Shows the port for which you define the PVID and processing
rules.
PVID Assign the selected port the required PVID (Port VLAN Identifi-
er).
If a packet without a VLAN tag reaches this port, it is assigned
this PVID.
Drop untagged frames If this option is enabled, untagged frames are discarded. If the
option is disabled, untagged frames are tagged with the PVID
defined in this menu.
Drop non-members If this option is enabled, all tagged frames that are tagged with a
VLAN ID to which the selected port does not belong are dis-
carded.
7 LAN bintec elmeg GmbH
