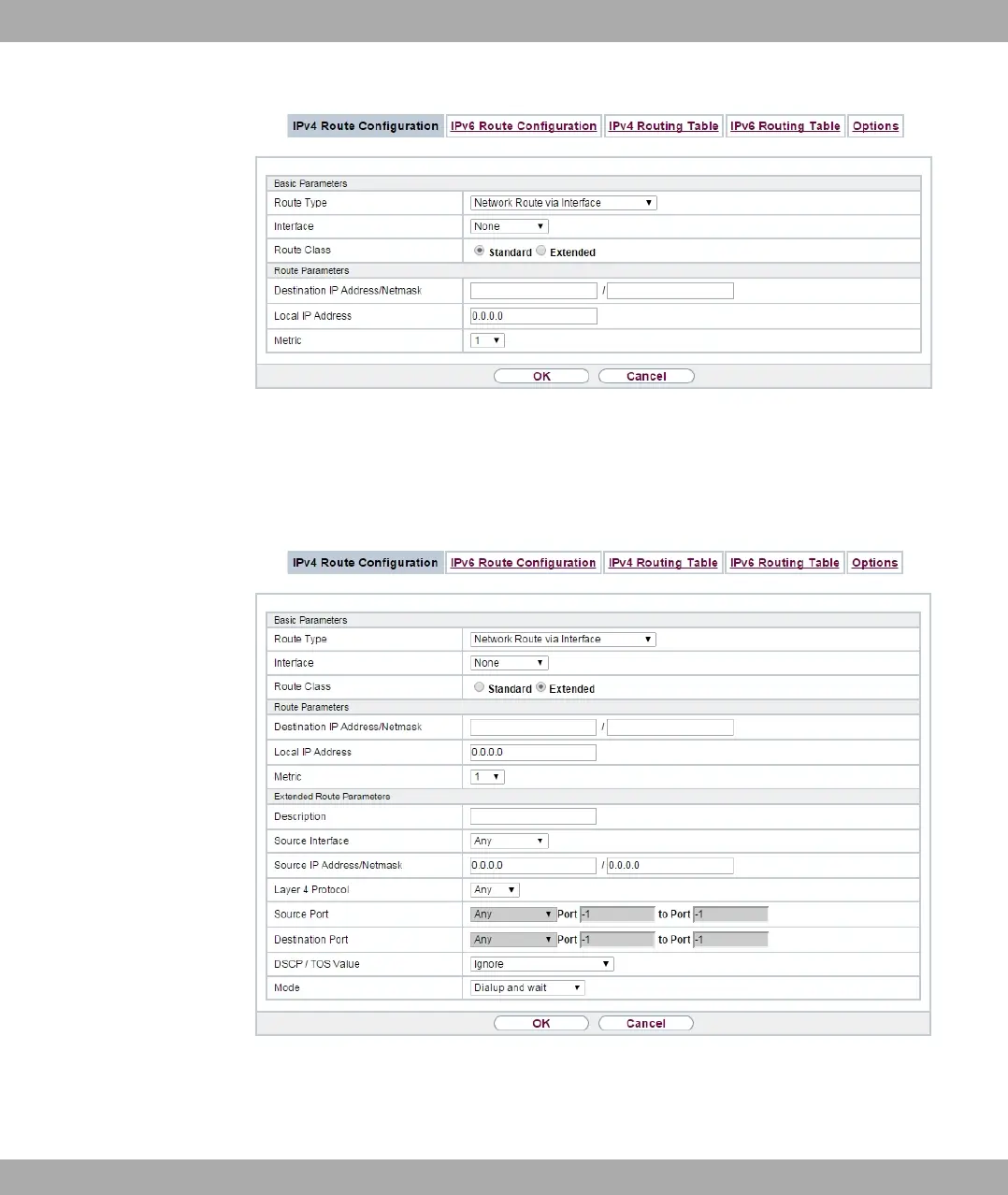

Fig. 92: Network->Routes->IPv4 Route Configuration->New with Route Class =

Standard.

If the ? option is selected for the Route Class, an extra configuration section

opens.

Fig. 93: Network->Routes->IPv4 Route Configuration->New with Route Class = ?



The Network->Routes->IPv4 Route Configuration->New menu consists of the following
