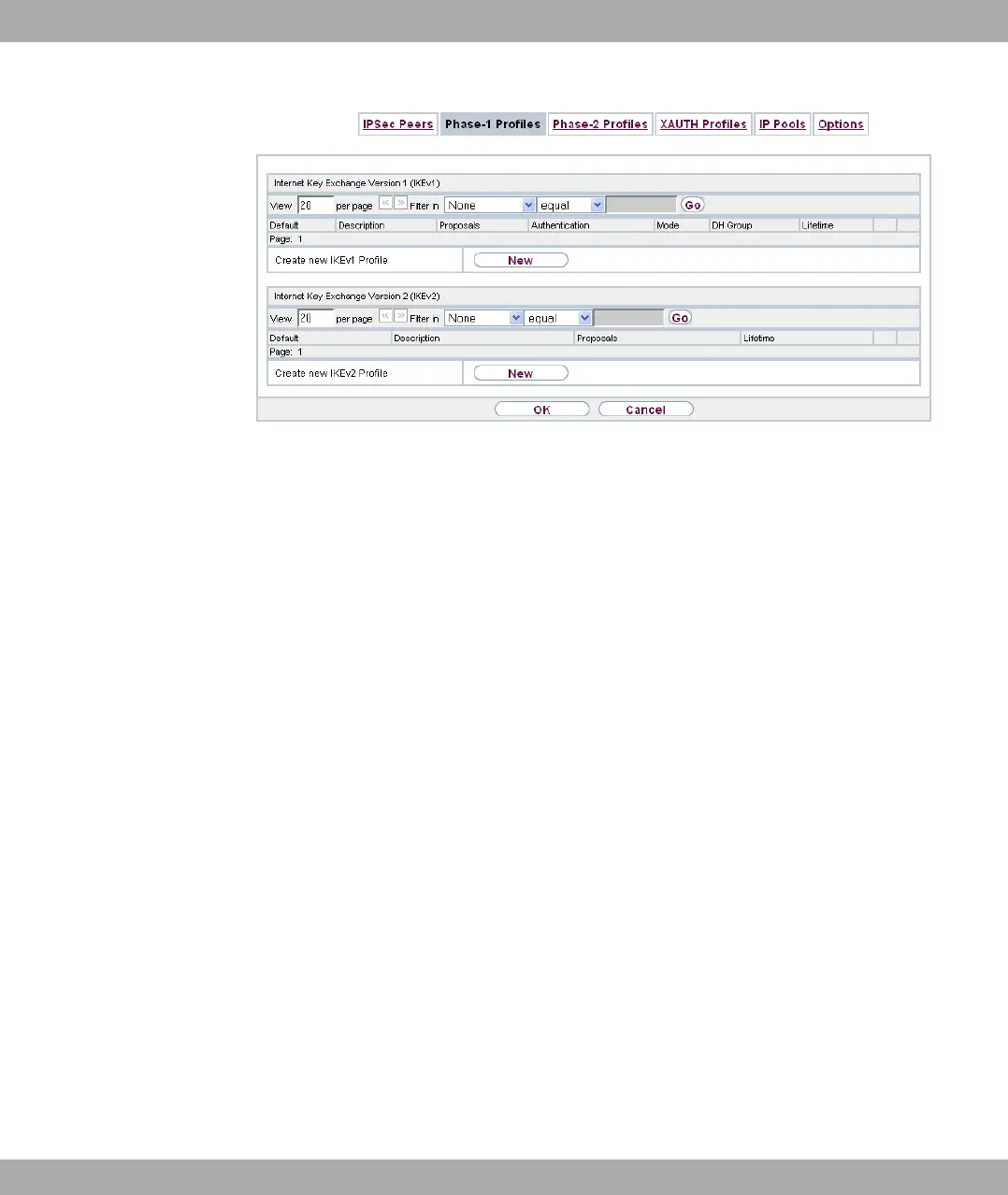

Fig. 137: VPN->IPSec->Phase-1 Profiles

In the Default column, you can mark the profile to be used as the default profile.

14.1.2.1 New

Choose the New (at Create new IKEv1 Profile or Create new IKEv2 Profile) button to

create additional profiles.
