SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 4
31-11

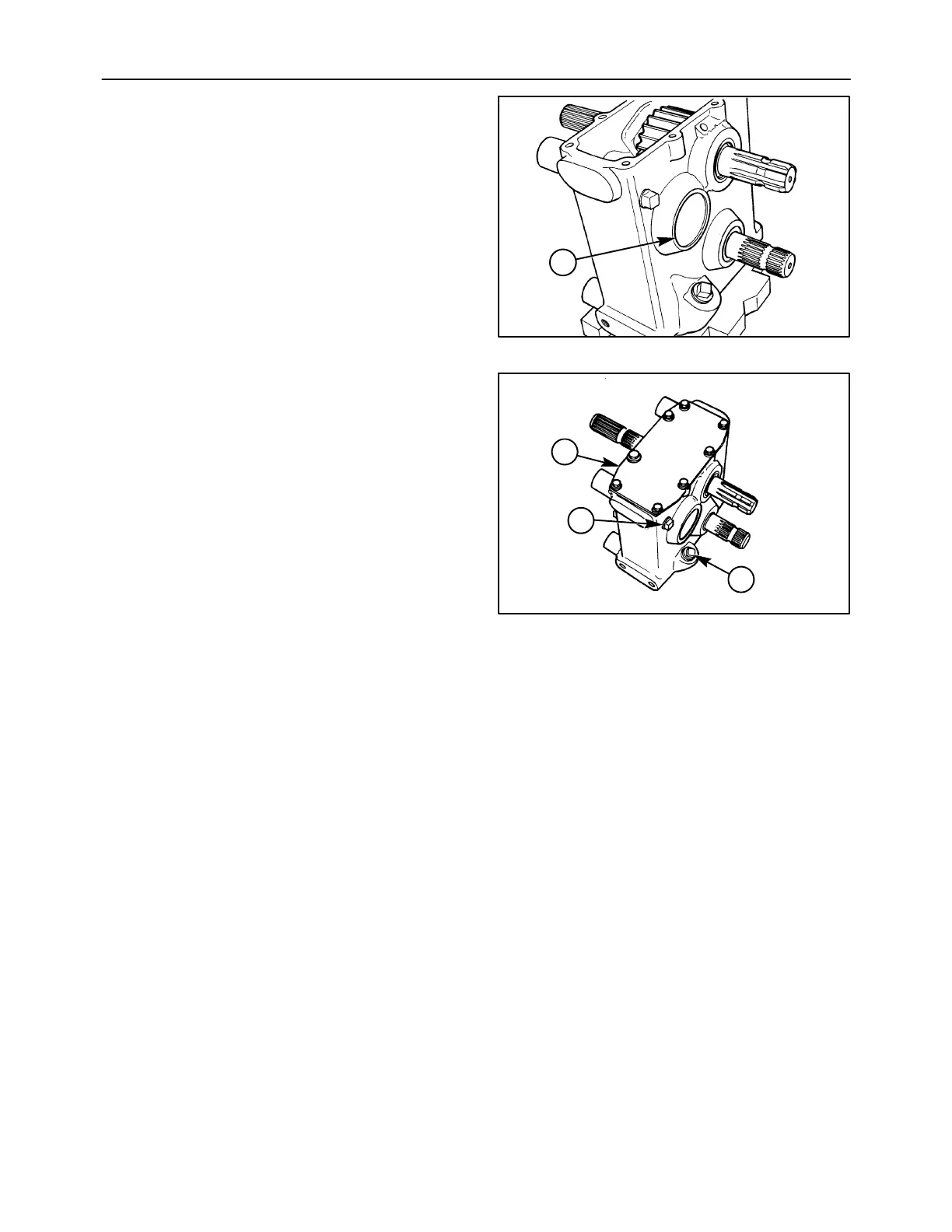

10. Apply a thin coat of silicone sealant to the edge
of the expansion plug, 1, and insert it into the bore
of the intermediate shaft until it contacts the
shoulder. The plug must then be hammered in
place to seat the edges of the plug into a recess
in the bore. Hammer over the full surface of the
plug, starting in the center and working outwardly
in a circular pattern until the outer face of the plug
is flush with, or slightly recessed past the face of
the bore.
NOTE: Do not drive plug in too far, as it may contact
the end of the shaft.
1411/4-13
1
25
11. Apply a bead of silicone sealant on the housing
and install the cover plate, 1.
12. Reinstall the gearbox in the tongue, following the
steps described in previous section; “To Convert
Step-Up Gearbox for Different PTO Speed”. Fill
the gearbox with API GL-5 80W-90 gear oil to the
level of the check plug, 2, (540 RPM position), or
3, (1000 RPM position). The gearbox holds 650
ml (22 oz.) of gear oil.
1411/4-13
2
1
3
26
