SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-27

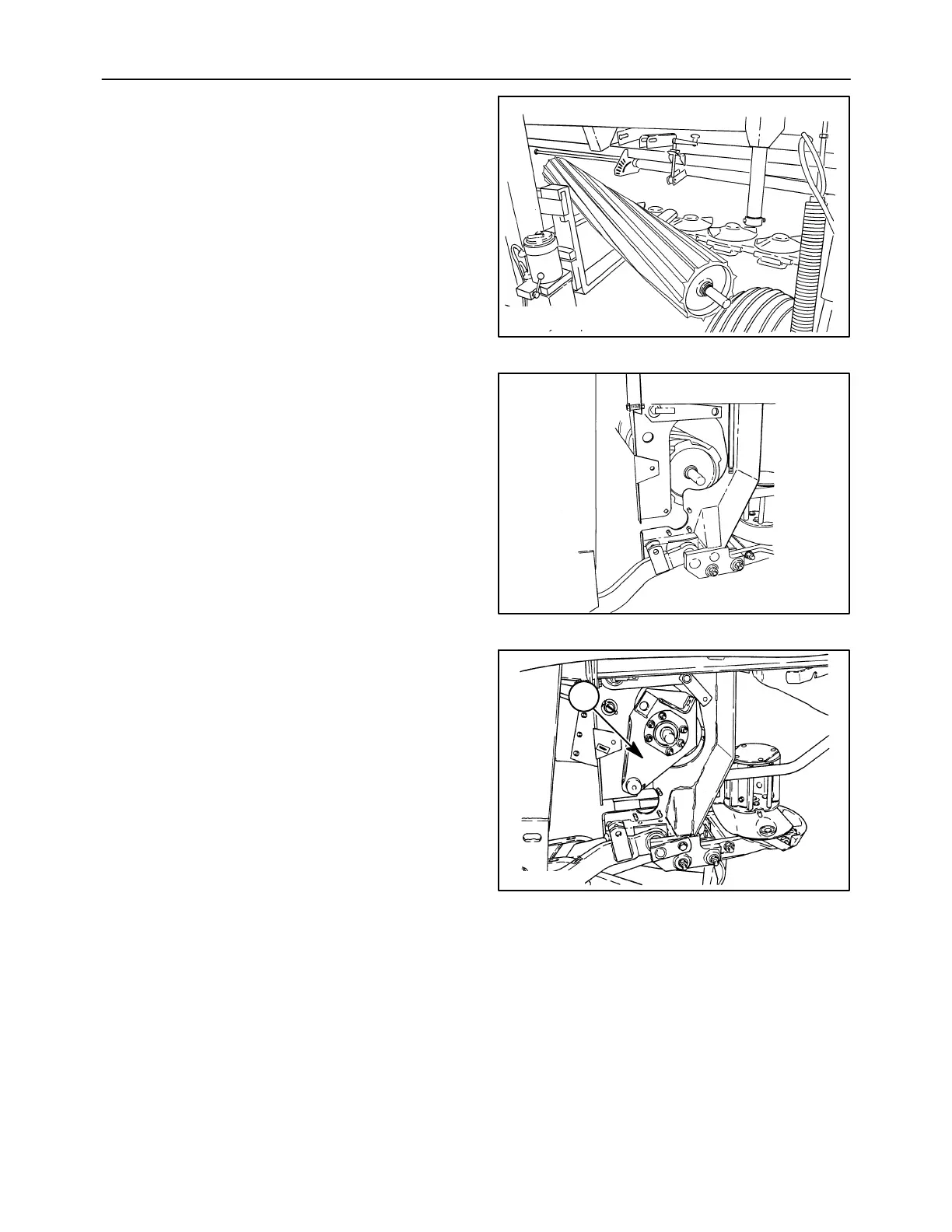

UPPER CONDITIONER ROLL -
INSTALLATION
1. Position the upper conditioner roll behind the
unit, with the hex shaft on the left side. Using a
suitable lift or floor jack to support the conditioner
roll, lift the left end of the conditioner roll up and
slide the hex shaft through the bearing in the left
side pivot arm.
NOTE: Thoroughly clean the shaft ends with emery
cloth and lubricate them to ease installation into the
bearings.
50012162
70
2. Use a suitable lift or floor jack and blocking to lift
the right end of the upper conditioner roll up and
slide it through the slot in the frame into the
bearing mount area. Lift the roll up into position
in the header frame.
19992647
71
3. Slide the pivot arm and bearing assembly, 1, far
enough over the right end of the conditioner roll
so that it may be pivoted up into its mounting
bracket. Ensure the pivot bushing is installed in
the pivot arm, and swing the pivot arm up in
place. Install the carriage bolt and nut to retain
the pivot arm.
NOTE: Thoroughly clean the shaft ends with emery
cloth and lubricate them to ease installation into the
bearings.
A5046-3
1
72
