SECTION 35 - HYDRAULIC SYSTEMS - CHAPTER 1
35-7
MASTER CYLINDER
Disassembly

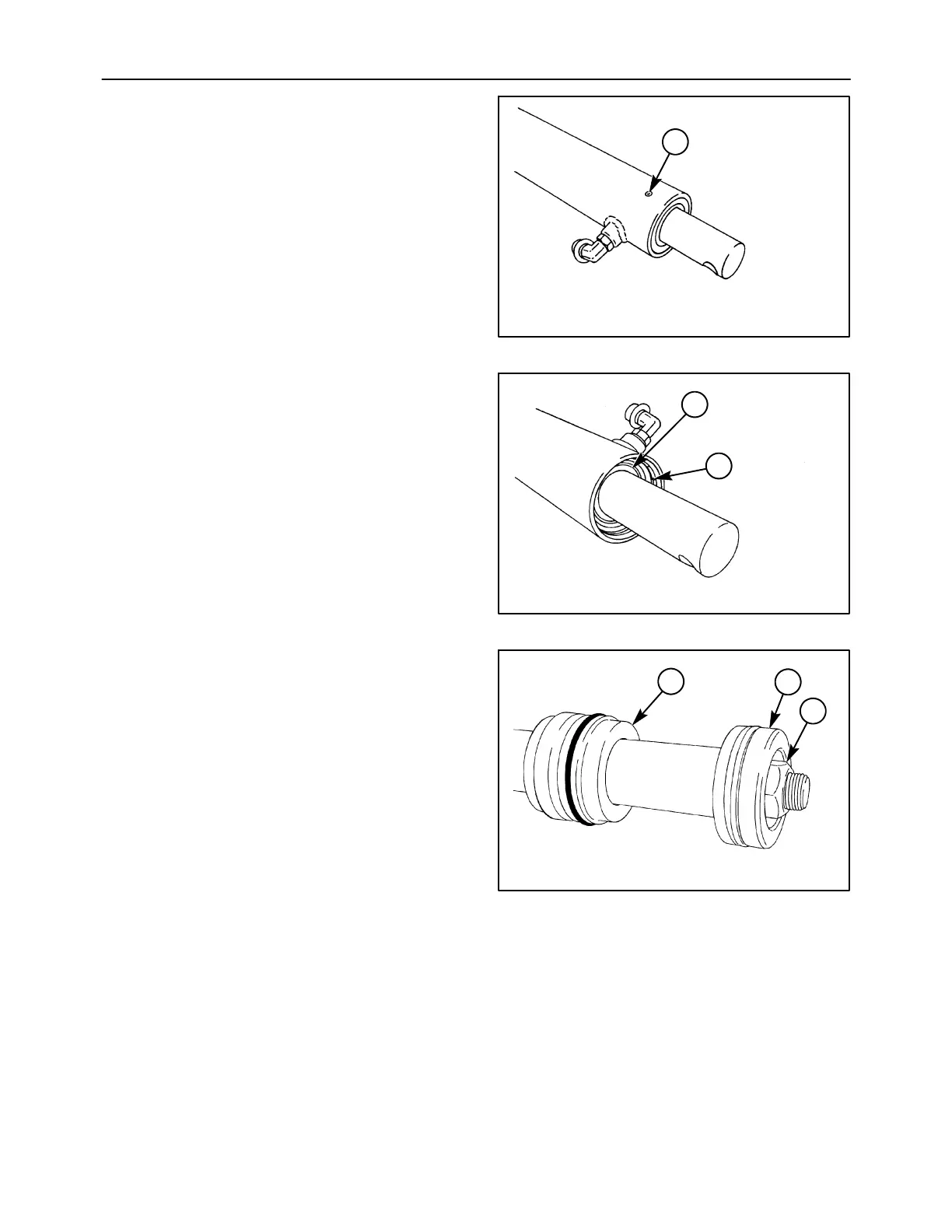

1. Remove setscrew, 1.
A1411/9-6
1
8
2. Tap the cylinder head, 1, into the cylinder far
enough to remove retaining ring, 2, with a
screwdriver.
A1411/9-7
1
2
9
3. Pull the complete piston rod assembly out of the
cylinder barrel.
NOTE: All O-rings and seals should be replaced.
4. Capture the piston rod using a bar through the
hole in the end, and remove rod nut, 1. Slide off
the piston, 2, and cylinder head, 3.
1
2
3
A1411/9-8
10
Inspection
1. Examine the parts for wear or nicks. Remove any
burrs inside the cylinder.
2. Remove all seals and O-rings, carefully noting
the lip position on the seals.
