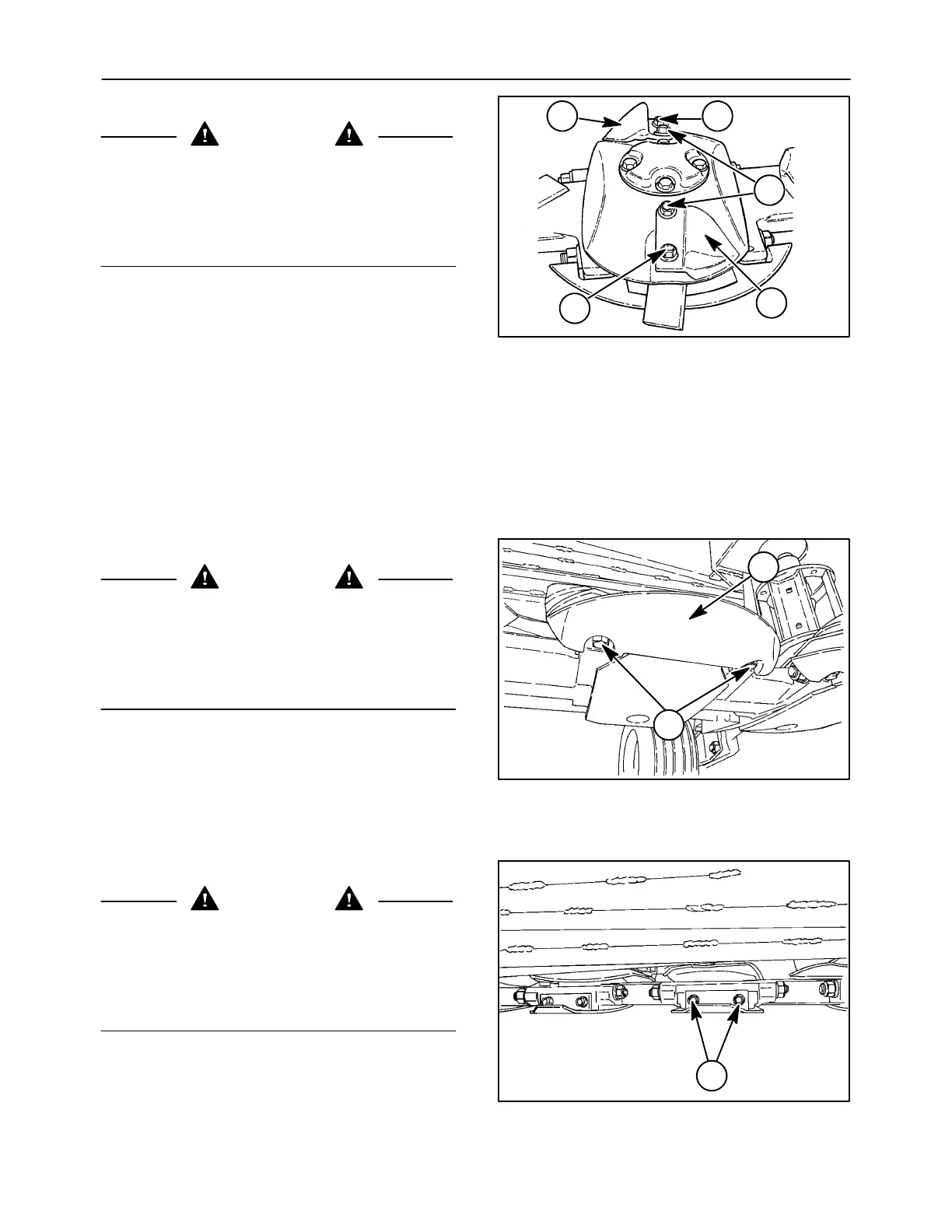

CROP LIFTER REPLACEMENT
WARNING
Disengage the PTO, turn off the tractor engine
and remove the key. Wait for all movement to
stop before leaving operator’s position. Never
adjust, lubricate, clean or unplug machine with
the engine running. Failure to comply could
result in death or serious injury.
The crop lifters should be inspected daily for wear or
damage. Replace the lifters, 1, when the sloping
surfaces wear thin or wear through, or if the lifter is
bent or cracked.
Replace the lifter by removing the knife bolt, 2, and
the lifter bolt, 3. It will be necessary to slide a wrench
under the disc to hold the flange nut on the lifter bolt.
Torque the bolts to 159 Nám (117 ft-lb).
IMPORTANT: Replace both the lifters on a disc to
maintain balance. Do not make weld repairs to the
lifters, as this will affect lifter strength and balance.
2--48
1 2
1
2
3
17
ROCK GUARD REPLACEMENT
WARNING
Disengage the PTO, turn off the tractor engine
and remove the key. Wait for all movement to
stop before leaving operator’s position. Never
adjust, lubricate, clean or unplug machine with
the engine running. Failure to comply could
result in death or serious injury.
Rock guards, 1, can be removed by removing bolts,
2.
Broken rock guards should be replaced immediately.
Rock guards which are worn thin should be replaced
before they break.
1
2
20011821
18
SKID SHOE REPLACEMENT
WARNING
Disengage the PTO, turn off the tractor engine
and remove the key. Wait for all movement to
stop before leaving operator’s position. Never
adjust, lubricate, clean or unplug machine with
the engine running. Failure to comply could
result in death or serious injury.
Skid shoes can be removed by removing bolts, 1.
Broken skid shoes should be replaced immediately.
Skid shoes which are worn thin should be replaced
before they break.
1
20011822
19
