Case IH DCX101 - Standard Driveline Guards - Assembly

SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 1
31-9
Standard Driveline Guards -- Assembly

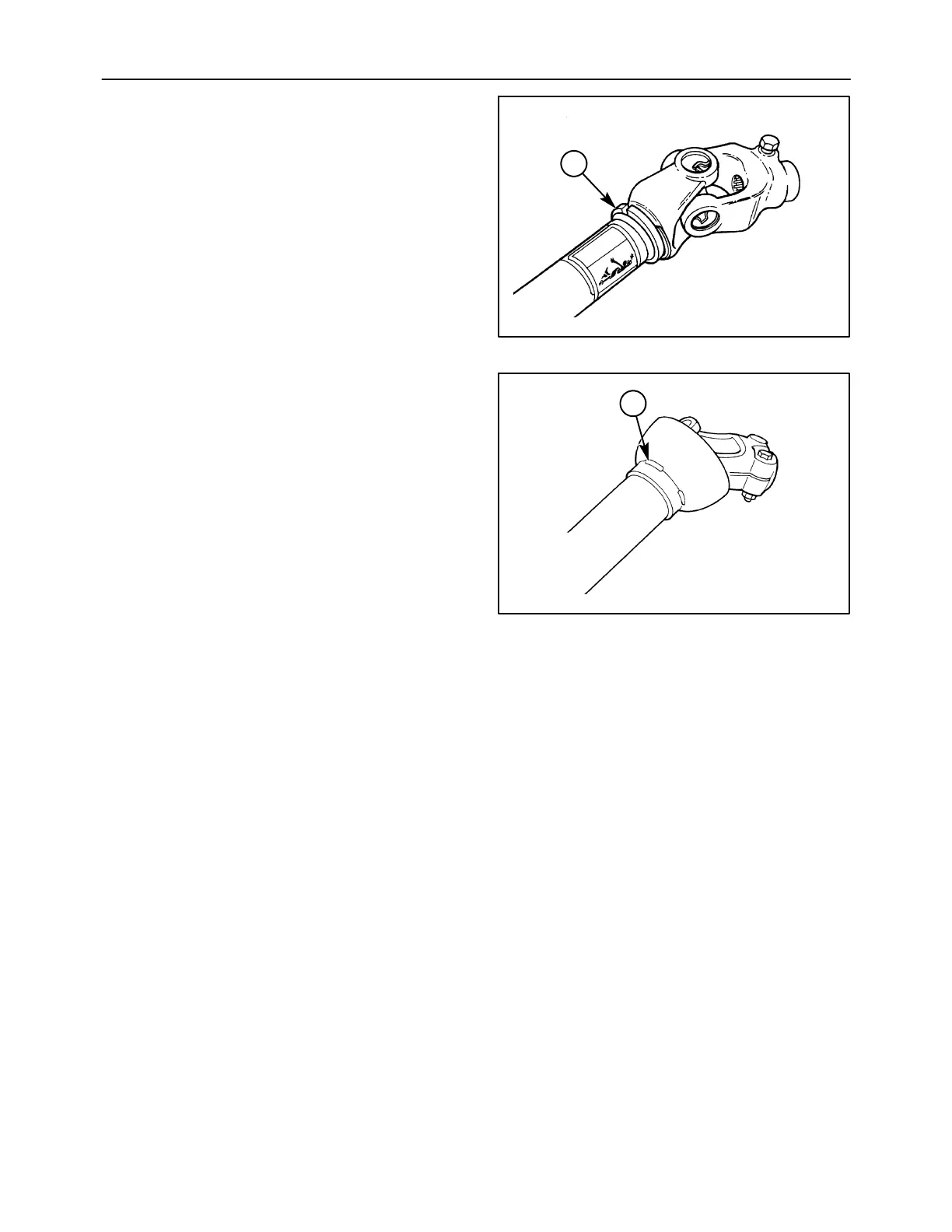

1. Install the nylon bushing, 1, in yoke groove, and
position the retaining ring in between yoke and
nylon bushing.
1411/3-12
1
20
2. Slide the guard onto the shaft, making sure the
bushing on the end of the guard slips over the
end of the shaft, and turn the guard to seat the
nylon bushing properly in the guard.
3. Rotate the guard so that the opening of the
retaining ring is positioned close to the slot, 1, in
the guard. Insert a screwdriver into the slot and
use it to hold the end of the retaining ring securely
against the guard.
4. Reach in through the front of the guard with a
second screwdriver, and pry the opposite end of
the retaining ring into the groove in the guard.
Continue to hold the ring with the first
screwdriver, and use the second screwdriver to
work around the guard until the retaining ring is
fully seated in the groove in the guard.
5. Check that the retaining ring and nylon bushing
have seated properly in the guard, and that the
guard rotates freely.
A3657-06
1
21
