SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-5

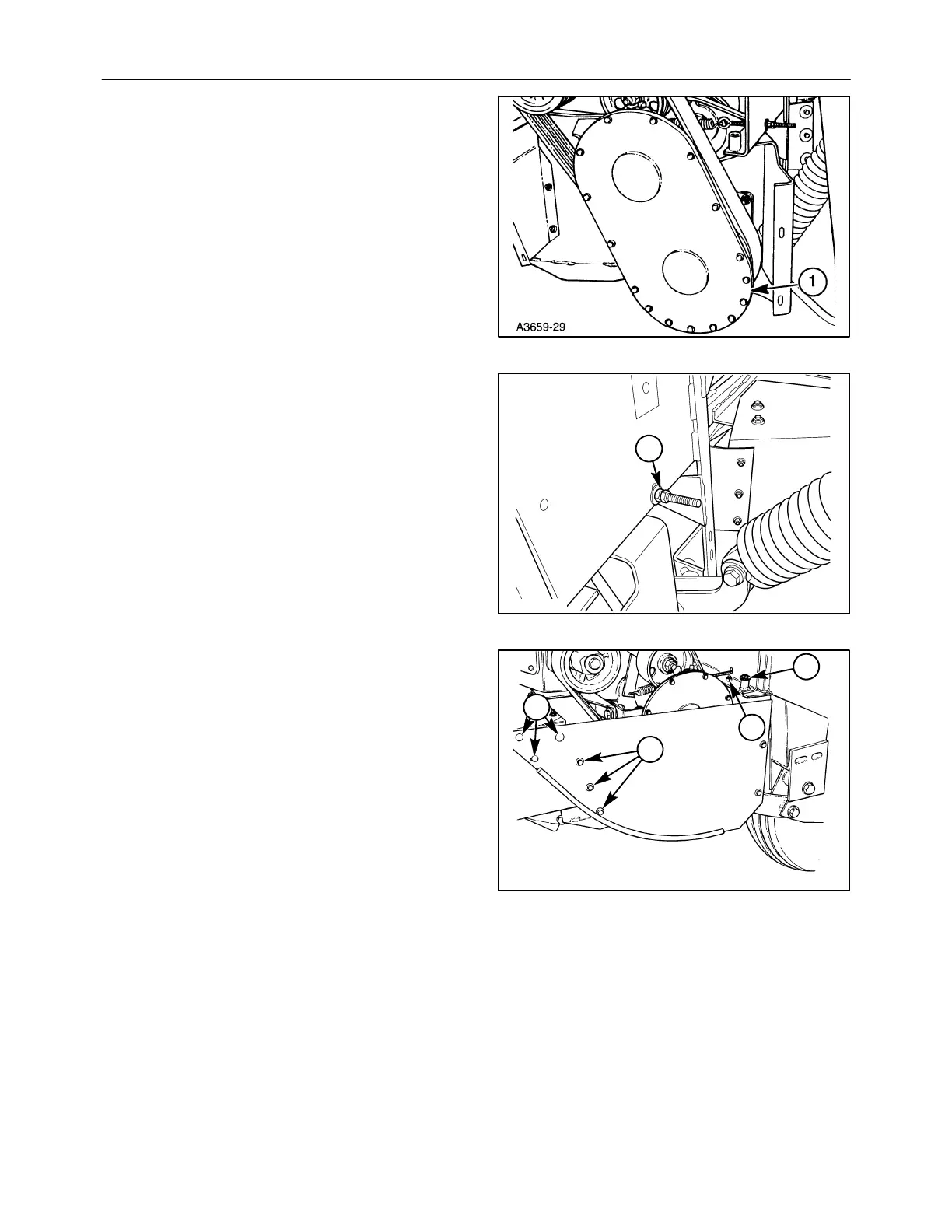

CONDITIONER ROLL GEARBOX -
REMOVAL
1. Drain oil by removing the bottom plug, 1, on
conditioner roll gearbox. The oil may drain faster
if the top plug is removed from the gearbox also.
NOTE: Figure shows shielding removed for clarity.
8
2. Remove the tension on the conditioner roll drive
belt by loosening the nuts, 1, on the spring
tension rod until the belt is loose on the sheaves.
1
10045453
9
3. Remove the divider sheet assembly from the unit
by removing the cap screw and locknut at 1, and
six carriage bolts, lock washers and nuts at 2.
NOTE: It may be convenient to remove the left end
swing out shield for better access. To remove the
shield, remove the two cap screws and lock nuts at
3, and lift off the shield.
A3659-25
1
3
2
2
10
