SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 1
31-10

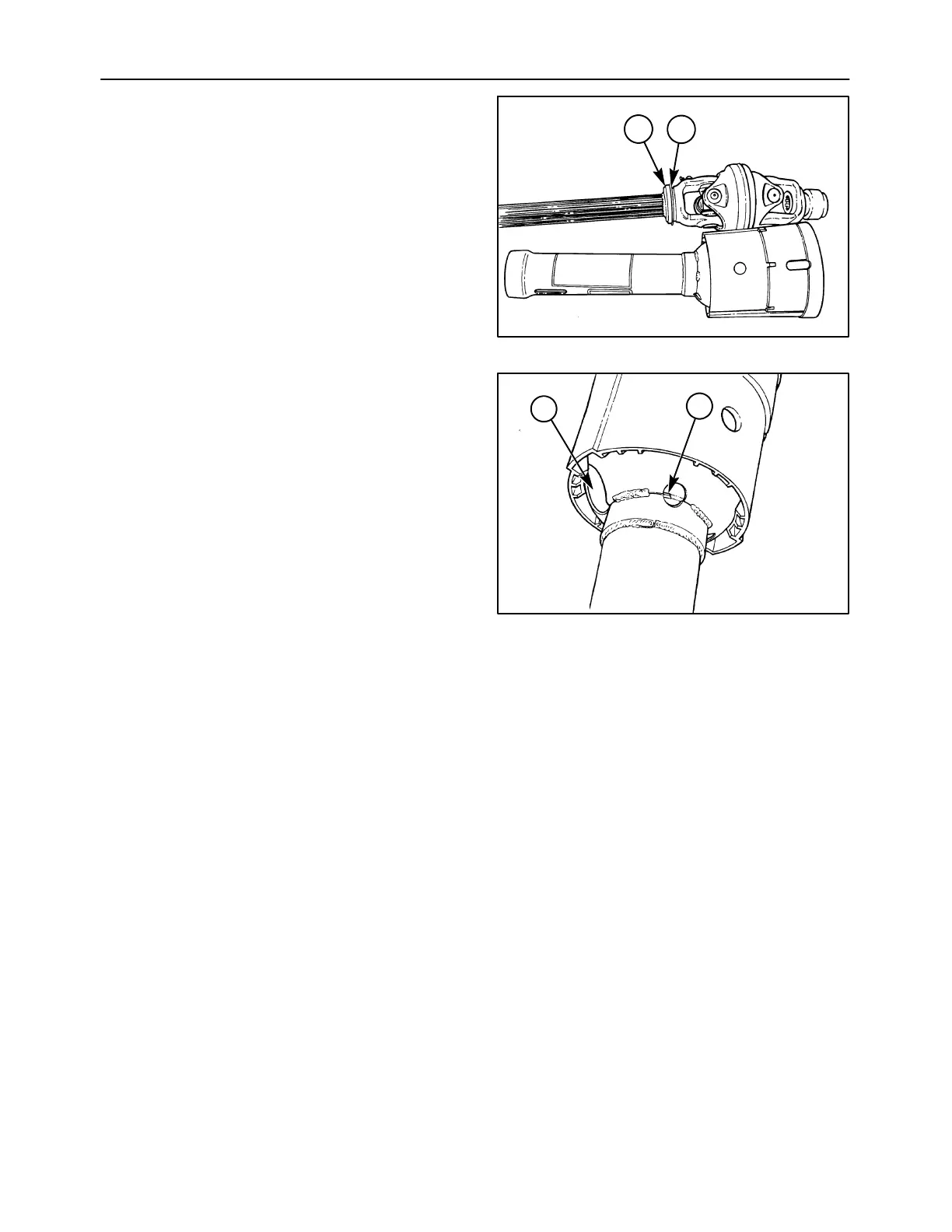

Front Guard Assembly
1. Install the nylon bushing, 1, in yoke groove; the
retaining ring, 2, should be positioned between
the CV joint and nylon bushing.
2. Slip guard over the shaft and onto the nylon
bushing; it will be necessary to align the front
portion of the guard with the CV joint center
housing, and firmly push the guard on to seat the
nylon sleeve in the guard over the center housing
of the CV joint.
3. Rotate the guard to ensure the nylon bushing is
seated properly, and rotates with the guard.
1411/3-11
1
2
22
4. Position the opening of retaining ring between
two slots in the guard. Insert a screwdriver into a
slot, 1, in guard near the end of the retaining ring,
and use it to hold the retaining ring securely.
Insert a second screwdriver into the adjacent
slot, 2, away from the open end of the retaining
ring, and push down and rearward to seat the
retaining ring into the groove in the guard.
5. Keep the #2 screwdriver in place to hold the ring
and move #1 screwdriver to the remaining slots
to finish prying the retaining ring into groove.
6. Check that the retaining ring and nylon bushing
have seated properly in the guard, and that the
guard rotates freely.
1411/3-10
1
2
23
