SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 1
58-17

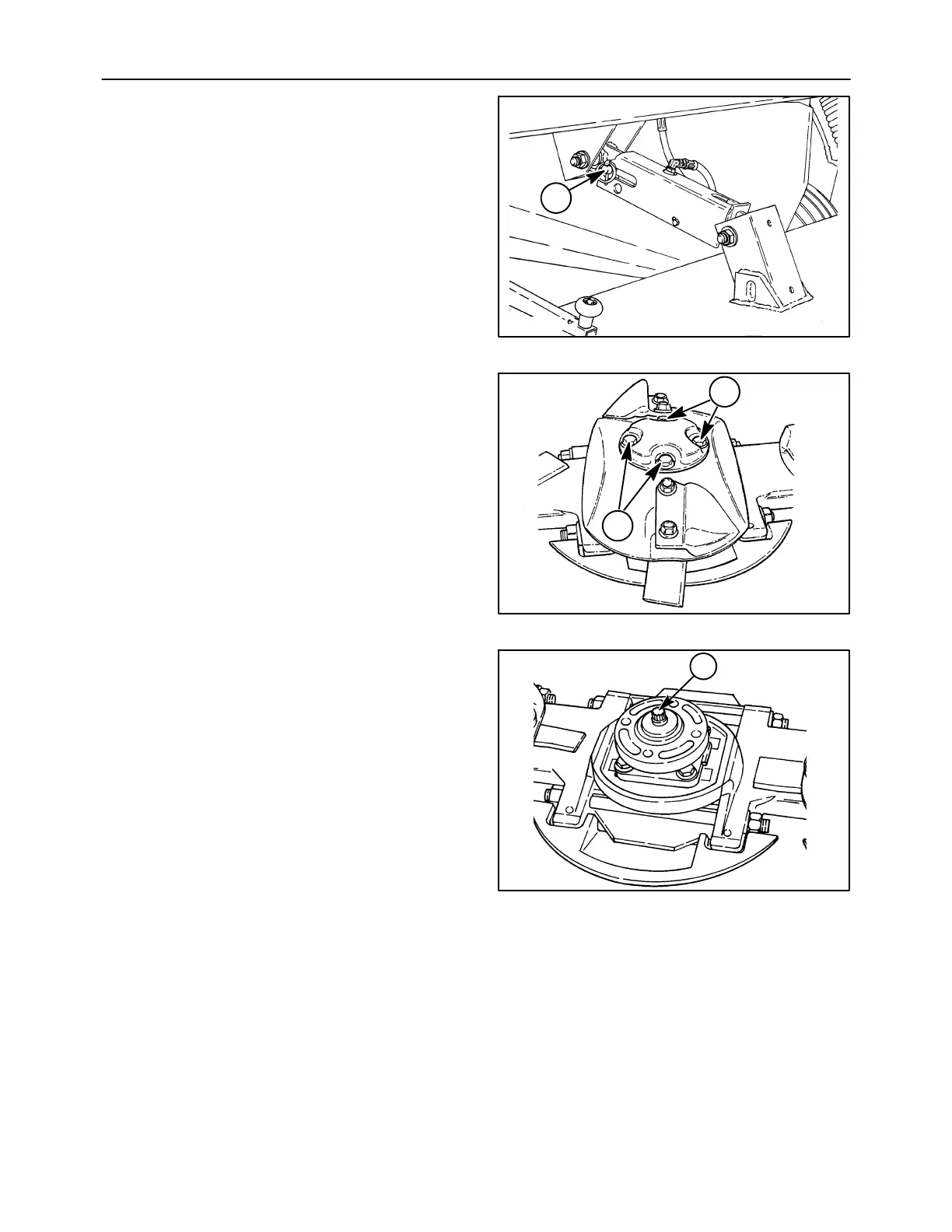

CUTTER BAR REMOVAL
The cutter bar must be removed if a lower module
assembly requires replacement or repair.
1. Raise the header and engage the transport
locks. Install the pin, 1, to lock the hydraulic
header tilt cylinder in the 2 degree position.
1
19982285
36
2. Block the cutter bar discs in place with a bar
through the right end tower to lock up the cutter
bar, and remove the disc of the module to be
removed by removing the four retaining bolts, 1,
securing the disc and cover to the disc hub.
2--48
1
1
37
3. Clean any material buildup from around the disc
hub and top cap assembly as possible. With the
cutter bar blocking still in place, loosen the disc
hub retaining bolt, 1.
1
19986023
38
