SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 1
58-16

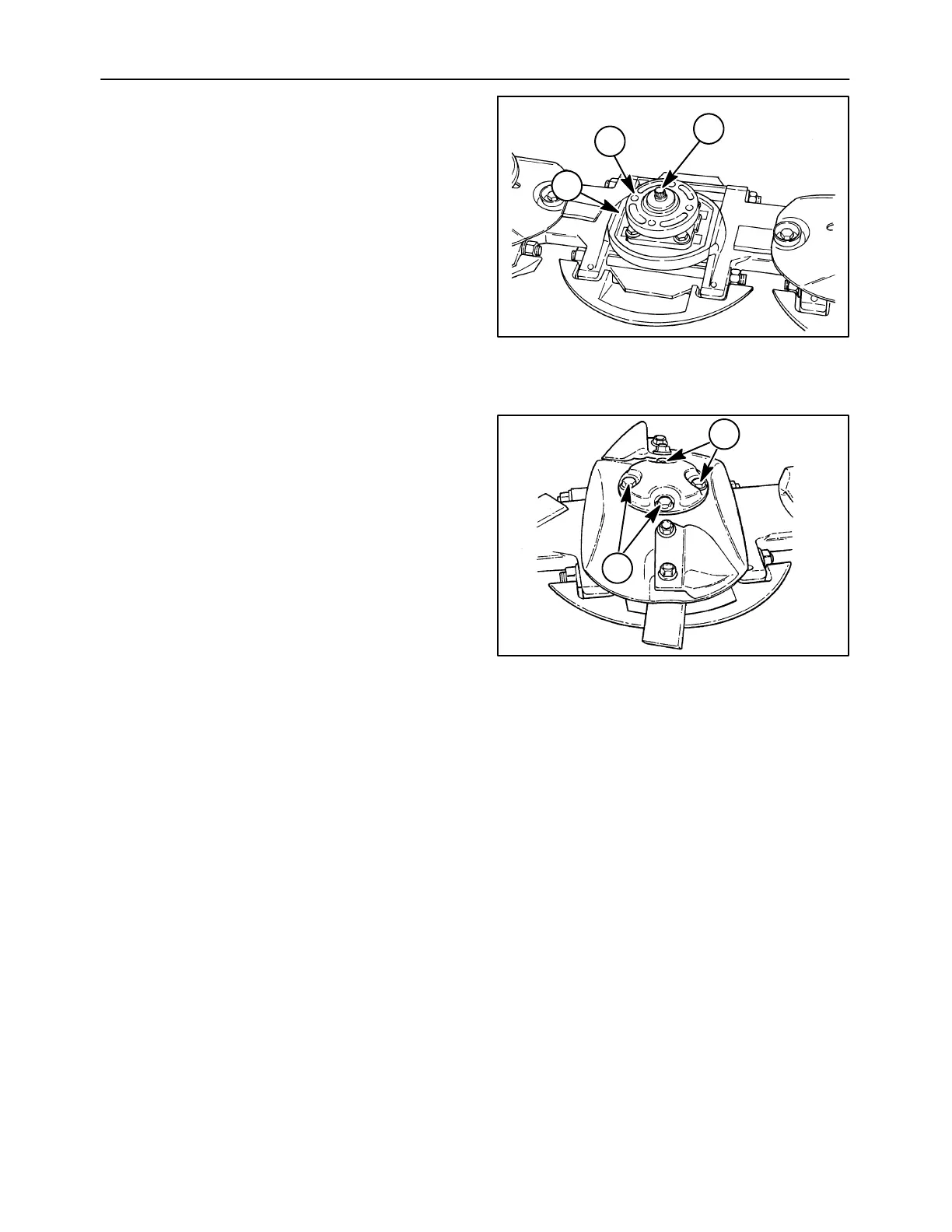

Apply a thin coating of grease to the seal lip and
surface on disc hub. Slide the disc hub onto the
top cap shaft; if it is not perfectly timed to the
adjacent discs, remove the disc hub, rotate it 90°
and reinstall it. Continue to do this until the disc
hub is properly timed; one of the four positions
will provide correct timing.
NOTE: With the adjacent discs positioned at 90
°
,the
breather, 2, should be completely visible through the
disc hub bolt hole, 3, when the hub is properly timed.
4. Apply a small amount of silicone sealant to the
end of the disc hub retaining bolt, 1, and torque
it to 224 Nám (150 ft-lb) or turn the bolt 90° after
the bolt has contacted the washer.
19986023
2
1
3
34
5. Install the disc assembly and cover, and torque
retaining bolts, 1, to 113 N⋅m (83 ft-lb).
2--48
1
1
35
