SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 1
58-23

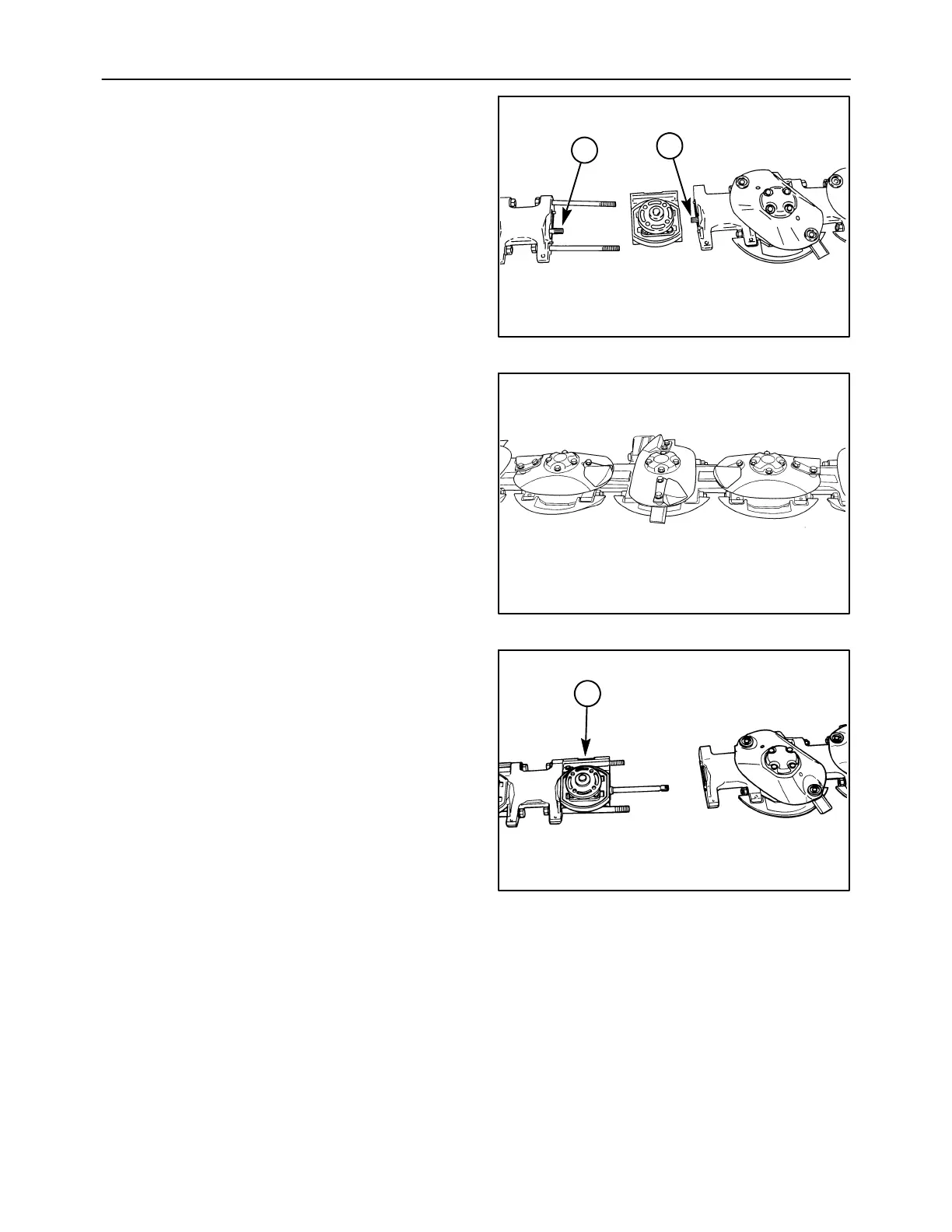

CUTTER BAR REASSEMBLY
1. Prior to reassembly, remove the connecting
shafts, 1, from both spacers, and apply special
lubricant to both ends of the shafts. Reinstall the
connecting shafts.
A3997-10
1
1
52
2. It is necessary to time the cutter bar discs on
either side of the replacement module during
reassembly to eliminate interference between
the knives. The discs are properly timed when
they are 90° apart, as shown. Rotate the discs of
the modules on either side of the replacement
module so that they are timed to each other.
19981908
53
3. Install the replacement module, 1, on one end of
the cutter bar so that the connecting shaft splines
into the pinion shaft, the tie bolts are properly
positioned and the module housing fits onto the
aligning dowels on the spacer.
A3997-11
1
54
