SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-35

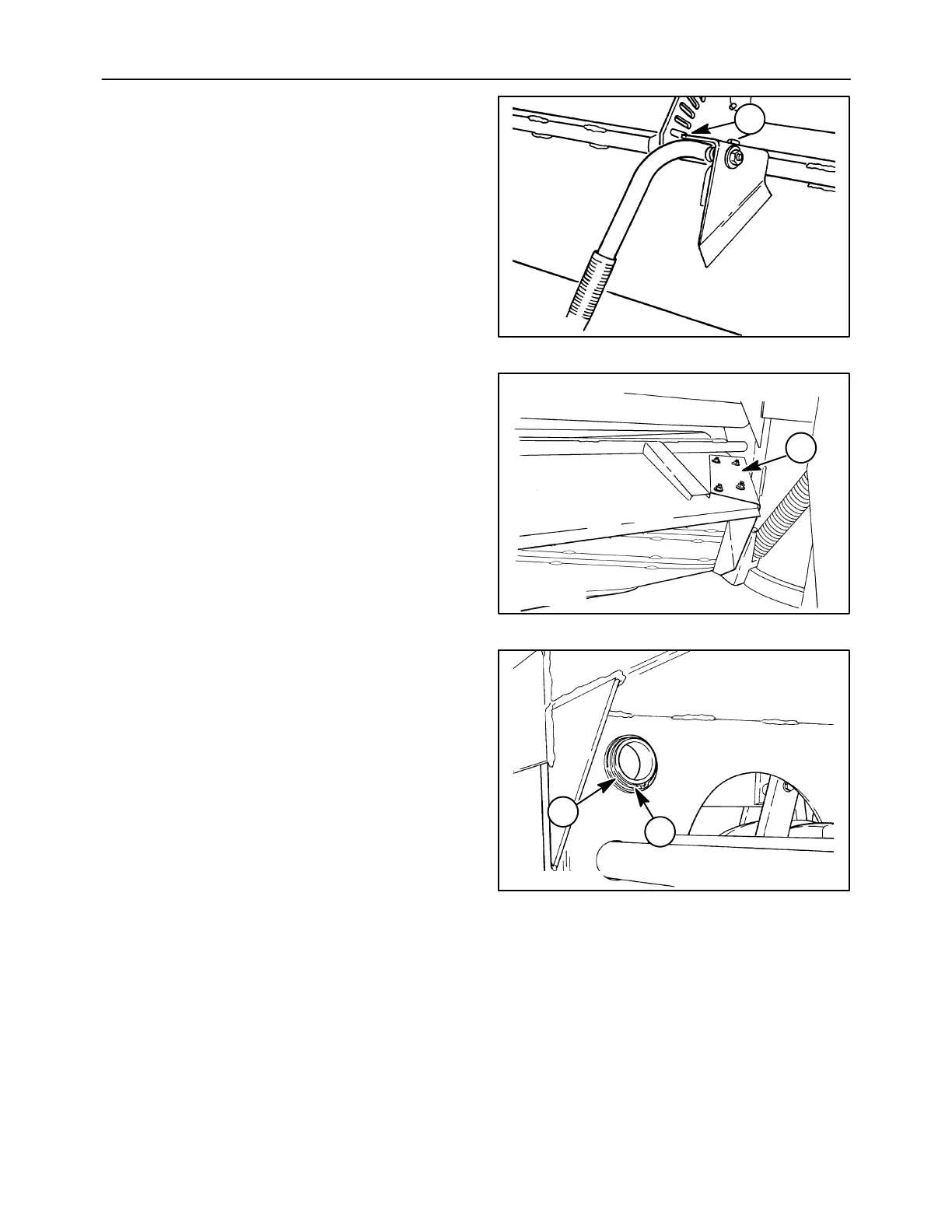

6. Reinstall the swathgate by inserting the right end
through the header frame. Lift the left end up to
align with the hole in the header frame, and slide
the swathgate to the left until the adjusting handle
clip engages a notch in the quadrant bracket, 1.
Install washers on the left end of the swathgate
tube, so that with the cotter pin installed, the
swathgate cannot move to the right, allowing the
adjusting handle to disengage from its notch.
Once the washers and cotter pin are installed on
the left side, install washers to take up the
clearance on the right side, and install a cotter pin
to secure.
A3659-14
1
94
7. Reinstall the swathgate baffle, 1, on the right end
of the swathgate using the four previously
removed carriage bolts and nuts. Insert the
carriage bolts up through the swathgate.
50012165
1
95
Left Side Torsion Arm and Bar Assembly
1. Install a new bushing in the header frame by
driving it in flush with the tube. Apply permanent
lubricant to the bushing inner surface and the
tension arm shaft, and insert the tension arm
through the frame. Retain with a washer, 1, and
snap ring, 2.
1431-7-28
1
2
96
