SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 1
58-26
DISC MODULE - DISASSEMBLY

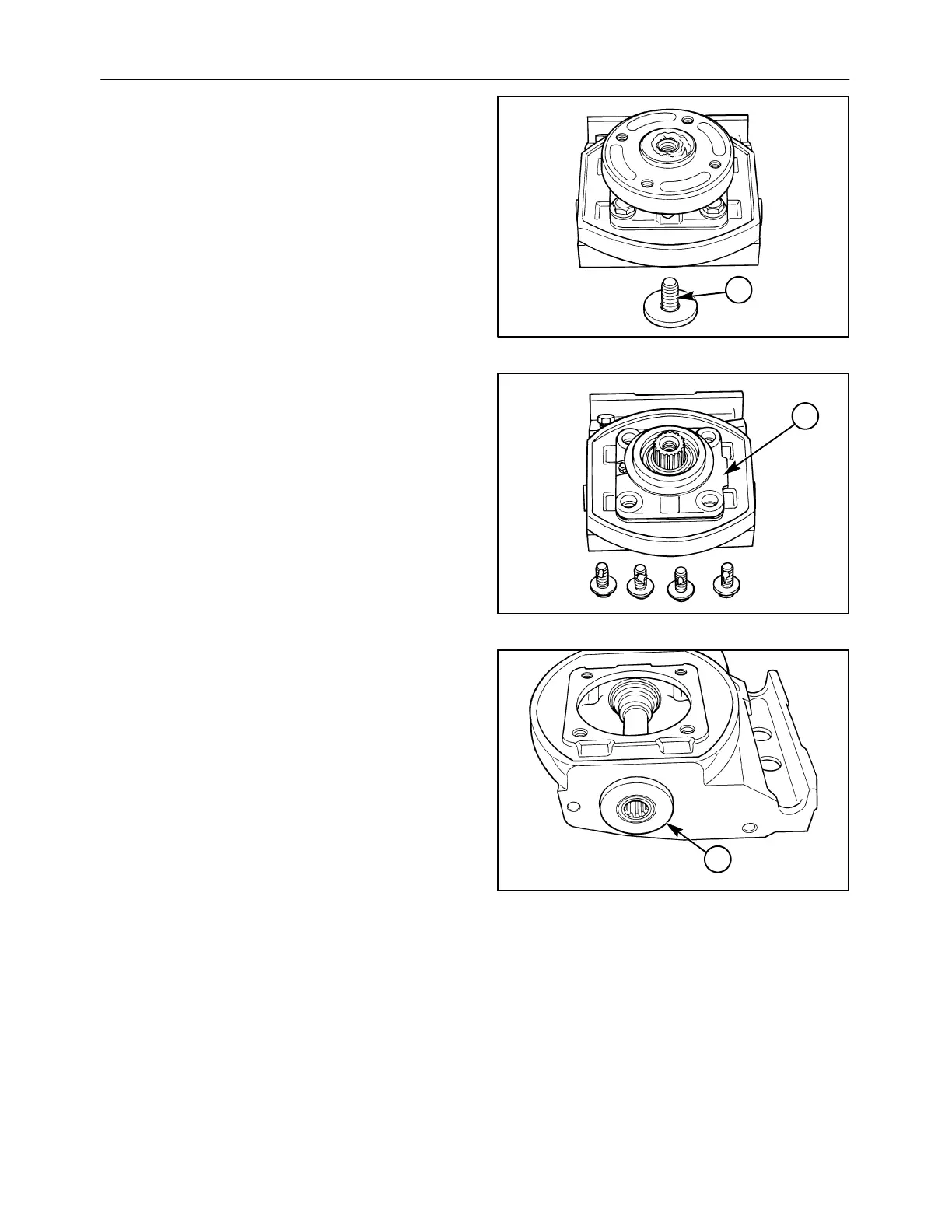

1. Remove the disc hub by removing the center
retaining bolt, 1. It will be easier to remove the
disc hub if the bolt is loosened prior to removing
the module from the cutter bar. Clean off any
material buildup on top of the module and the top
cap assembly.
NOTE: Removing the disc hub will expose the upper
bearing in the top cap assembly. Cover this area with
a cloth, or use disc bearing cover special tool to
prevent contamination from entering the bearing.
A3663-3
1
60
2. Remove the four retaining bolts and pry the top
cap assembly, 1, off the lower module.
19985741
1
61
3. Pry the seals, 1, from each side of the lower
module, using caution not to damage the shaft
surface.
A3655-2
1
62
