SECTION 00 - GENERAL INFORMATION - CHAPTER 3
00-4

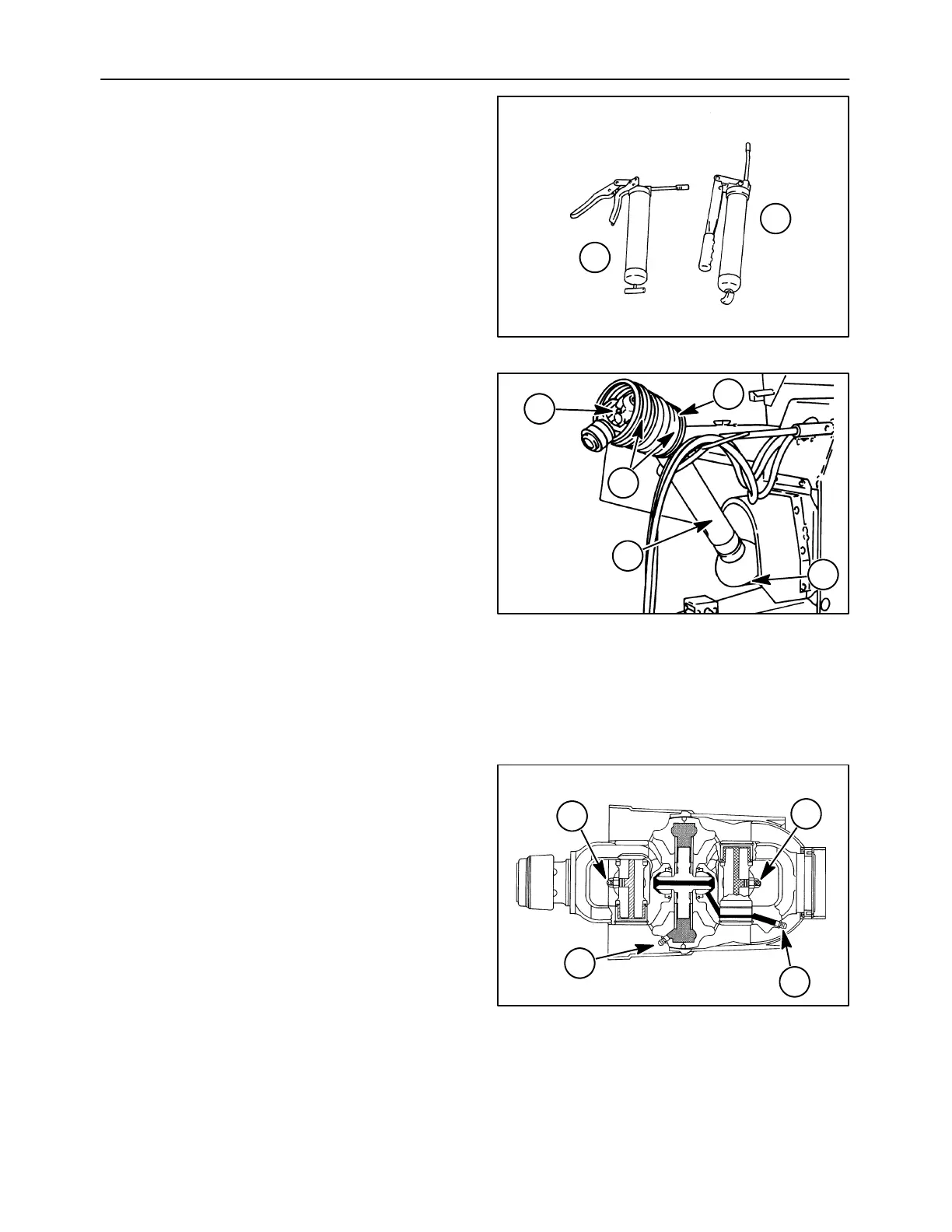

Different types of grease guns provide a different
amount of grease per pump of the handle. In general,
a pistol grip style grease gun, 1, provides half the
amount of grease per pump as a lever style grease
gun, 2. The number of pumps listed in this section are
for pistol grip style grease guns; use half the number
of pumps for lever style grease guns.
1431-2-58
1
2
1
PTO SLIDE COLLAR
Lubricate the slide collar as required with oil to
prevent rust from seizing the components.
WEASLER PRIMARY PTO -- EVERY 8
HOURS
Fittings, 1, universal joints (3 fittings) (4 -- 6 pumps)
540 and 1000 rpm.
Fitting, 2, sliding PTO shaft (1 fitting) (16 -- 20 pumps)
540 and 1000 rpm. (Every 50 hours)
NOTE: Make certain the grease is spread over the
entire length of the shaft.
Fitting, 3, CV center housing (1 fitting) (16 -- 20
pumps) 540 and 1000 rpm.
NOTE: It may be necessary to remove the PTO from
the tractor to access fitting, 3.
A4108-14
1
2
3
4
1
2
Fitting, 4, CV inner yoke flange (1 fitting) (16 -- 20
pumps) 540 and 1000 rpm.
Lubrication is extremely important to this CV joint.
The grease paths are shown for the above fittings.
NOTE: Some resistance may be felt when adding
lubricant at fitting, 4. Ensure 16 -- 20 pumps of grease
are used.
19988034
3
4
1
1
3
