SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-29

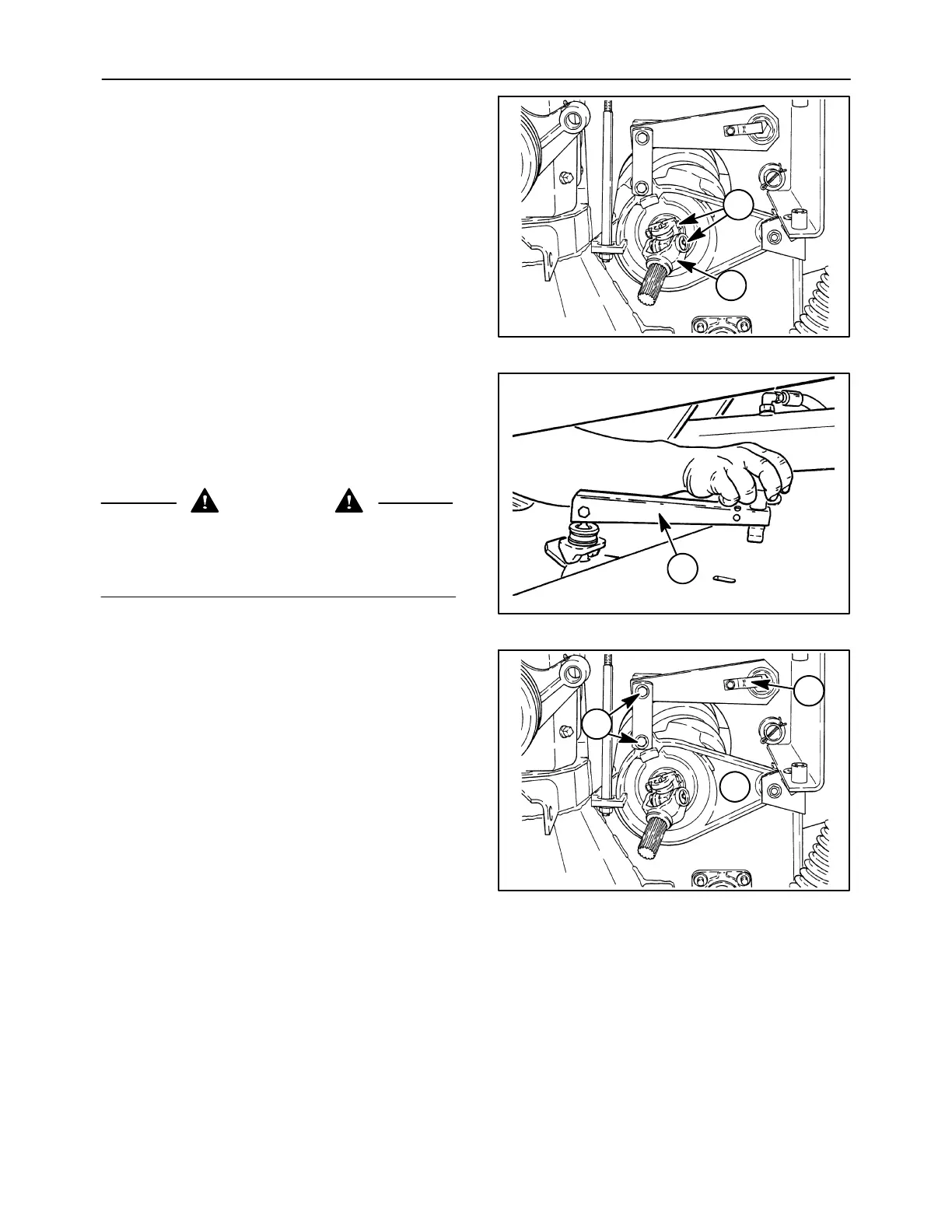

7. Install the upper conditioner roll drive shaft, 1, by
sliding the clamp yokes over the conditioner roll
shaft and gearbox shaft. Install the two bolts and
nuts in each yoke, 2, and torque to 46 Nám(34
ft-lb).
Install the lower conditioner roll. Refer to “Lower
Conditioner Roll - Installation” in this section.
A5045-3
1
2
76
CONDITIONER ROLL TENSION SYSTEM
Left Side Torsion Arm and Bar Disassembly
1. Completely loosen the roll pressure tension by
rotating the roll pressure handle, 1, counterclock-
wise until loose.
CAUTION
Failure to loosen the roll pressure may result in
sudden movement of the roll tension system
components or the upper conditioner roll,
causing injury or component damage.
A3658-3
1
77
2. Loosen and remove the bolts, 1, and spacer from
the left side roll tension arm straps to the left
upper roll pivot arm. Lower the tension arm down
onto the roll pivot arm, 2.
Loosen the retaining cap screw and move the
plate, 3, at the rear of the left side roll tension arm
downwards. Remove the tension arm.
A5045-3
1
2
3
78
