SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-22

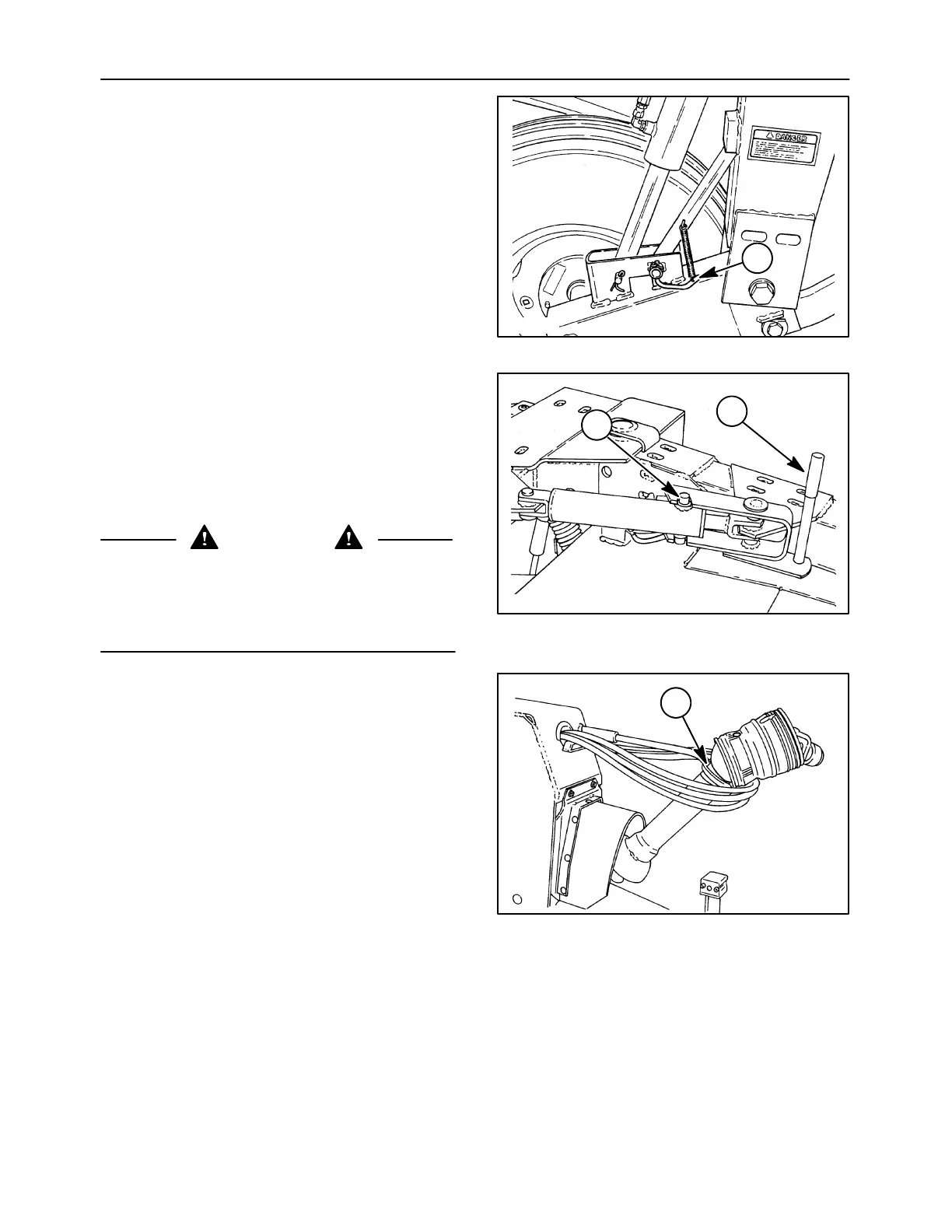

TOWING WITH A TRUCK
1. Raise the header. Engage the header lift locks by
pivoting lock levers, 1, forward. Lower the header
onto the stop blocks.
1
A3657-29
16
2. Shift the machine into the transport position.
Lock the swing cylinder by pivoting handle, 1,
forward. Be sure the lock bracket engages the
pins, 2, fully.
NOTE: Be careful; with the machine in transport,
sharp left hand turns cannot be made or damage to
the truck and machine will occur.
WARNING
Failure to engage the header lift locks and tongue
swing cylinder lock could result in the machine
dropping on the pavement or swinging to the
right into roadside obstacles or ditches if a
hydraulic failure were to occur during transport.
1
2
A3996-7
17
3. Secure the primary PTO shaft in the hanger
bracket using the attached rubber strap as
shown at 1. Loop the hoses around the PTO, and
feed the ends back into the front opening of the
tongue. Be sure the PTO shaft and hoses are
secured to prevent damage. Check for adequate
clearance between the PTO shaft and the rear of
the truck.
4. When towing the mower-conditioner on a road or
highway, use the necessary flashing lights to
adequately warn operators of other vehicles.
Consult local governmental regulations for
specific requirements.
5. Use a safety chain when transporting the unit.
The safety chain is intended to keep the machine
under control in the event of loss or failure of the
hitch pin. A safety chain is available through your
dealer.
6. Limit highway speeds to 32 KPH (20 MPH).
1
18
