SECTION 39 - FRAMES - CHAPTER 1
39-4

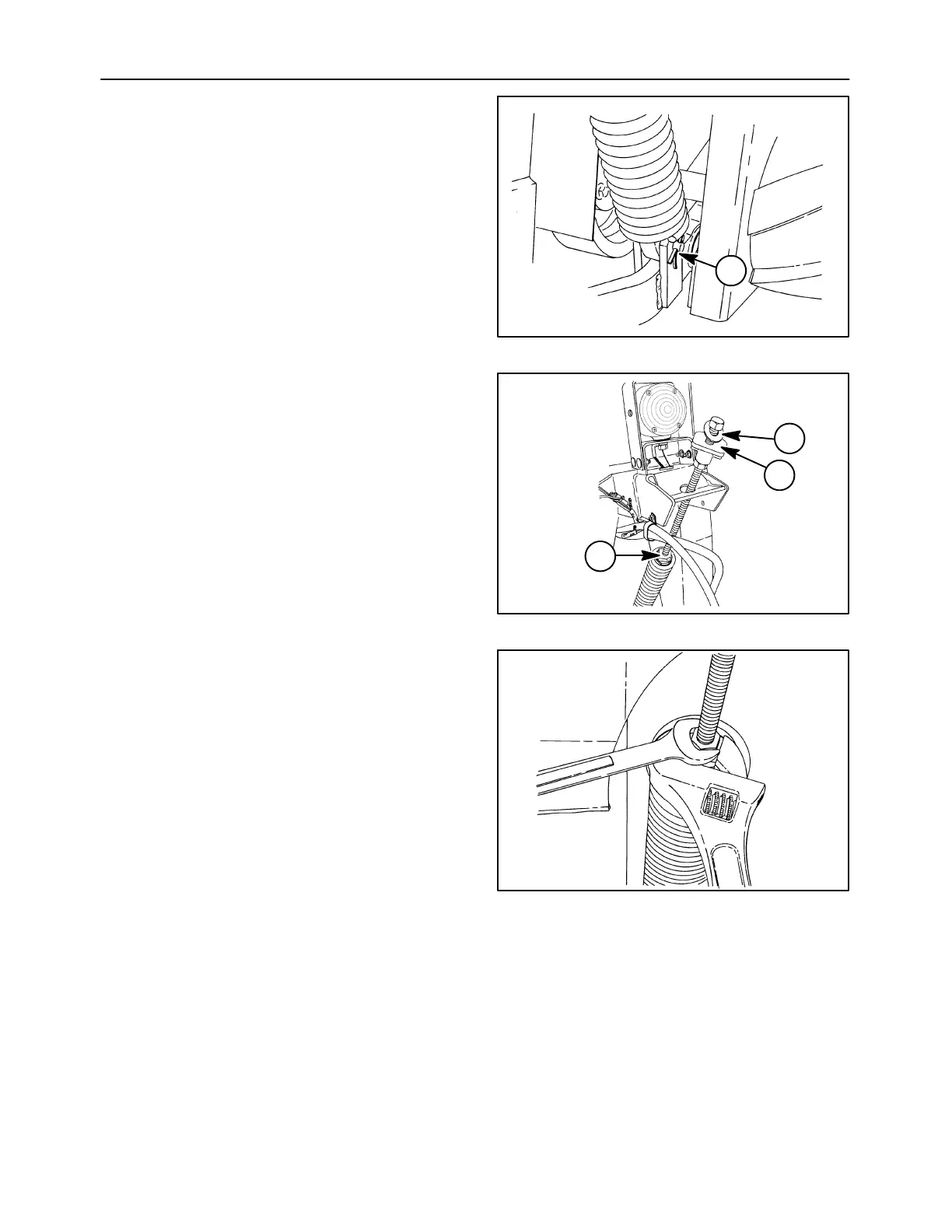

INSTALLATION
1. Place the bushing, spring assembly and spacer
on the lower hub.
2. Install the anchor and cotter pin, 1.
19992632
1
6
3. Slide the long adjusting bolt through the washer,
1, and pivot, 2, and insert it through the anchor
plate on the frame. Thread the adjusting bolt into
the top of the spring assembly, 3.
4. Tighten the adjusting bolt to the desired flotation
(see “Adjustment”).
50012167
1
2
3
7
5. Tighten the locknut against the spring nut on the
adjusting bolt.
19992629
8
