SECTION 35 - HYDRAULIC SYSTEMS - CHAPTER 1
35-9

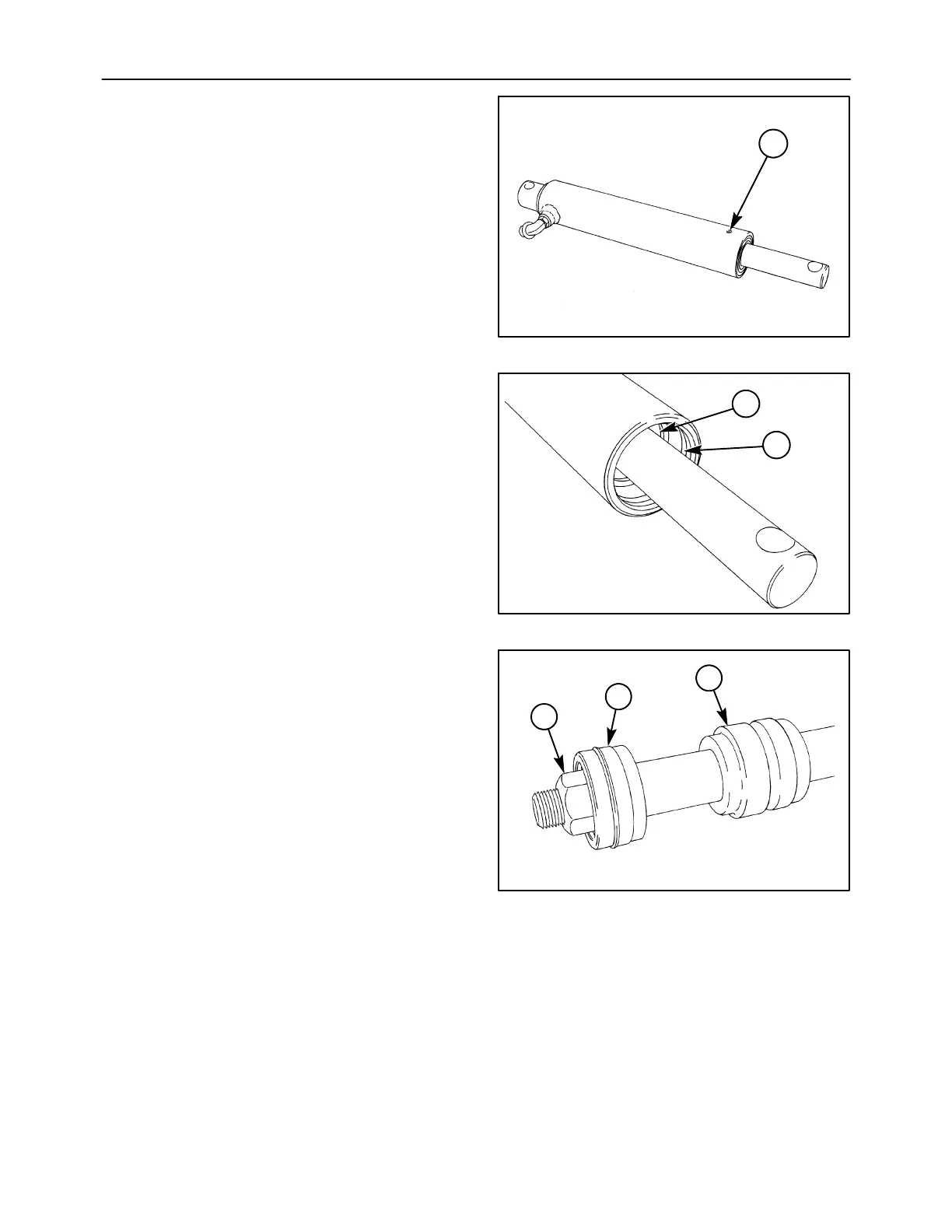

SLAVE CYLINDER
Disassembly
1. Remove setscrew, 1.
1
A1411/9-13
14
2. Tap the cylinder head, 1, into the cylinder far
enough to remove retaining ring, 2.
1
2
A1411/9-13
15
3. Pull the complete piston rod assembly out of the
cylinder barrel.
NOTE: All O-rings and seals should be replaced.
4. Capture the piston rod using a bar through the
hole in the end, and remove rod nut, 1. Slide the
piston, 2, and the cylinder head, 3, off the cylinder
rod.
A1411/9-14
1
2
3
16
Inspection
1. Examine the parts for wear or nicks. Remove any
burrs inside the cylinder.
2. Remove all seals, carefully noting the lip position
on the seals.
