SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3

58-18

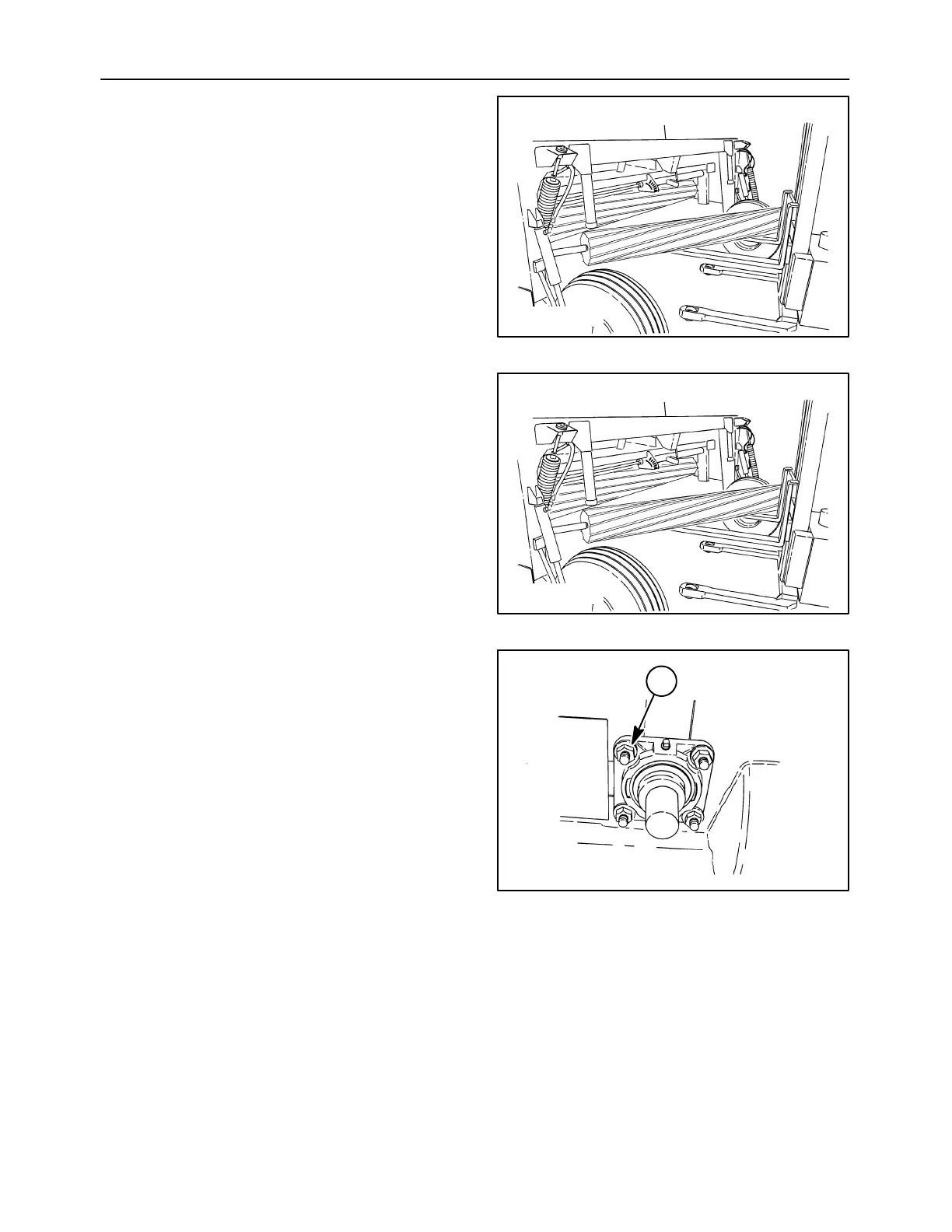

14. Using a suitable lift or floor jack to support the

conditioner roll, slide the right end of the roll to the

rear, out of the slot in header frame, and lower to

the ground. While supporting the left end of the

conditioner roll, slide the roll to the right, until the

left end of the conditioner roll is clear of the

header frame, and lower it to the ground.

50012161

LOWER CONDITIONER ROLL -

INSTALLATION

1. Position the lower conditioner roll behind the unit,

with the long-splined shaft on the left side. Using

a suitable lift or floor jack to support the

conditioner roll, lift the conditioner roll up and

slide the long-splined shaft through the bearing

hole on the left side of the header frame.

2. Slide the right end of the conditioner roll through

the slot in the frame into the bearing mount area.

50012161

3. Slide the bearing housing onto the left side

splined shaft. Lift the roll until the bearing housing

can be slid over the four bolts in the header

frame. Install lock washers and nuts to retain the

housing, and tighten securely.

Install the bearing housing on the right side by

sliding it over the shaft. Lift the roll until the

housing can be slid over the three bolts in the

header. Reach in through the slot in the header

frame and install the fourth bolt through the frame

and housing. Install lock washers and nuts on all

four mounting bolts, 1, and tighten securely to

retain the bearing housing.

19992643

Case IH DCX101 - Lower Conditioner Roll - Installation
