SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-19

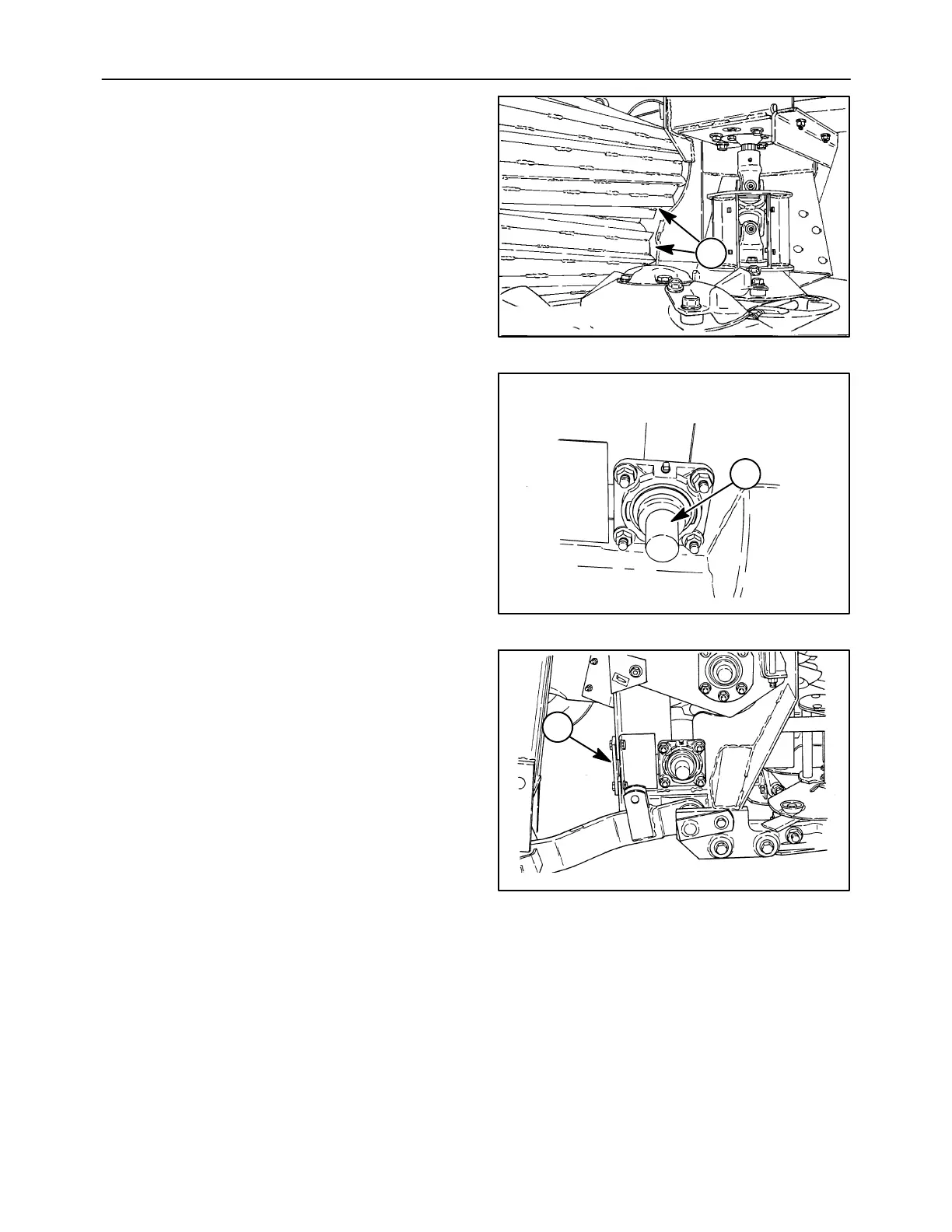

4. The lower conditioner roll must be properly
aligned with the upper conditioner roll so that the
conditioner rolls can be timed. Slide the lower
conditioner roll in the bearings until the edges of
the upper and lower conditioning rolls, 1, are
even. Once the rolls are aligned, check at both
ends of the lower conditioner roll to ensure there
is a relatively even amount of clearance between
the roll and header frame at both sides.
20011832
1
48
5. Install the lock collar onto the shaft, 1, and seat
it over the bearing flange. Tighten the lock collar
in the direction of rotation using a hammer and
punch, and tighten the set screw to secure the
lock collar. Repeat for the opposite end of the
conditioner roll.
19992643
1
49
6. Install the plates to cover the slot in the header
frame, 1, using the two previously removed bolts.
Tighten securely.
A5049-4
1
50
