SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 3
31-11
Assembly

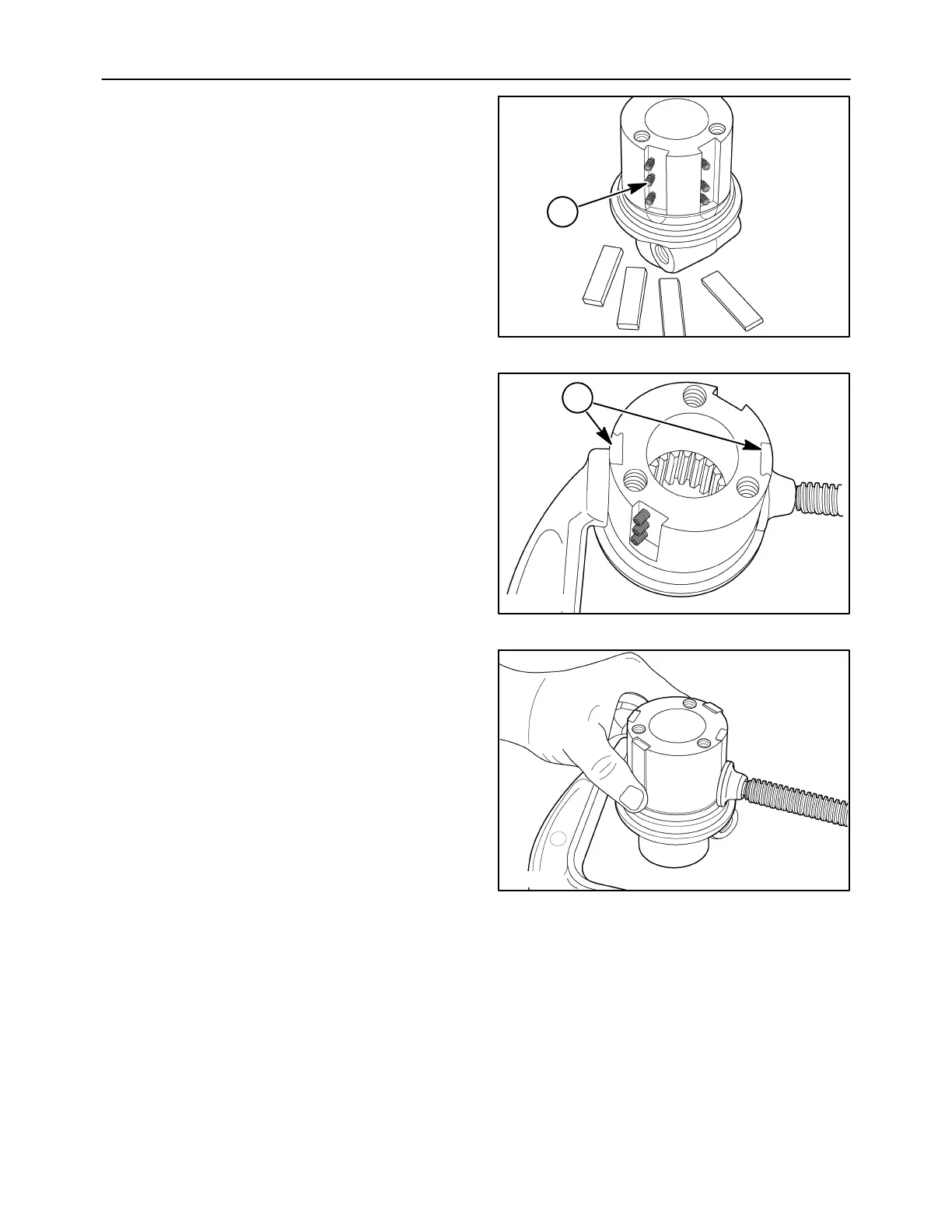

1. Lubricate the hub with grease. Insert the springs,
1.
86065282
1
23
2. Squeeze two of the keys, 1, tighten against the
hub pushing back the springs. Place a C-clamp
on the keys, near the bottom of the hub. Tighten
C-clamp to hold the keys.
NOTE: Note the orientation of the keys.
86065284
1
24
3. Squeeze the other two keys against the hub with
fingers.
86065285
25
