Case IH DCX101 - Assembly; Inspection

SECTION 35 - HYDRAULIC SYSTEMS - CHAPTER 1
35-14

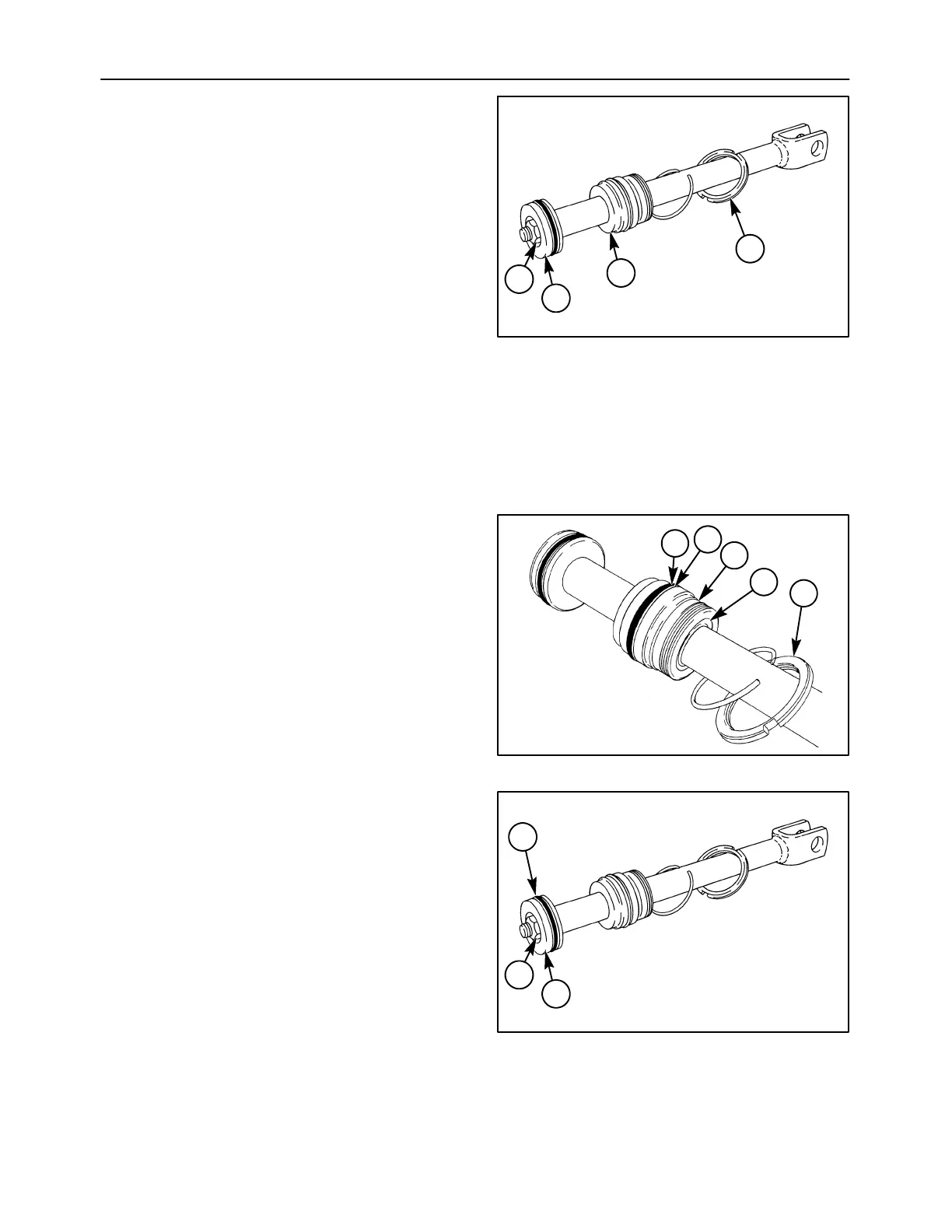

3. Pull the complete piston rod assembly out of the
barrel.
NOTE: The O-rings and seals should be replaced.
4. Capture the piston rod using a bar through the
clevis, and remove the rod nut, 1. Slide the
piston, 2, cylinder head, 3, and nut, 4, off of the
piston rod.
A1411/9-26
1
2
3
4
28
Inspection
1. Examine the parts for wear or nicks. Remove any
burrs inside the cylinder.
2. Remove all O-rings and seals, carefully noting
the lip position of the seals.
Assembly
1. Lubricate all O-rings, seals, and sliding surfaces
before assembly.
2. Slide the nut, 1, and a new retaining ring over the
piston rod.
3. Install a new rod seal inside cylinder head, 2.
Drive a new wiper seal, 3, into the outer face of
the cylinder head. Install a back-up washer, 4,
and O-ring, 5, in the outer groove of the cylinder
head, with the back-up washer towards the outer
face. Slide the cylinder head assembly over the
piston rod.
A1411/9-27
1
2
3
4
5
29
4. Capture the piston rod using a bar through the
clevis. Install piston, 2, and locknut, 1. Torque the
locknut to 353 Nám (260 ft-lb).
5. Install a new seal, 3, onto the piston.
A1411/9-26
1
2
3
30
