SECTION 35 - HYDRAULIC SYSTEMS - CHAPTER 1
35-15

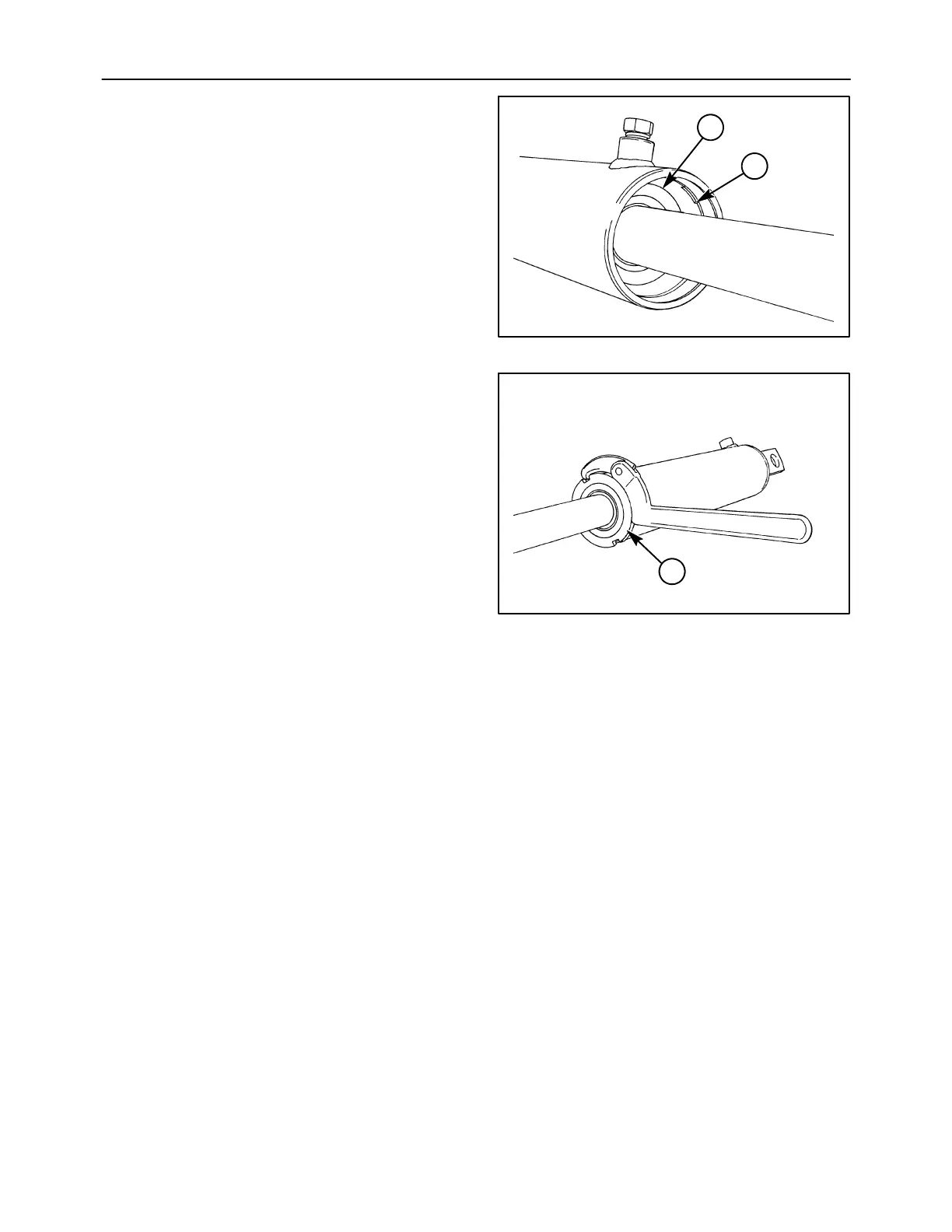

6. Lubricate the cylinder barrel with oil, and
carefully insert the complete piston rod assembly
into the barrel, 1, using caution not to damage the
seals on the retaining ring groove. Push the
cylinder head into the cylinder barrel far enough
to expose the retaining ring groove, and install
retaining ring, 2. Pull the piston rod outwards to
seat the cylinder head against the retaining ring.
A1411/9-25
1
2
31
7. Install nut, 1, and tighten it to 230 N⋅m (170 ft-lb).
A1411/9-24
1
32
