SECTION 55 - ELECTRICAL SYSTEM - CHAPTER 1
55-2
TRAILING LIGHTS

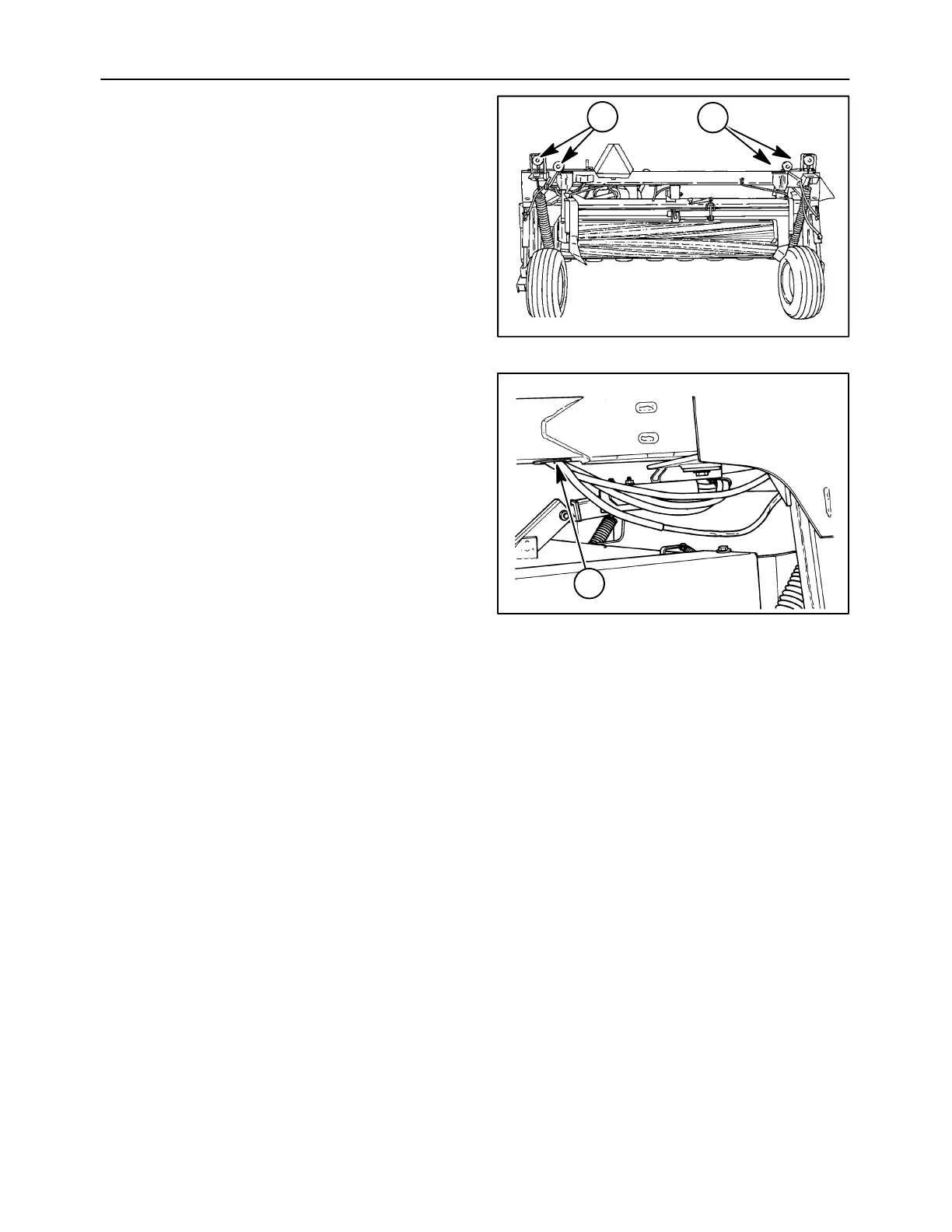

The trailing lights, 1, improve machine visibility and
warn operators of other vehicles.
The optional trailing light kit should be used when
towing the mower-conditioner on a public road, and
conforms to ASAE S279.13.
50011816
1
1
1
Installing the Wire Harness
1. Push a piece of stiff wire into the rear opening of
the tongue, 1, and out the front opening. Attach
the harness to the stiff wire, and pull it into the
tongue. Route the harness through the hose
clamps at the front and rear openings of the
tongue; do not tighten the clamps at this time.
98-213
1
2
