SECTION 00 - GENERAL INFORMATION - CHAPTER 2
00-6

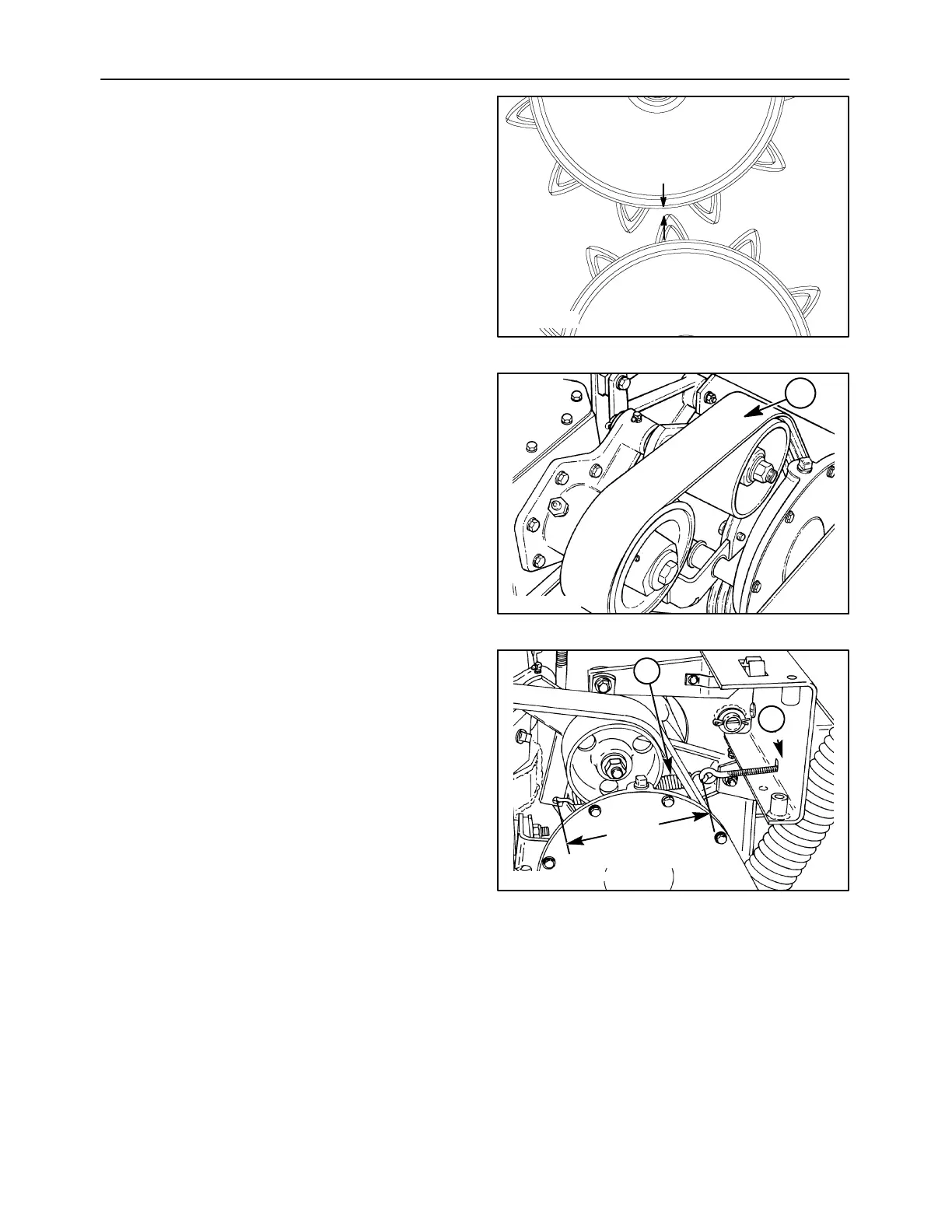

Steel Rolls
Under most crop conditions, maintain a gap of 5 -- 7
mm (3/16 -- 1/4 in) at the closest point.
NOTE: In certain cane-type crops like Sorghum,
Sudex or Sudan grass, it may be necessary to
increase the roll gap in order to feed the crop through
the rolls and/or prevent over-conditioning of the
stalks.
50011826
5--7mm
(3/16 -- 1/4 in)
8
CONDITIONER BELT
The conditioner belt, 1, must be properly tensioned
at all times to prevent excessive slipping. A loose belt
may cause conditioner rolls to wrap or plug.
Check the belt tension each day for the first few days.
Check weekly thereafter.
A3659-19
1
9
The conditioner belt is tensioned by a spring. The belt
is properly tensioned when the spring, 1, is tightened
to a length of 279 mm (11 in) between the hooks.
Loosen nuts, 2, tighten the inner nut to stretch the
spring and relock the nuts.
A3994-9
1
2
279 mm
(11 in)
10
