DISC MODULE - ASSEMBLY

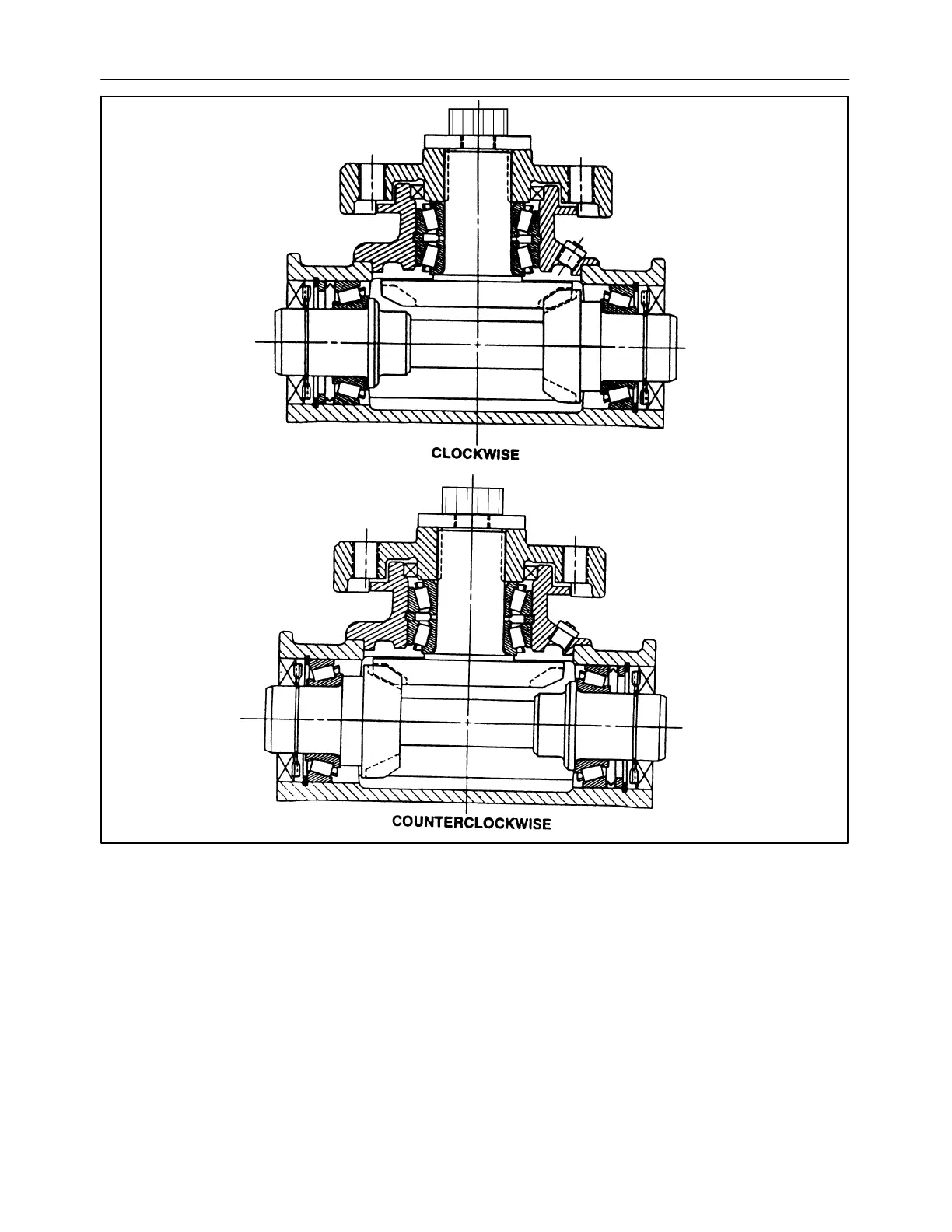

Disc modules can be assembled for clockwise or
counterclockwise rotation of the disc. Before
assembling a disc module it must be determined at
which cutter bar location the disc module will be used
to ensure it is assembled for proper rotation. When
looking at a disc module from the rear, a
counterclockwise module will have the pinion gear
on the left side, and a clockwise module will have the
pinion gear on the right side.
The direction of rotation of an assembled module can
be determined by looking at the ends of the lower
module shaft; the pinion end of the shaft has a
shallow groove in the end to identify it.
