SECTION 35 - HYDRAULIC SYSTEMS - CHAPTER 1
35-6

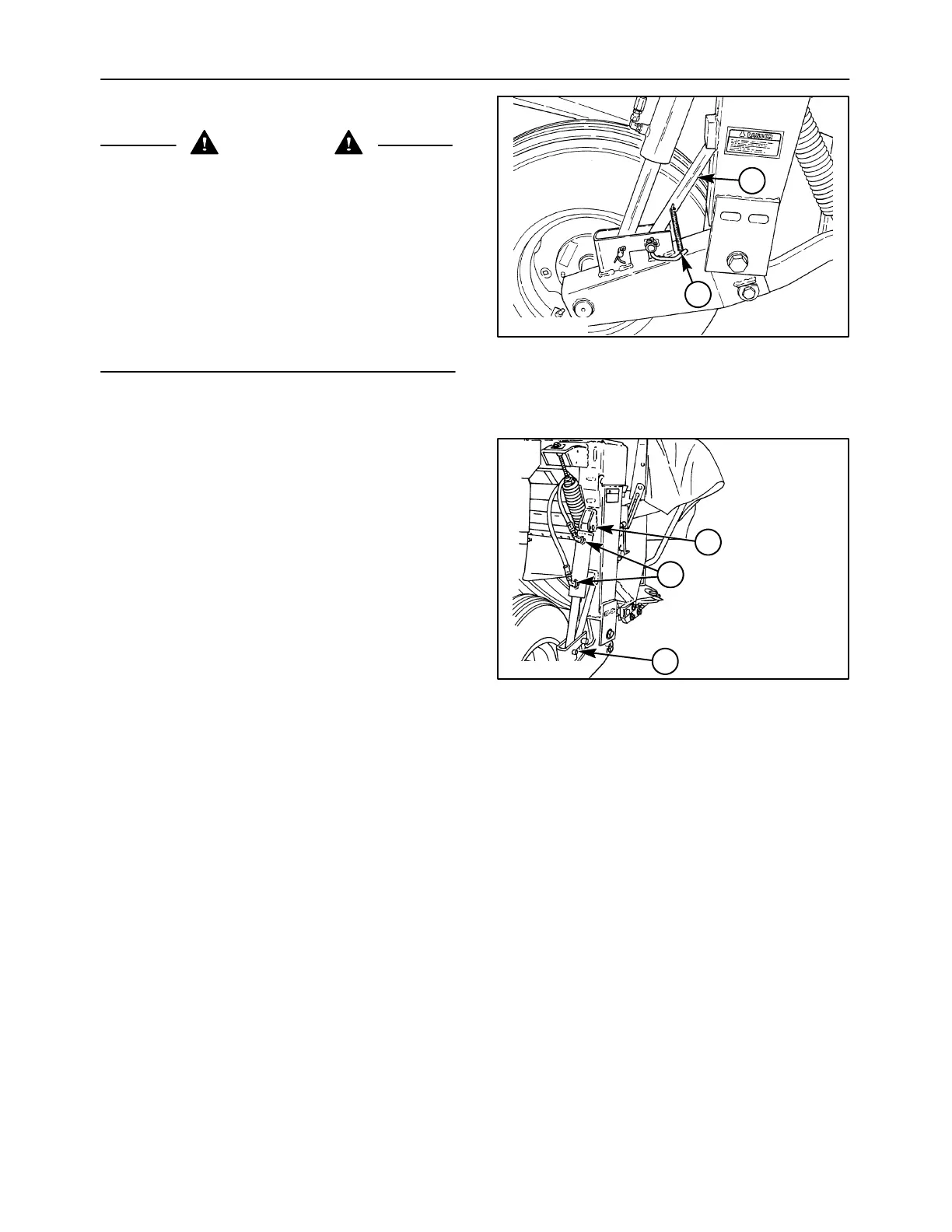

LIFT CYLINDER REMOVAL
WARNING
Before attempting to remove the lift cylinders:
1. Raise the header with the tractor hydraulics.
2. Engage the header transport locks, 1. Install
the pin, 2, figure 3, to lock the header tilt
cylinder in the 2 degree position.
3. Lower the header so the weight is carried on
the transport lock links, 2.
A1411/9-13
1
2
6
1. Remove the hoses, 1, at the cylinder ports to
remove either of the two cylinders.
2. Remove pins, 2 and 3, to remove the lift cylinder.
NOTE: The right side is shown. The left side is
similar.
A1411-36
3
1
2
7
