SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 1
31-18
Secondary PTO Assembly
At the clutch end of the PTO.

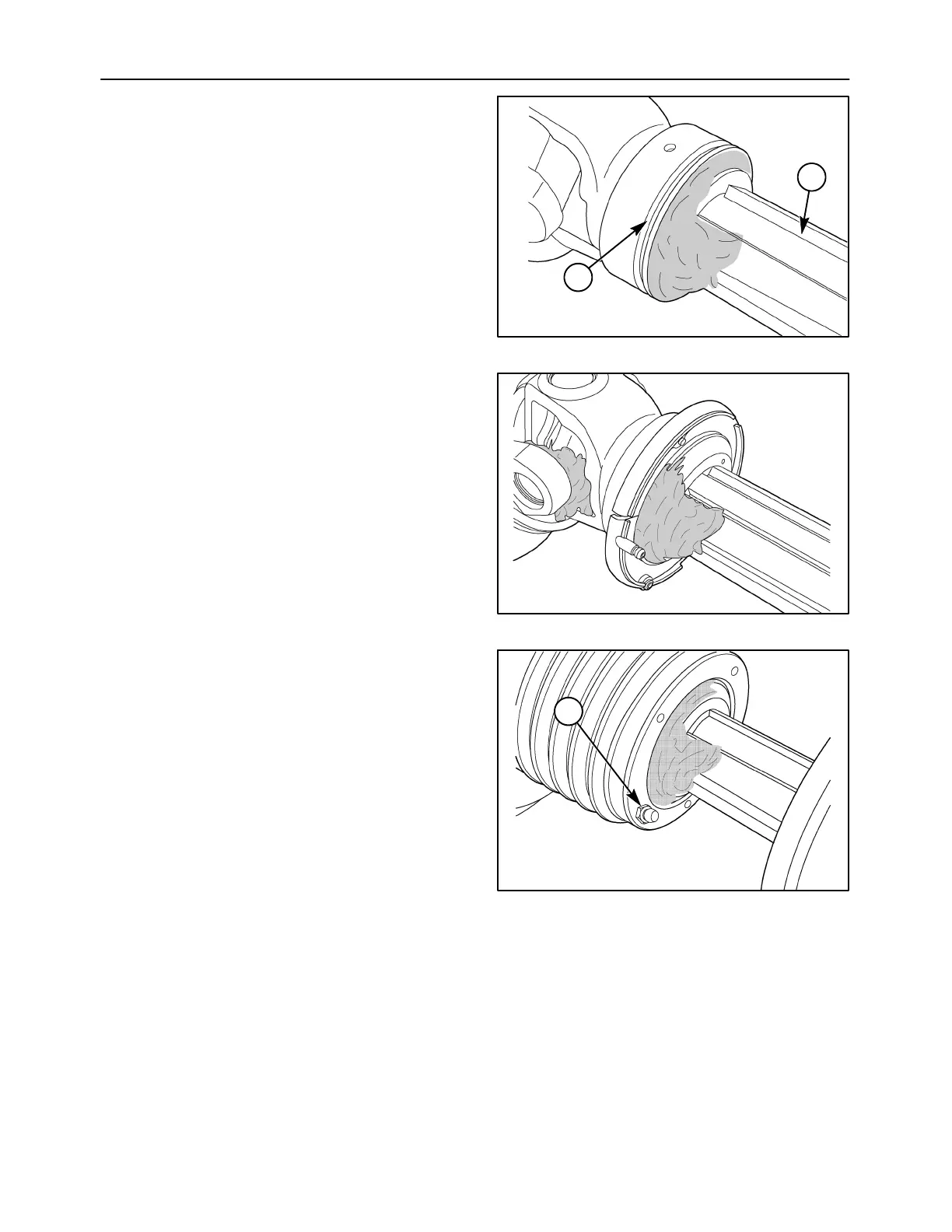

1. Lubricate the support ring groove, 1, with grease.
2. Lubricate the male PTO shaft, 2, with grease.
86065258
1
2
45
3. Place the support ring back on to the groove.
86065257
46
4. Slide the cone shield back on to the shaft
covering the CV joint. Position the cone shield so
that the grease fitting, 1, on the support ring is
protruding from its relative hole in the cone
shield.
For the opposite end, repeat steps number 1, 3 and
4.
86065256
1
47
