SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 1
58-18

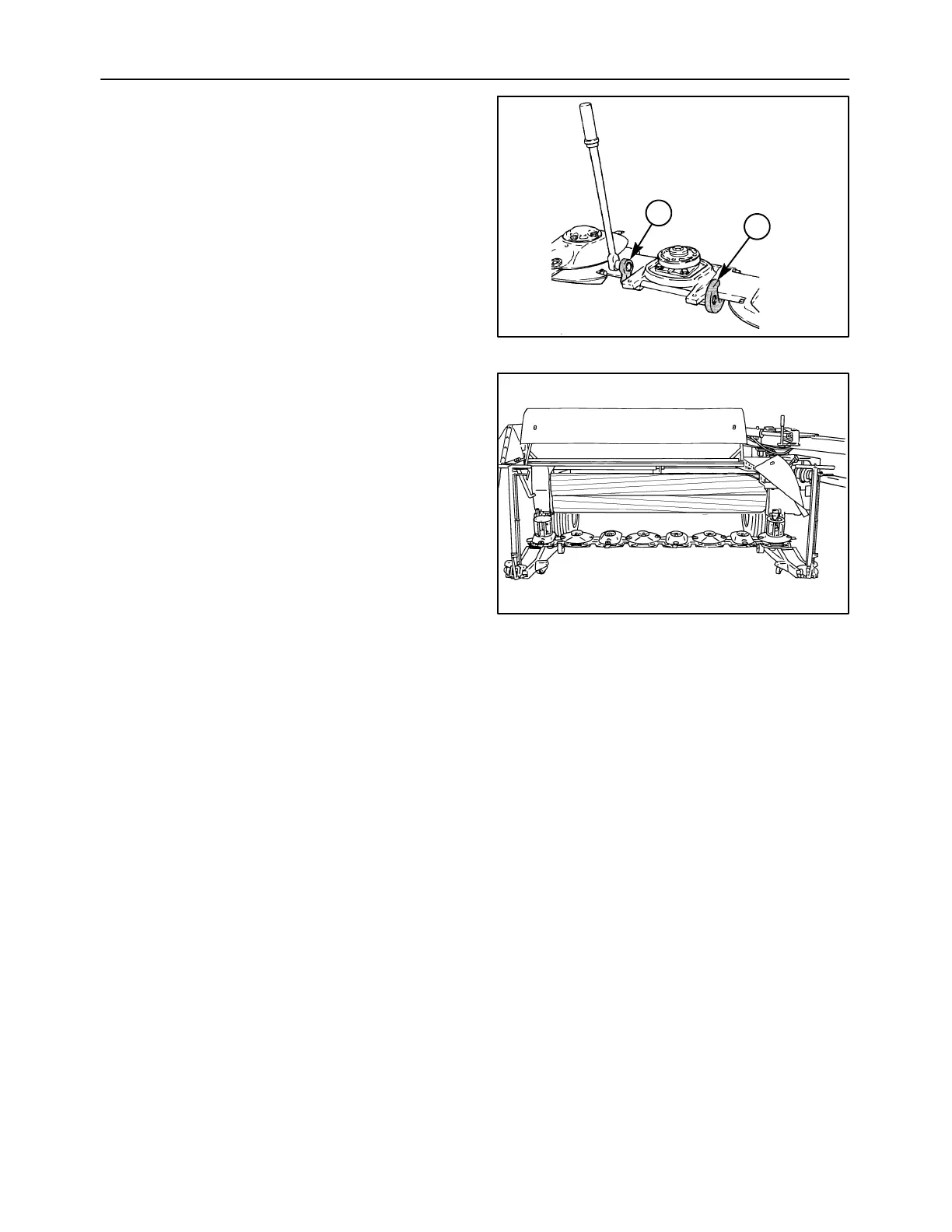

4. The tie bolts clamping the spacers to the disc
modules are extremely tight, and are easier to
loosen while the cutter bar is still clamped in the
header frame. To gain access to the tie bolts,
remove the rock guard and skid shoe from the
module to be removed. Loosen the tie bolts by
installing the special holding tools, 1, on one end
of each tie bolt. Use special wrench attachment,
2, with a 3/4″ breaker bar to loosen the tie bolts
1/2 turn total by turning the front and rear nuts
alternating one flat at a time.
1
2
39
5. Place a floor jack under each end of the cutter
bar.
50012160
40
