SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-6

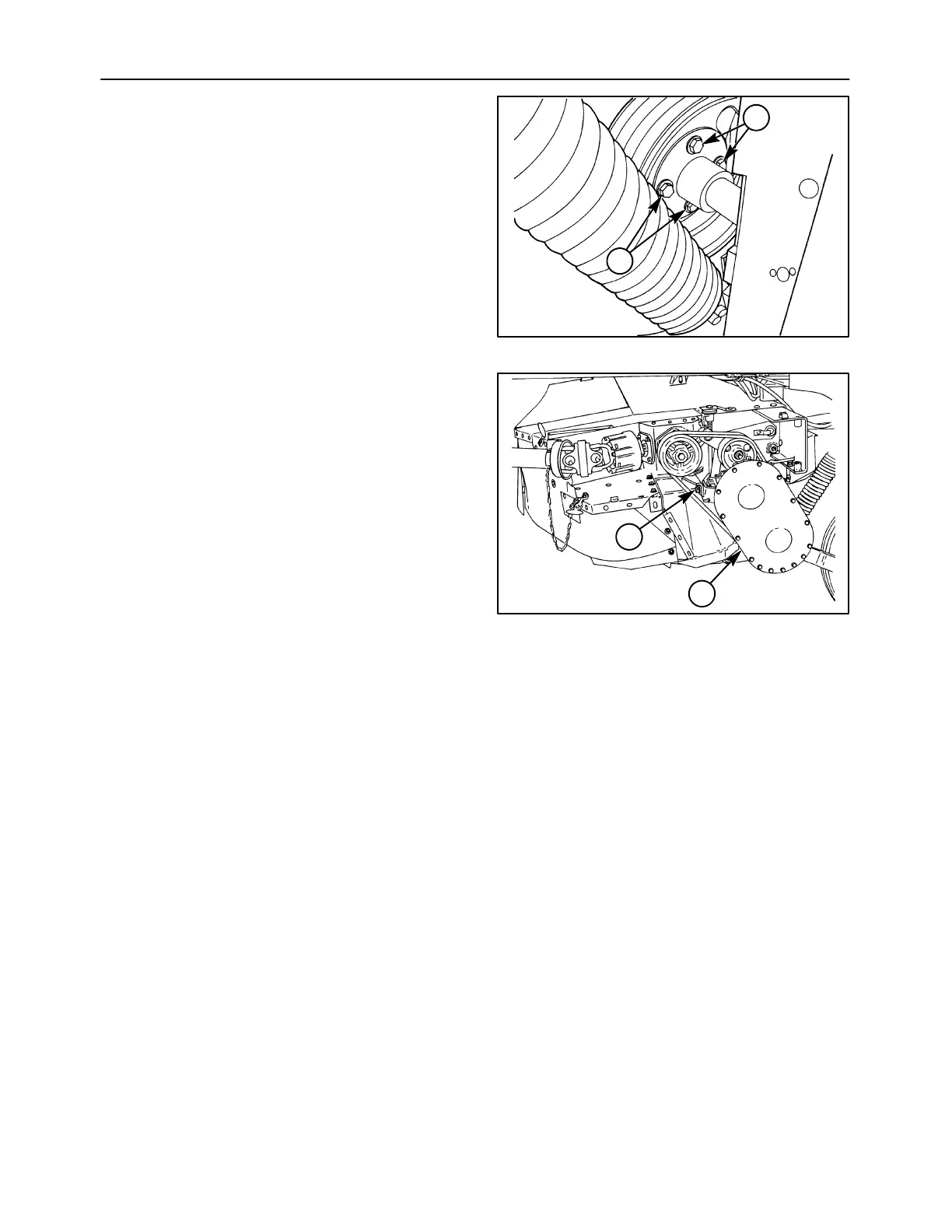

4. Remove the four cap screws, 1, and washers that
retain the gearbox shaft flange to the lower
sheave.
NOTE: Leave one cap screw partially threaded in to
support bottom of gearbox.
A3662-4
1
1
11
5. Remove the cap screw, 1, three flat washers and
locknut from the upper gearbox mount.
6. Carefully support gearbox, 2, and remove
remaining lower flange cap screw. Pull the
gearbox straight away from the unit; the upper
roll drive will slide apart allowing gearbox
removal.
IMPORTANT: The conditioner roll gearbox is heavy
and awkward; use caution not to drop the gearbox as
personal injury or damage to the gearbox may result.
A4132-1
1
2
12
