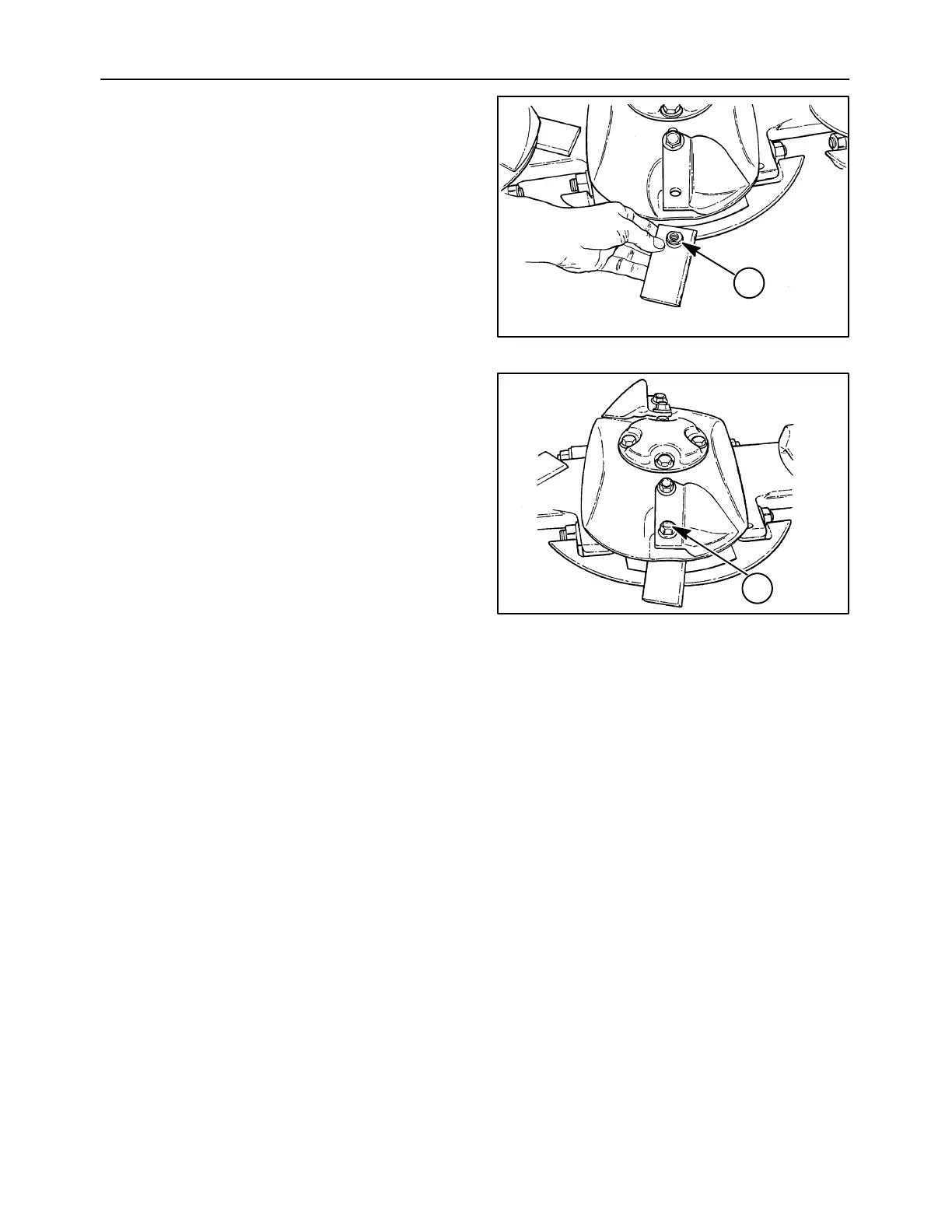

7. Install the nut through the knife and insert the nut,
1, into the bottom of the discs aligning it with the
slot in the disc.
NOTE: Crop lifter removed for clarity.
2--46
1
15
8. Install the capscrew, 1, and tighten to 163 N⋅m
(120 ft-lb).
NOTE: After all knives are installed, turn the cutter
bar by hand and check to be sure all knives are
installed in the right direction and there is no
interference.
2--48
1
