SECTION 35 - HYDRAULIC SYSTEMS - CHAPTER 1
35-2

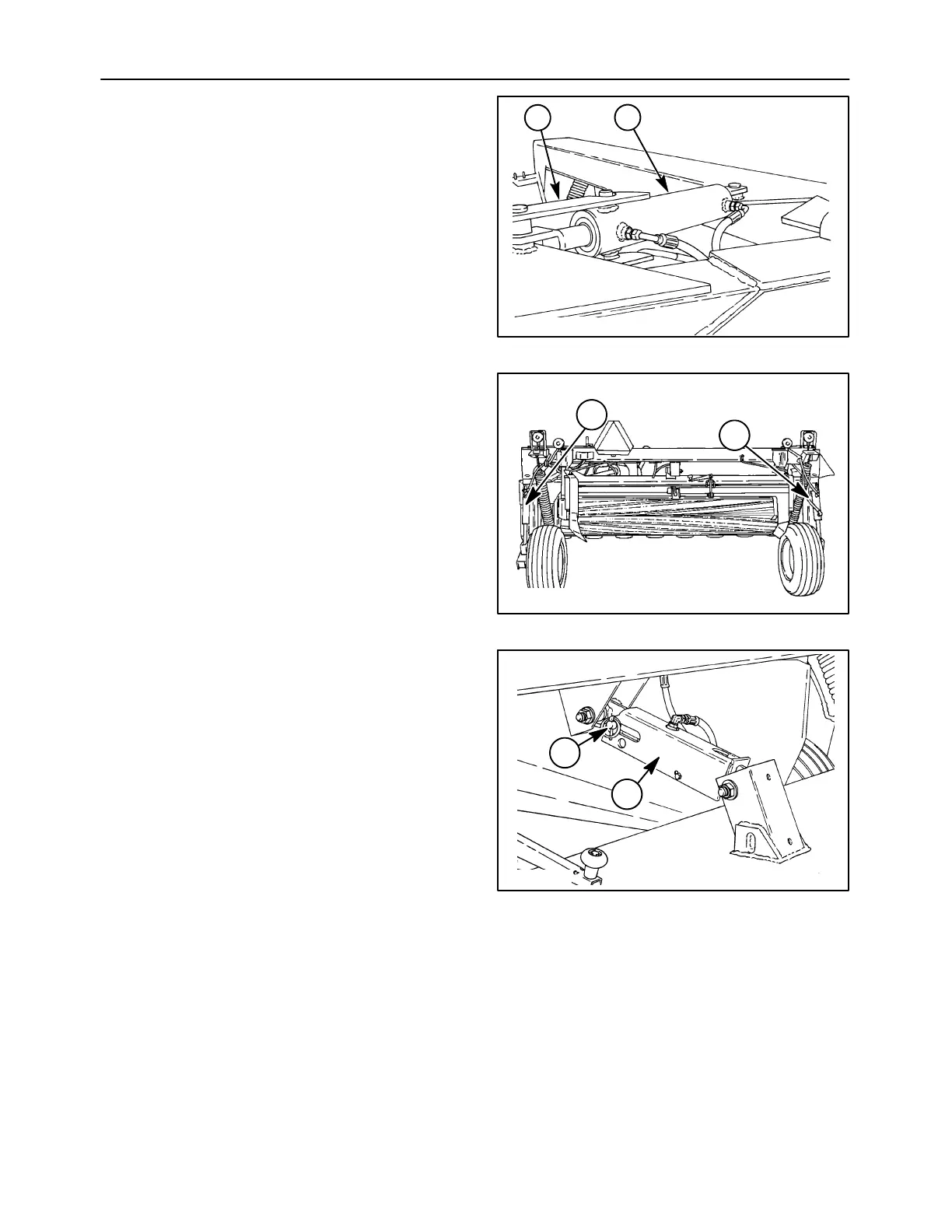

Four different cylinders are used on the disc
mower-conditioners. The tongue shift cylinder, 1, is
a double-acting cylinder, with a screw-in orifice to
control the speed of stroke. A mechanical transport
latch, 2, is used to prevent accidental actuation of the
cylinder.
A1411-28
12
1
The right lift cylinder, 1, is a master cylinder that
supplies oil to the left lift cylinder. The left cylinder, 2,
operates as a slave cylinder.
1
2
50011816
2
The header tilt cylinder, 1, is teed into the pressure
line between the tractor and the master lift cylinder,
and is a single acting cylinder. Mechanical transport
latches are used to prevent accidental lowering of the
header, while a pin, 2, is used to control the stroke of
the header tilt cylinder.
1
2
19982285
3
