SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 2
58-6

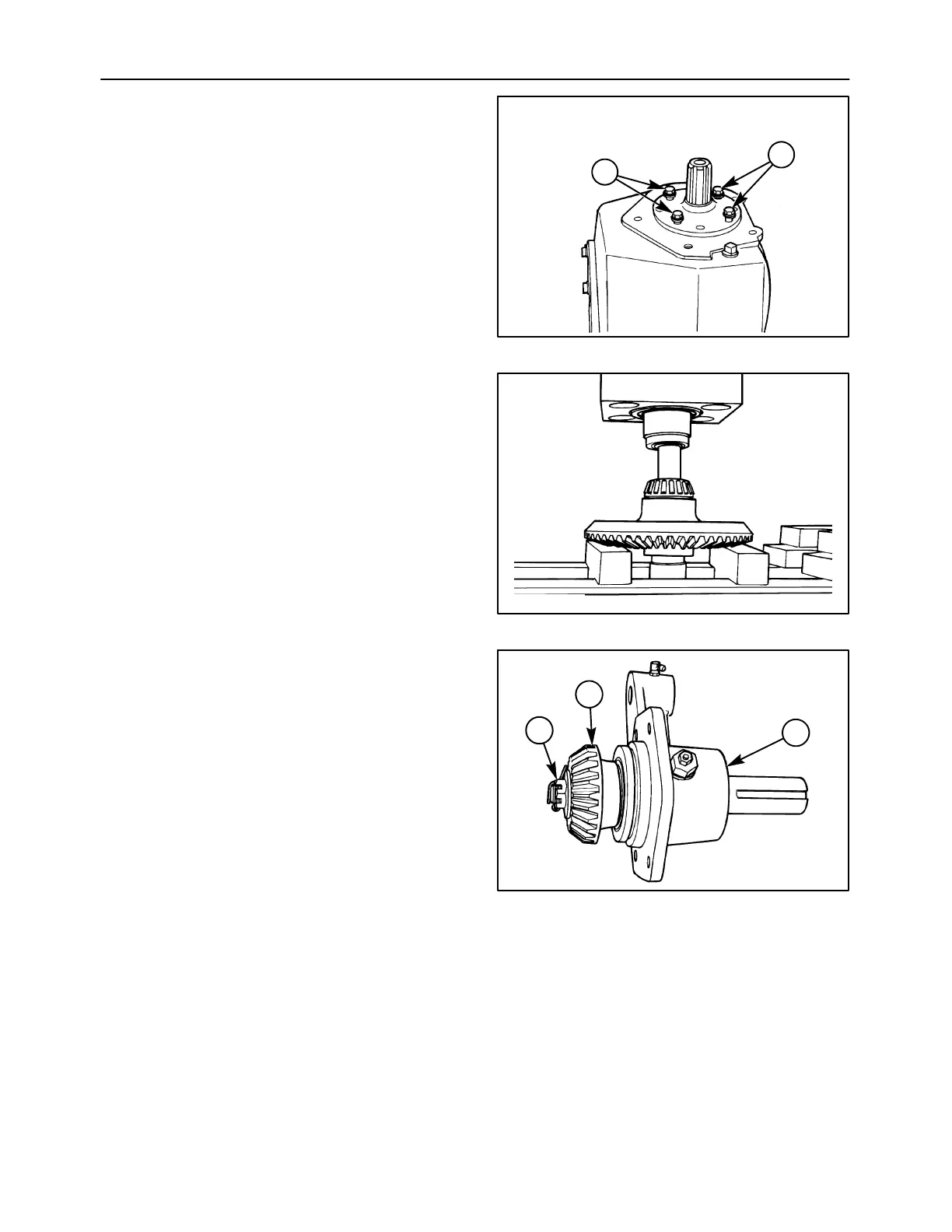

7. Tip the gearbox over, and remove the four cap
screws, 1, and lock washers retaining the
anti-wrap shield and bearing cap on the output
shaft. Remove the anti-wrap shield, and pry off
the bearing cap, being careful not to damage the
shims. Remove the output shaft by pulling it out
of the gearbox housing.
1411/6-11R
1
1
12
8. Disassemble the input shaft by positioning it in a
press, and push the shaft out of the gear and
bearing. The gear is mounted on a straight spline
on the shaft. After removing the gear and bearing
on one side, flip the shaft over, and press off the
opposite gear and bearing.
9. Use a split bearing puller to capture the bearings
on the output shaft, and press them off.
1411/6-5
13
10. Remove the cotter pin, castellated nut, 1, and flat
washer from the conditioner drive shaft assem-
bly; slide the gear, 2, off of the shaft.
11. Reinstall the castellated nut onto the shaft
backwards, and position the assembly in a press.
Press the shaft out of bearing and housing.
NOTE: The shaft seal, 3, will be damaged when the
shaft is pressed out, and must be replaced.
12. Use a split bearing puller to remove the
remaining bearing on the conditioner drive shaft.
1411/6-6
1
2
3
14
