SECTION 88 -- ACCESSORIES - CHAPTER 1
88-2
HIGH STUBBLE KIT
The high stubble kit is intended to provide a higher
cutting height for clipping pastures, or for crops
where a higher stubble height is desirable. Cutting
height is approximately 127 mm (5 in) at 2 degrees
cutter bar tilt to approximately 89 mm (3-1/2 in) at 10
degrees cutter bar tilt.

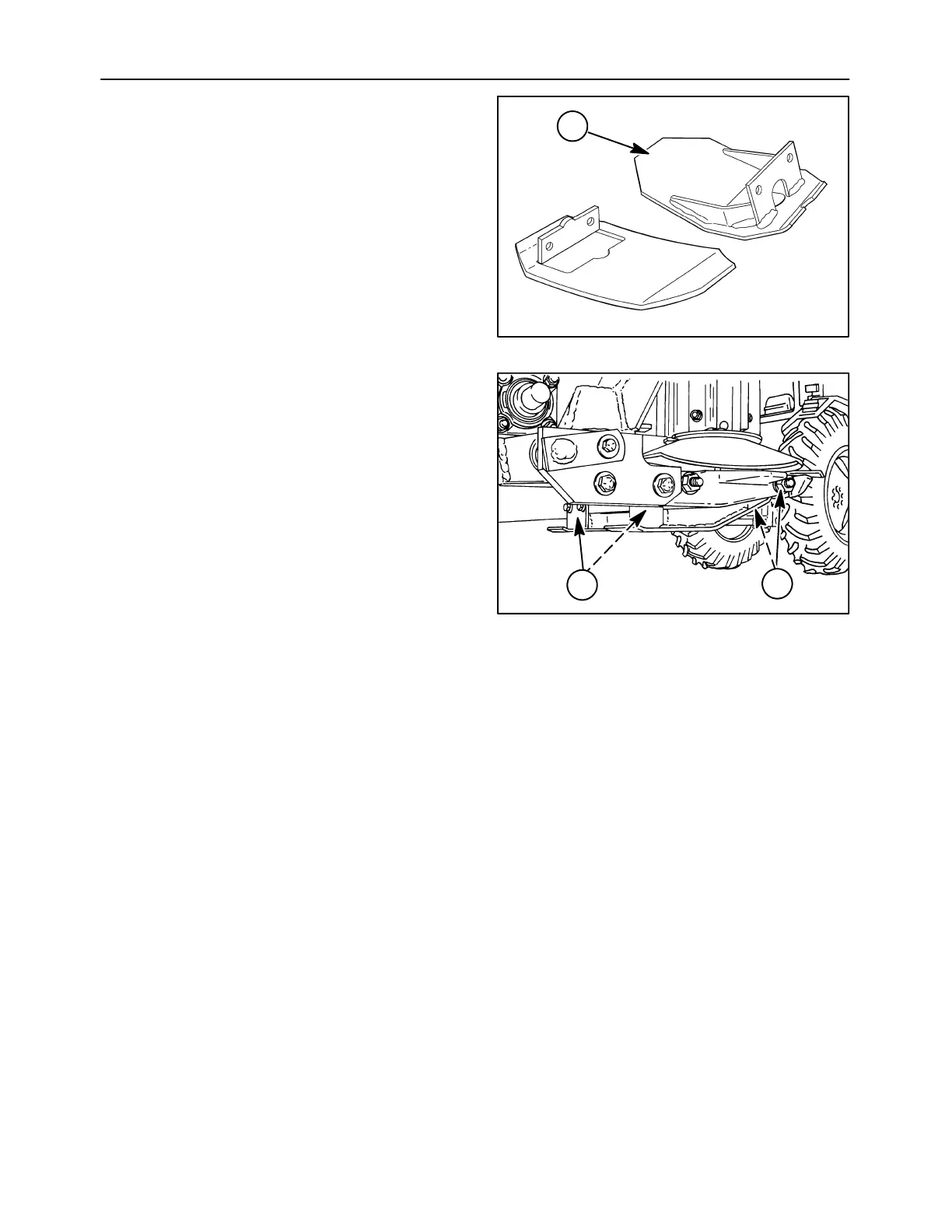

The high stubble kit consists of eight high skid shoes,
1. All eight skid shoes should be installed to minimize
shoe wear and provide proper flotation of the cutter
bar.
56062327
1
1
To install the high skid shoes, remove the standard
skid shoes by removing the two 1/2″ x1-1/4″ cap
screws and cupped lock washers at the back of each
disc module, 1. Install the high skid shoe by inserting
the front edge into the gap in rock guard, and lift the
skid shoe up to align the bolt holes. Reinstall the cap
screws and lock washers, and torque to 113 Nám(83
ft-lb).
NOTE: It may be easier to install the skid shoe by first
loosening the rock guard mounting bolts, 2.
After installing the high stubble kit, it will be
necessary to readjust the header flotation. Refer to
the “Operation” section of this manual for detailed
information on cutter bar flotation.
1411-07
2
1
2
