SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 1
31-3

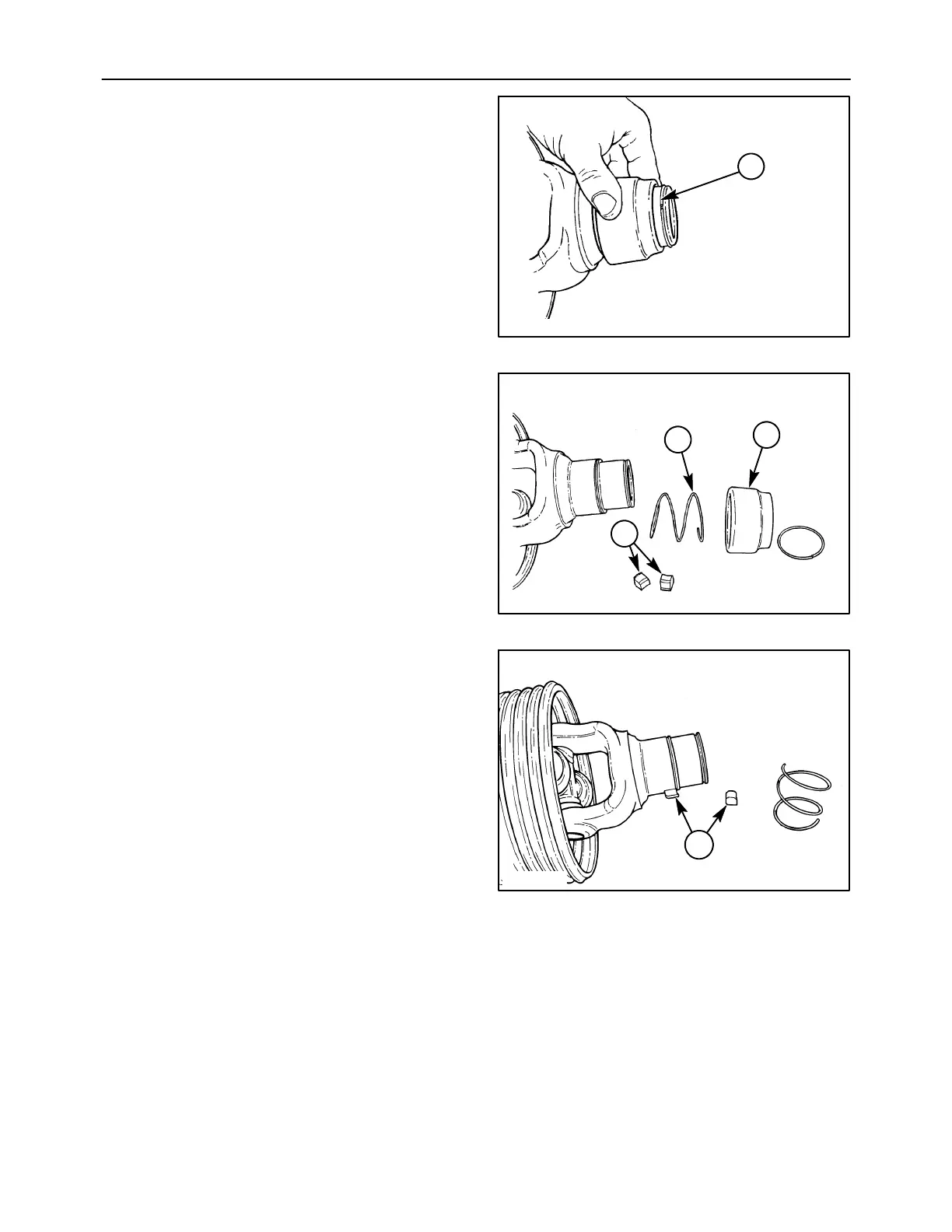

Slide Lock -- Disassembly
1. Pull back the collar to expose the retaining ring,
1. Use a screwdriver or spring pick to remove the
retaining ring from the barrel.
1411/3-1
1
3
2. Slide the collar, 1, off of the yoke, and remove the
spring, 2.
NOTE: The spring is an interference fit, and will have
to be worked off the yoke.
3. Remove the pawls, 3, by reaching into the yoke
bore and pushing the pawls outwards, so that
they can be grabbed and removed.
4. Clean the bore and pawl holes. Replace the yoke
if damage or excessive wear is found.
1411/3-2
1
2
3
4
Slide Lock -- Assembly
1. Push new spring over barrel up to shoulder.
NOTE: One end of spring has a smaller diameter
than the other. Be sure small diameter of spring is up
against shoulder on yoke.
2. Insert pawls, 1, into square holes, positioning
them so that the lip on the pawl faces into the
groove in barrel. Pawls must slide freely up and
down, and must be flush with the top of the barrel.
1411/3-3
1
5
