ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
47
3

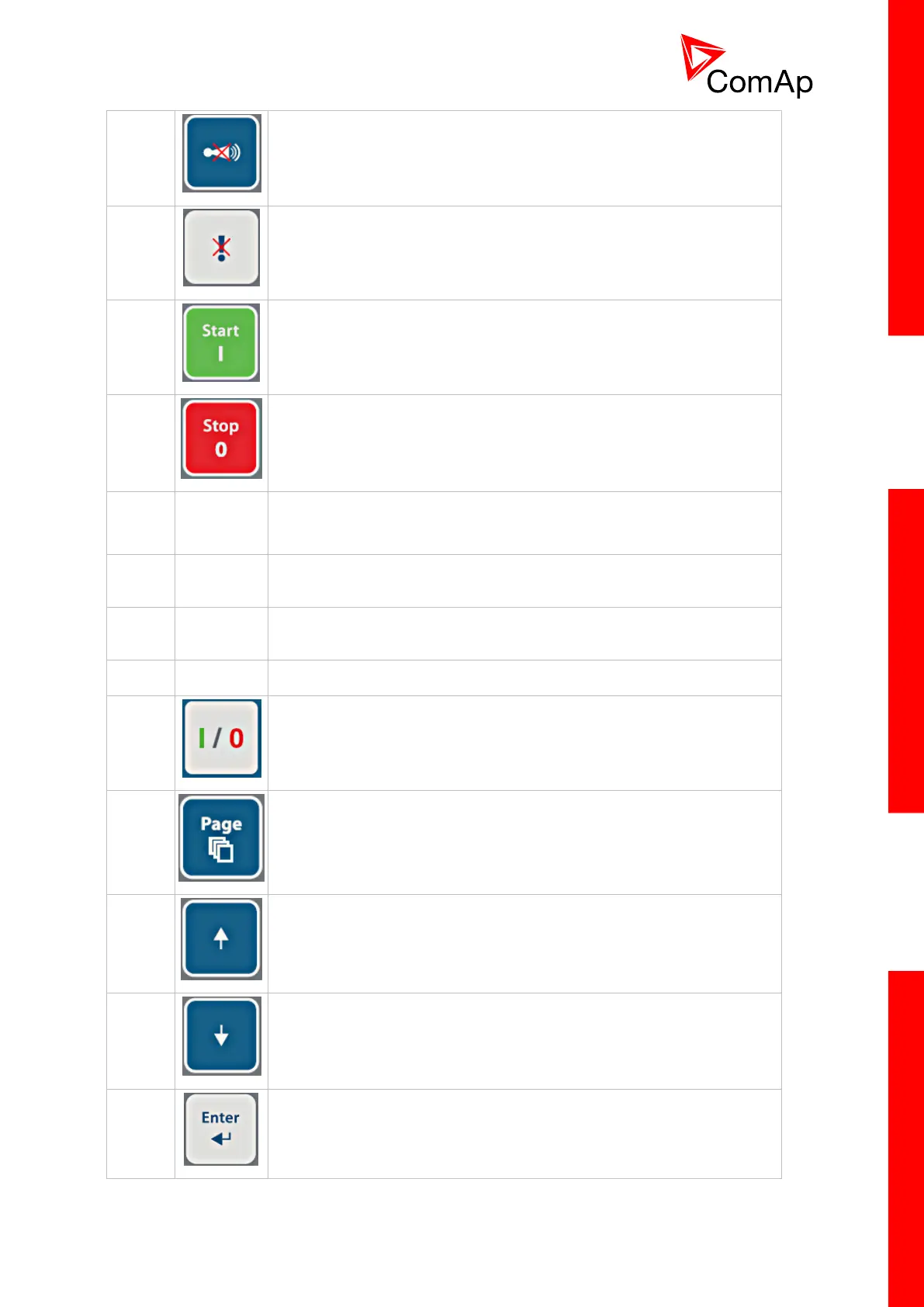

HORN RESET button. Use this button to deactivate the horn output
without confirmation of the alarms.
4
FAULT RESET button. Use this button to acknowledge alarms and
deactivate the horn output. Inactive alarms will disappear immediately
and status of active alarms will be changed to "confirmed" so they will
disappear as soon as their reasons dismiss.
5
START button. Works in MAN mode only. Press this button to initiate the
start sequence of the engine.
6
STOP button. Works in MAN mode only. Press this button to initiate the
stop sequence of the engine.
7
RUNNING
LED
Engine running
8
WARNING
LED
A failure but engine keeps running
9
SHUT-
DOWN LED
Engine is stopped because of red alarm.
10
I/0 LED
Status of I/0 button:
11
ON/OFF button: according to the user setup, the button switches the
chosed parameter (Toogle, Nominal/Iddle speed, Close load etc.)
12
PAGE button. Use this button to switch over display pages. See Display
Screens and Pages Structure chapter below this table for more details.
13
UP button. Use this buttonto select the set point, select the screen or
increase set point value
14
DOWN button. Use this button to select the set point, select the screen or
decrease set point value
15
ENTER button. Use this button to finish editing a setpoint or moving right
in the history page.
