ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
66
Load Request
Load Request 2
Load ReqRamp
Load UpLimit
Load DownLimit
Load Gain
Load Integral

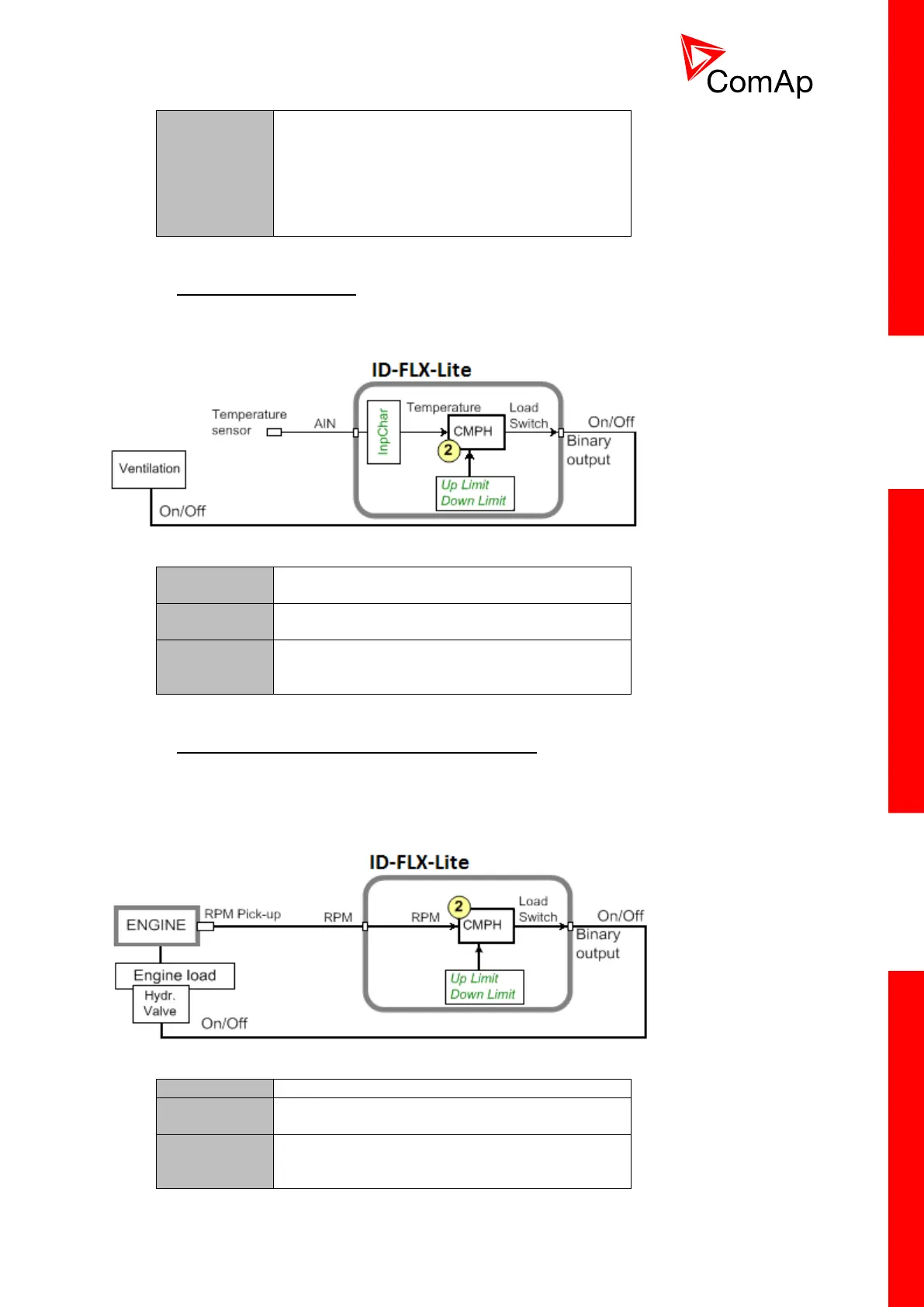

6.9.3.3 General comparator
Purpose: Switch on/off some device depends on analog value - e.g. temperature.
Description: The function activates/deactivates some device based e.g. on temperature.
Input
Analog input: CU: AI1-AI9
AIO: AI1-AI4
Binary
output
Load Switch
Setpoints
Load limit: Load CMP Input = AI1
Load CMP On = 90
Load CMP Off = 80
6.9.3.4 Engine load limitation with On/Off output
Purpose: Protect the engine against overload by reducing (switching On/Off) the load.
Description: CMPH (Comparator with Hysteresis) detect the RPM decrease below the Down limit,
activates the Binary output Load switch that reduces (slow down feeder) the load. There are expected
corresponding droop characteristics on the engine.
Input
RPM from pickup (or ECU)
Binary
output
Load Switch
Setpoints
Load limit: Load CMP Input = RPM
Load CMP On = e.g. 2000
Load CMP Off = e.g. 2200
