Appendix F Revision 4
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
F–6
Step
Task
5
(cont.)

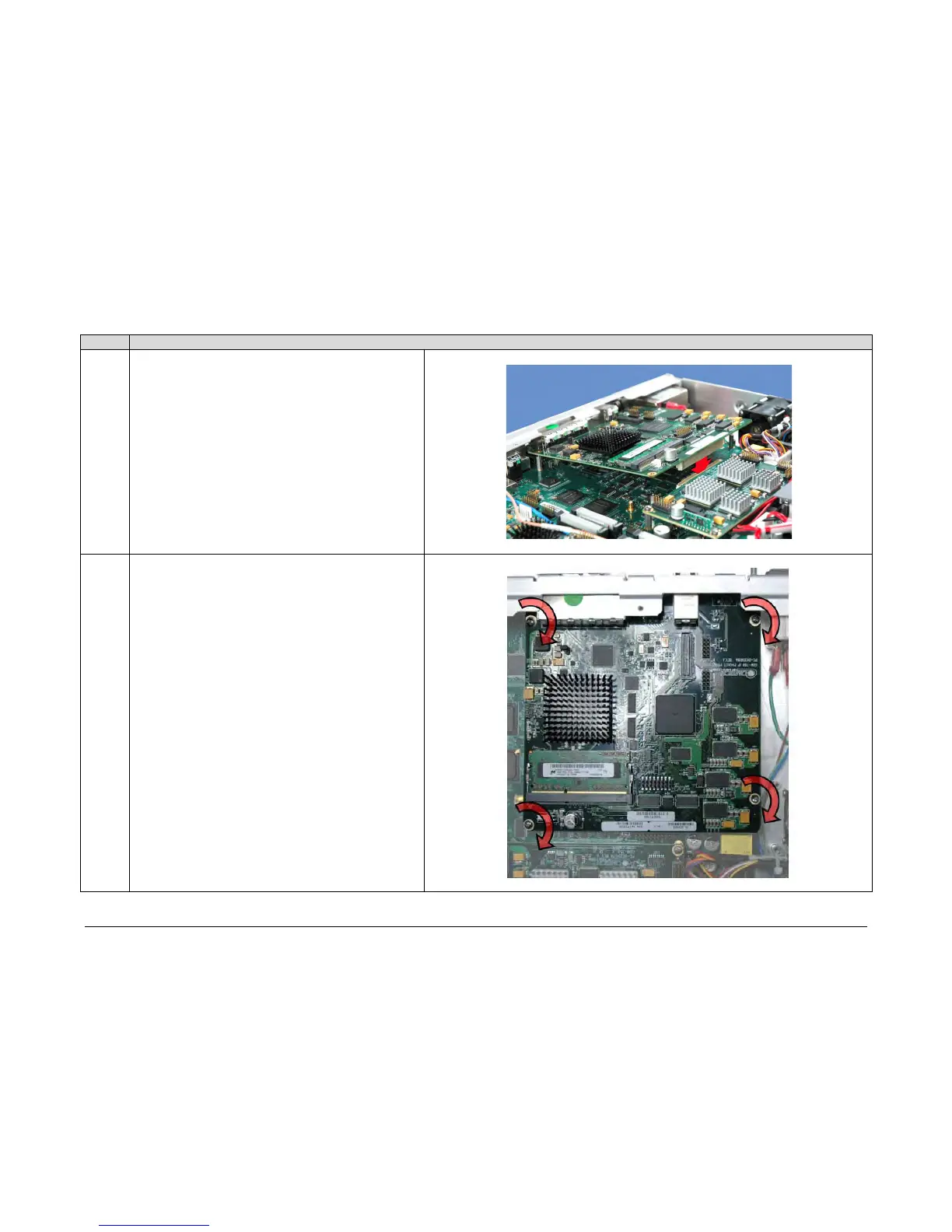

B. Plug the card firmly into the modem connector – take care
not to damage any chassis-mounted components.
Similarly, be sure not to damage the bottom of the card on
the chassis’ mounting bosses while plugging the card
receptacle into its mating connector.
C. Placement is complete once the card receptacle is fully
engaged within its mating connector, and the mounting
holes at the front and rear of the card are centered with
the mounting boss threaded holes.
6
Use the screwdriver and provided fasteners (4X 4-40 x 1/4 LG
pan head screws) to secure the Packet Processor to the
mounting bosses.
