Cooper SMP 4 - Using the SMP Gateway as a Protocol Translator

SMP Gateway User Manual • 13
 SNMP support to monitor communications status.
 Sophisticated HMI, interactive diagrams, data logging and reporting, using Cooper Power
Systems’ Visual Substation software.
 Sophisticated Windows tools for remote or local maintenance.
 A sophisticated security server to support corporate network users.
Even more important, the transparent SMP Gateway is the first step in integrating new substation
devices to your existing SCADA and automation system.
REAL-TIME
DATA EXCHANGE
MODBUS
SLAVE
MODBUS
MASTER
RS-232
CONNECTION
RS-232
CONNECTION
WEB
SERVER
IEC 1131
SOFT PLC
PASSTHRU
VISUAL
SUBSTATION
SNMP
SCADA
INTERNET
EXPLORER
VISUAL
SUBSTATION
HMI
DEVICE
STATS LOGS TRACES
MAINTENANCE
TOOLS

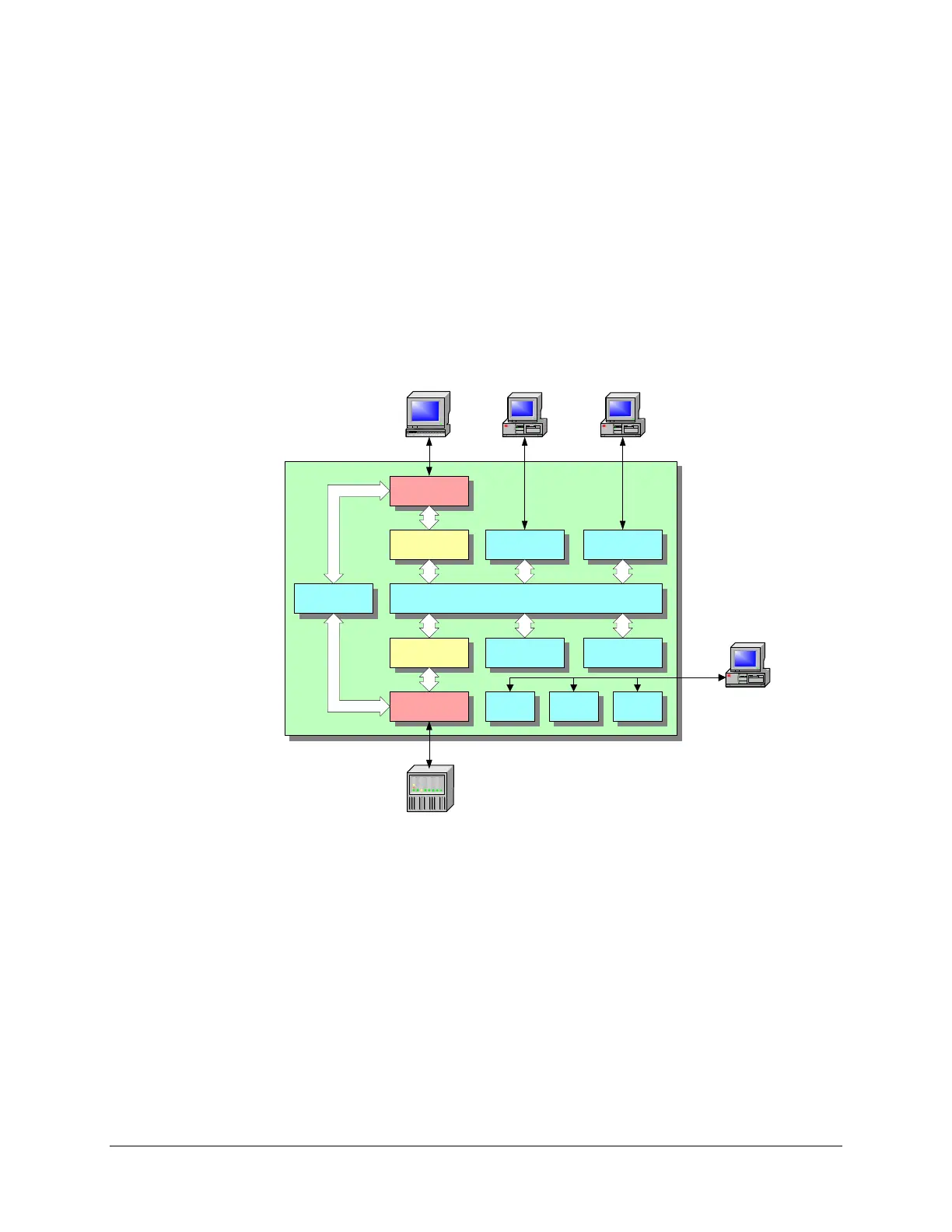

Figure 6 Additional SMP Gateway functions
2.2.2 Using the SMP Gateway as a Protocol Translator
As we saw in the last section, the SMP Gateway is transparent when the master and slave
protocols are the same. When you configure different master and slave protocols, the
SMP Gateway becomes a protocol translator.
Since you can independently configure the communications links for the master and slave
components, you can easily use the SMP Gateway to integrate legacy serial devices in a modern
network environment. Similarly, you can connect modern IEDs to a legacy control center.
