Cooper SMP 4 - Figure 8 the SMP Gateway Data Concentrator; Using the SMP Gateway as a Communications Processor

SMP Gateway User Manual • 15
REAL-TIME
DATA EXCHANGE
DNP3
SLAVE
MODBUS
MASTER
TCP/IP
CONNECTION
RS-232
CONNECTION
SEL
MASTER
RS-232
CONNECTION
SCADA
DEVICE DEVICE

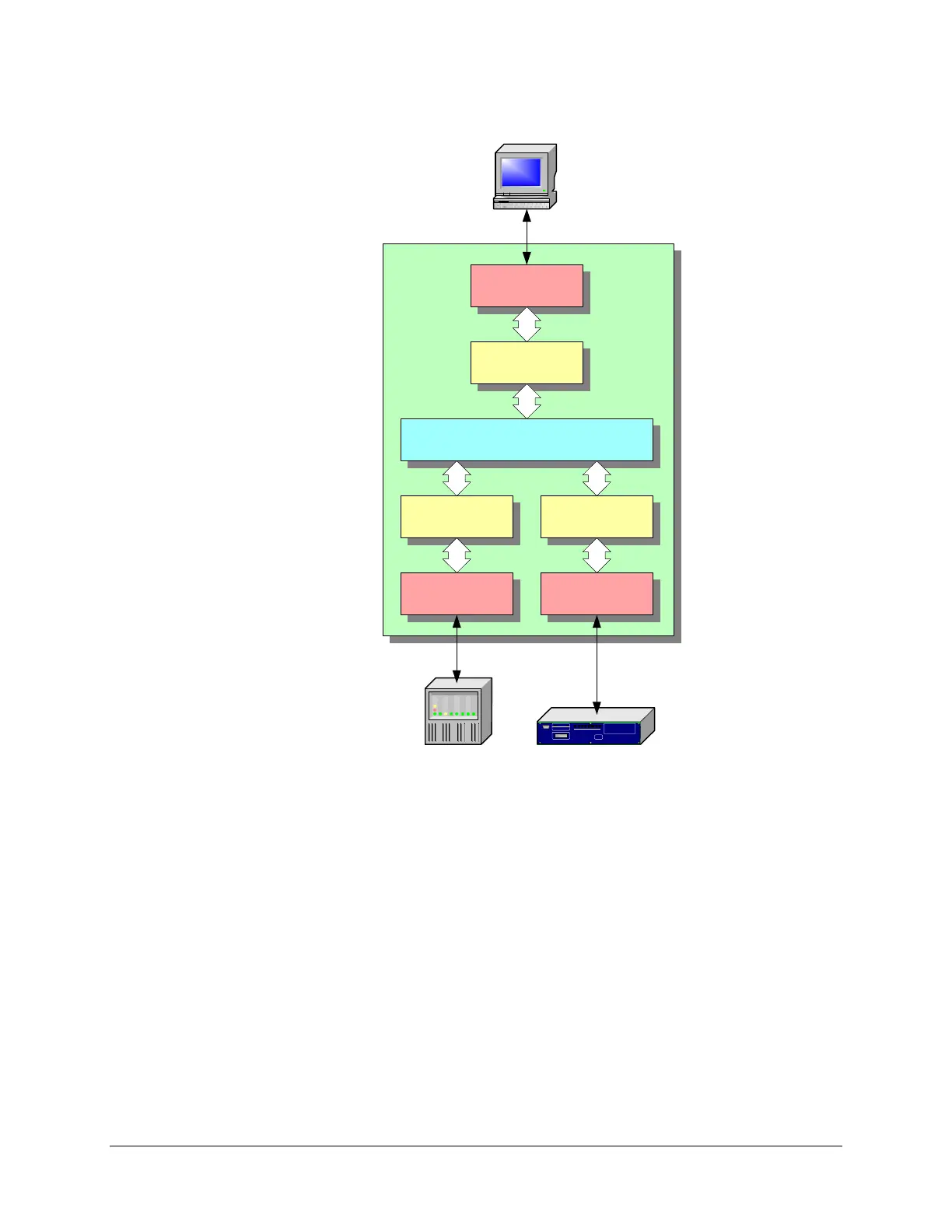

Figure 8 The SMP Gateway data concentrator
2.2.4 Using the SMP Gateway as a Communications Processor
The SMP Gateway architecture supports any number of slave components. Each component has
its own communications link, and all the device data can be sent to any number of SCADA and
control centers, each with its own protocol. Using the SMP Gateway, sending data to a new
control center is a simple matter of configuration.
