CUMMINS N14 - INSTALLATION

Installation

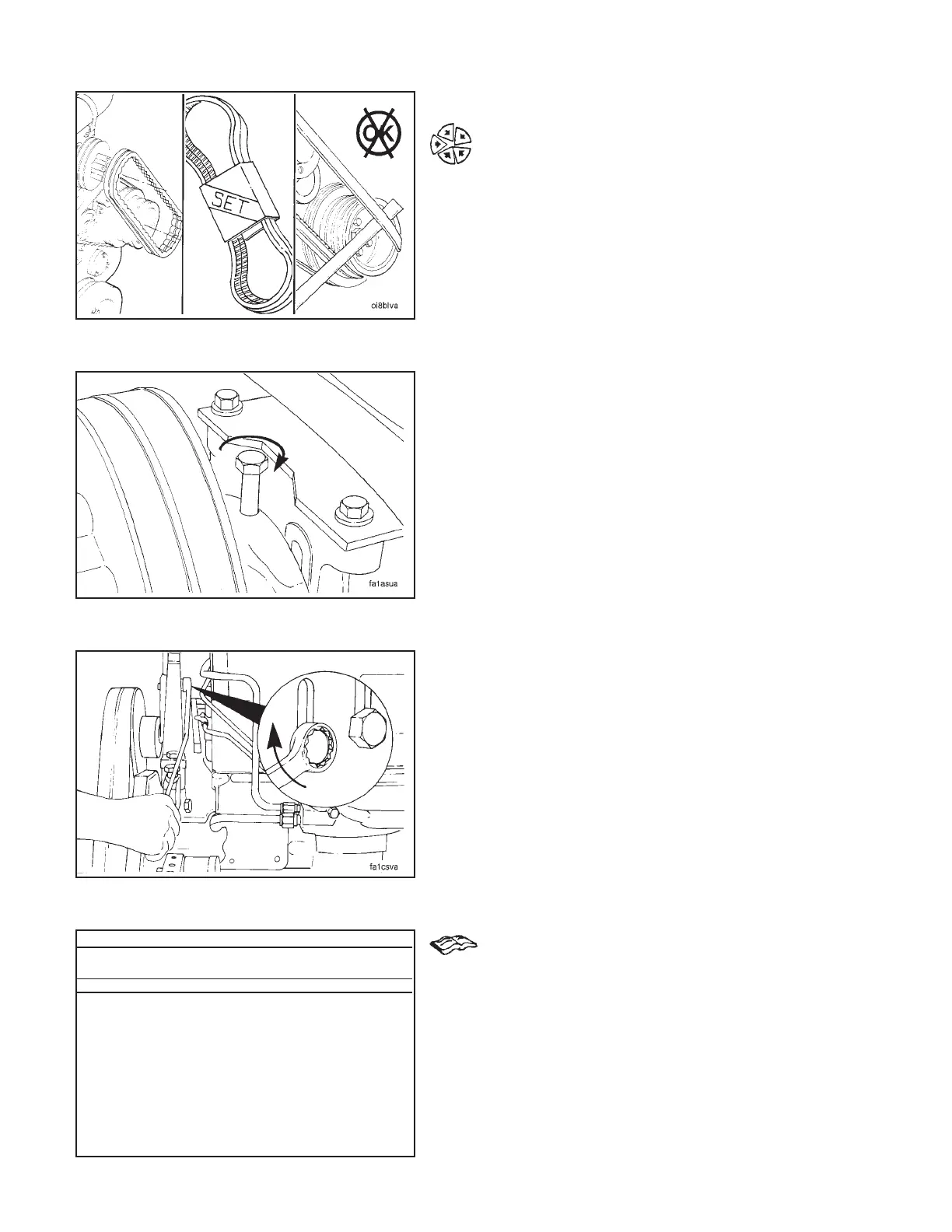

Install new belts on the pulley. When a drive pulley uses
two or more belts, replace the belts as a complete set.
NOTE: To prevent damage, do not roll a belt over the pulley
or pry it on with a tool.
Turn the adjusting screw to increase the belt tension.
NOTE: Belt tension can increase when the fan hub mount-
ing capscrews are tightened. Do not adjust the belt tension
to full value with the adjusting screw.
Tighten the capscrews until the fan hub is in correct
alignment with the fan hub bracket.
NOTE: Do not tighten the capscrews to full torque value.
Measure the belt tension.
Refer to the Belt Tension Chart to select the correct
gauge and tension values for the belt width.
A belt is considered used if it has been in operation for
at least 10 minutes.
Belt Tension Specifications
SAE
Belt Size
Belt Tension
Gauge
Part No.
New Belt
Installation
Tension
*Used Belt
Tension Limits
in. Click-type Burroughs N lbf N min-max lbf
.380 3822524 N/A 620 140 270-490 60-110
.440. 3822524 N/A 620 140 270-490 60-110
1/2. 3822524 ST-1138 620 140 270-490 60-110
11/16. 3822524 ST-1138 620 140 270-490 60-110
3/4. 3822524 ST-1138 620 140 270-490 60-110
7/8. 3822524 ST-1138 620 140 270-490 60-110
4 Rib 3822524 ST-1138 620 140 270-490 60-110
5 Rib 3822524 ST-1138 670 150 270-530 60-120
6 Rib 3822525 ST-1293 710 160 290-580 65-130
8 Rib 3822525 ST-1293 890 200 360-710 80-160
10 Rib 3822525 3823138 1110 250 440-890 100-200
12 Rib 3822525 3823138 1330 300 530-1070 120-240
Fan Belts (1-21) Section 1 - Cooling System
