CUMMINS N14 - Lubricating Oil Transfer Tube

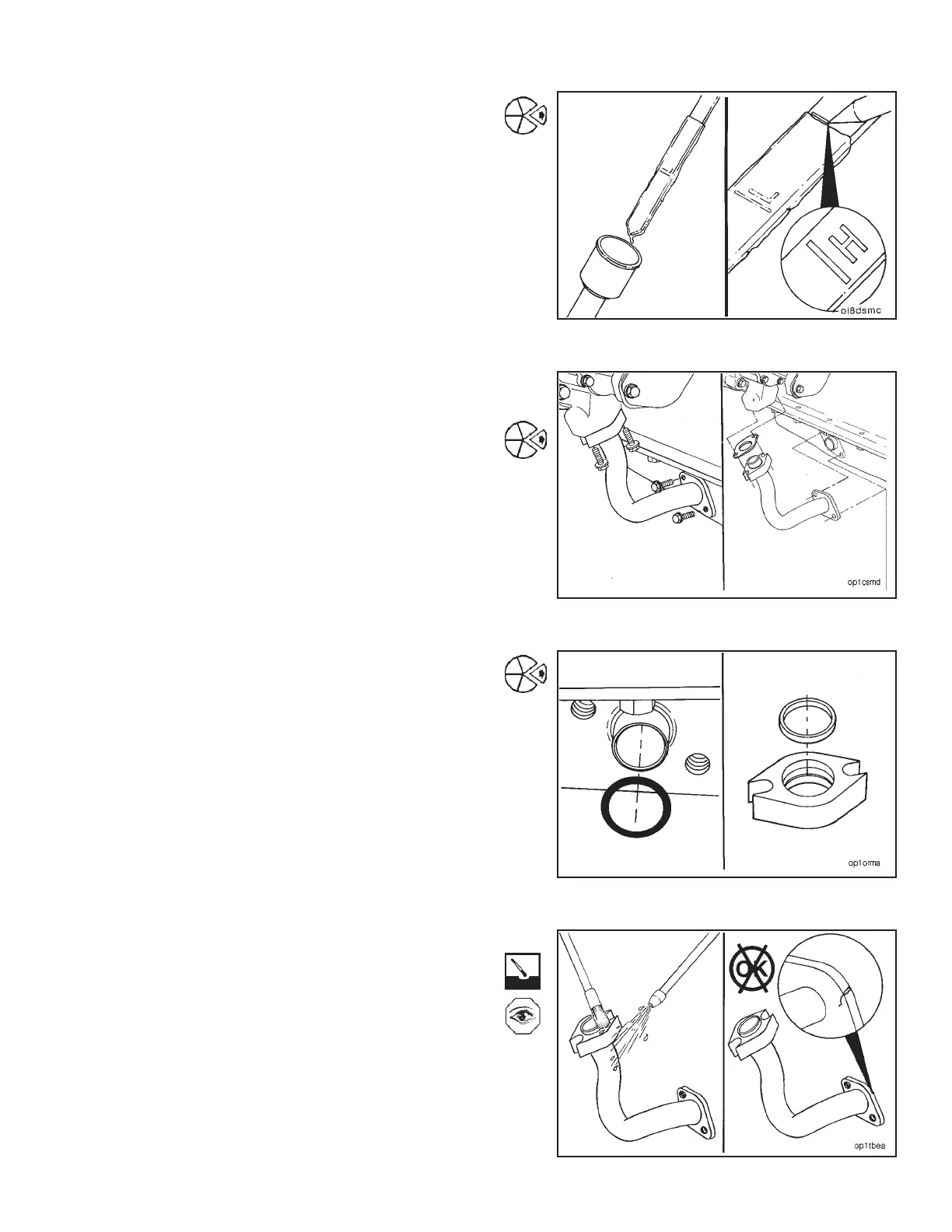

Remove the dipstick, and scribe a mark across the dip-
stick at the indicated ‘‘HIGH’’ oil level. Mark the ‘‘HIGH’’
oil level with an ‘‘H’’.
NOTE: The dipstick will break if the scribe mark is too deep.
Lubricating Oil Transfer Tube (2-11)
Removal
Remove the two capscrews from the flange at the oil pan
and also the two capscrews from the flange at the lubri-
cating oil pump.
Remove the lubricating oil transfer tube.
Remove and discard the o-ring from the oil pan flange
tube and the rectangular sealing ring from the lubricating
oil pump mounting flange.
Cleaning and Inspection
Clean the lubricating oil transfer tube and the mounting
flanges with solvent.
Dry with compressed air.
Visually inspect the tube and the flanges for cracks, cor-
rosion, or other damage.
Section 2 - Lubricating System Lubricating Oil Transfer Tube (2-11)
N14 Page 2-27
