Removal - Oil Cooler Core

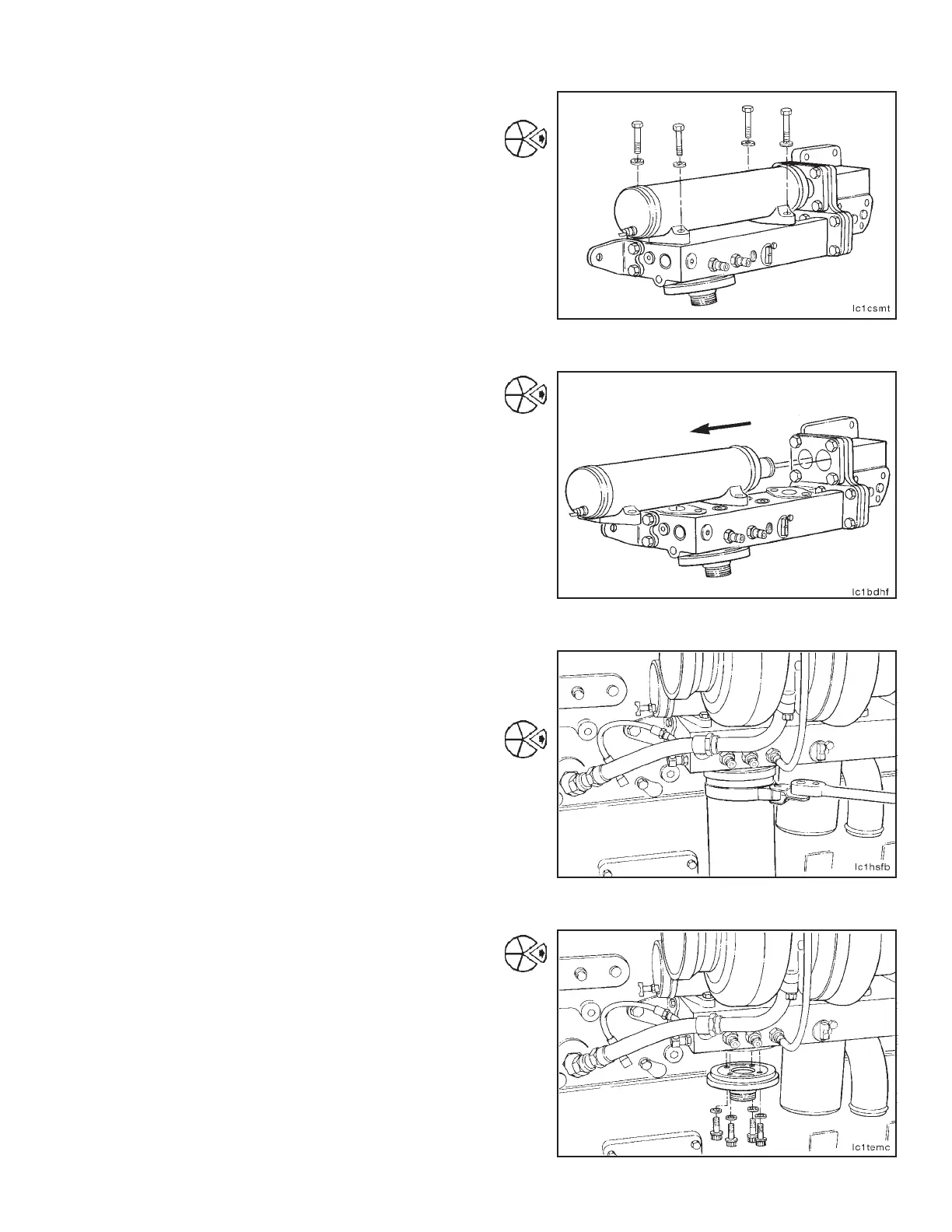

Remove the oil cooler core holddown capscrews.
NOTE: The oil cooler core can be removed from the transfer
housing while still installed on the engine.
Remove the oil cooler core from the oil cooler transfer
connection (housing) by pulling the oil cooler water trans-
fer tubes out of the o-ring adapters.
Removal - Lubricating Oil Filter Head
NOTE: The oil cooler assembly does not need to be re-
moved to replace the oil filter head.
Remove the combination Full Flow/bypass lubricating oil
filter.
Remove the four filter head 12 point capscrews and the
filter head.
