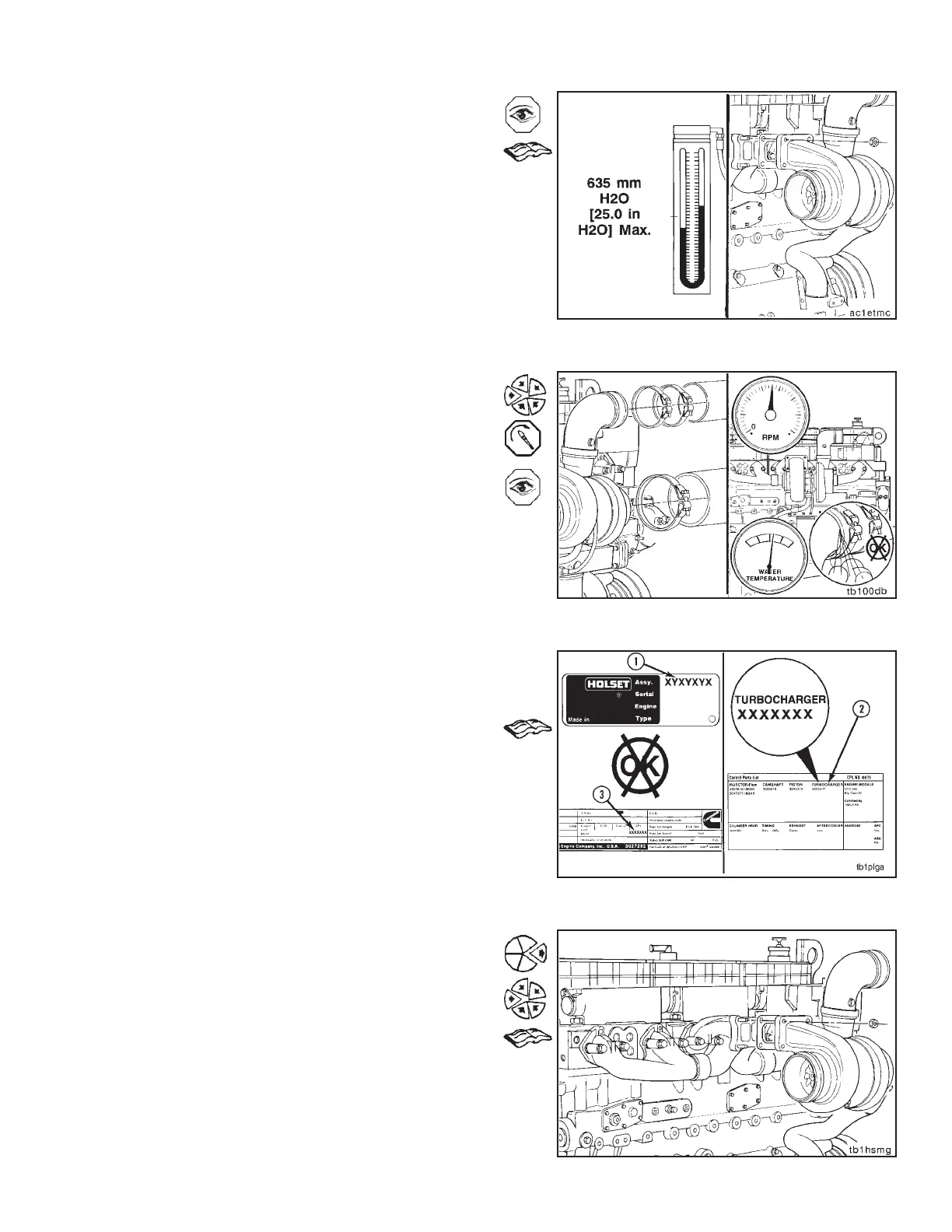

If oil is present only in the discharge side, check for intake
restriction. Refer to Procedure 3-04.
If no intake restriction is found, replace the turbocharger.
Refer to Procedure 3-08.
Install the air intake and CAC piping to the turbocharger
and tighten the clamp.
Torque Value: 8.5 N•m [75 in-lb]
Operate the engine at full throttle and maximum load, and
check for air leaks.
Turbocharger - Verifing Correct Part
Number (3-03)
Compare the assembly number (1) on the turbocharger
dataplate with the turbocharger specified in the engine
CPL (Control Parts List) manual (2). Both numbers must
match.
NOTE: The CPL number for each engine is listed on the
engine dataplate (3).
If the correct turbocharger was not installed, remove it
and install the correct turbocharger. Refer to Procedure
3-08.
Section 3 - Combustion Air System Turbocharger - Verifing Correct Part Number (3-03)
N14 Page 3-11
