Removal - Lubricating Oil Filter Bypass Valve

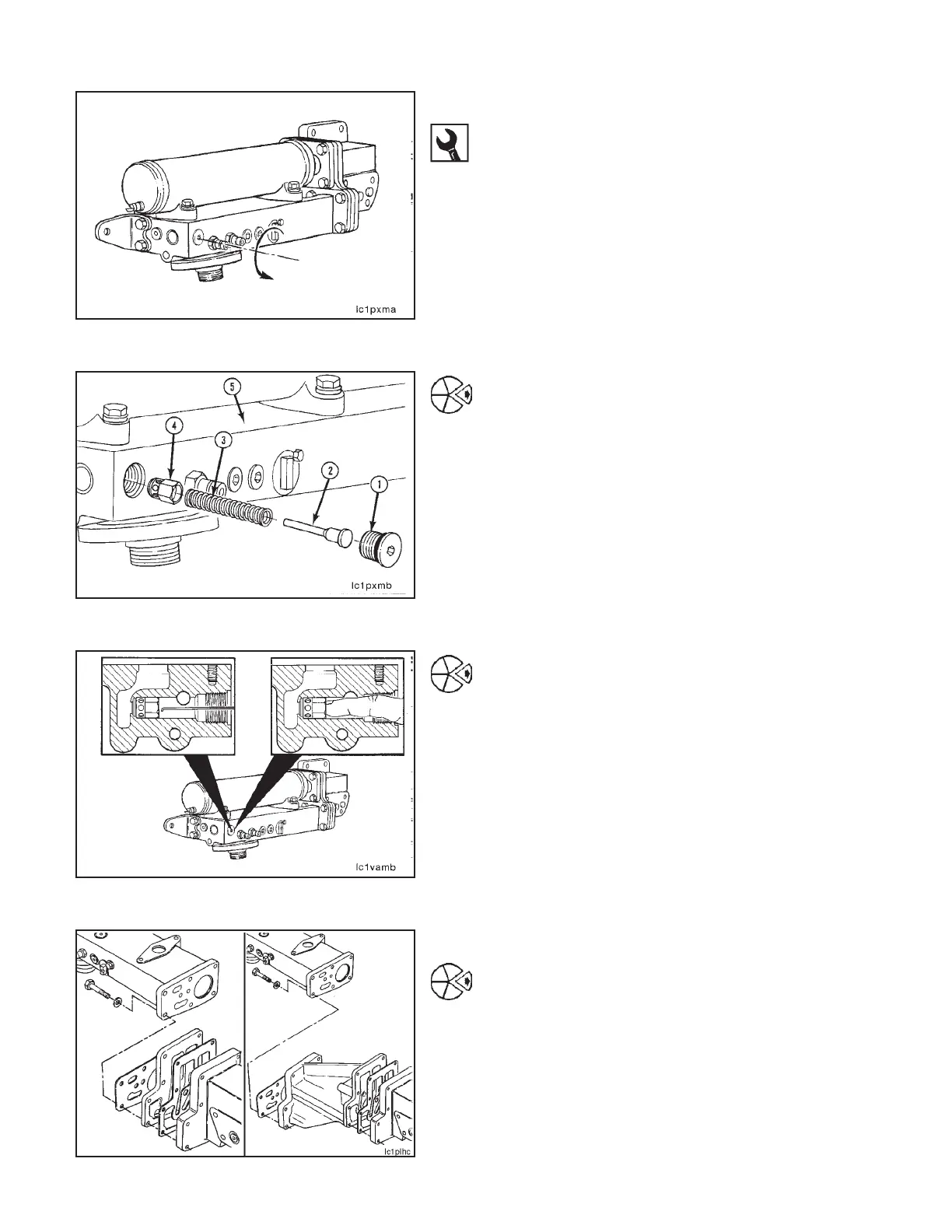

Loosen the retaining plug with a 5/16 inch hexagon allen
wrench.
Remove the retaining plug (1), the plunger (2), spring (3),
and poppet valve (4), from the lubricating oil cooler trans-
fer housing (5).
If the poppet valve sticks in the housing it can be removed
with the aid of a bent wire or by using your finger.
Removal - Oil Cooler Transfer Housing
Remove the six capscrews which connect the oil cooler
support to the oil cooler transfer housing.
Remove the spacer plate or drop mount connection.
Lubricating Oil Cooler Assembly (2-19) Section 2 - Lubricating System
N14Page 2-52
