Installation

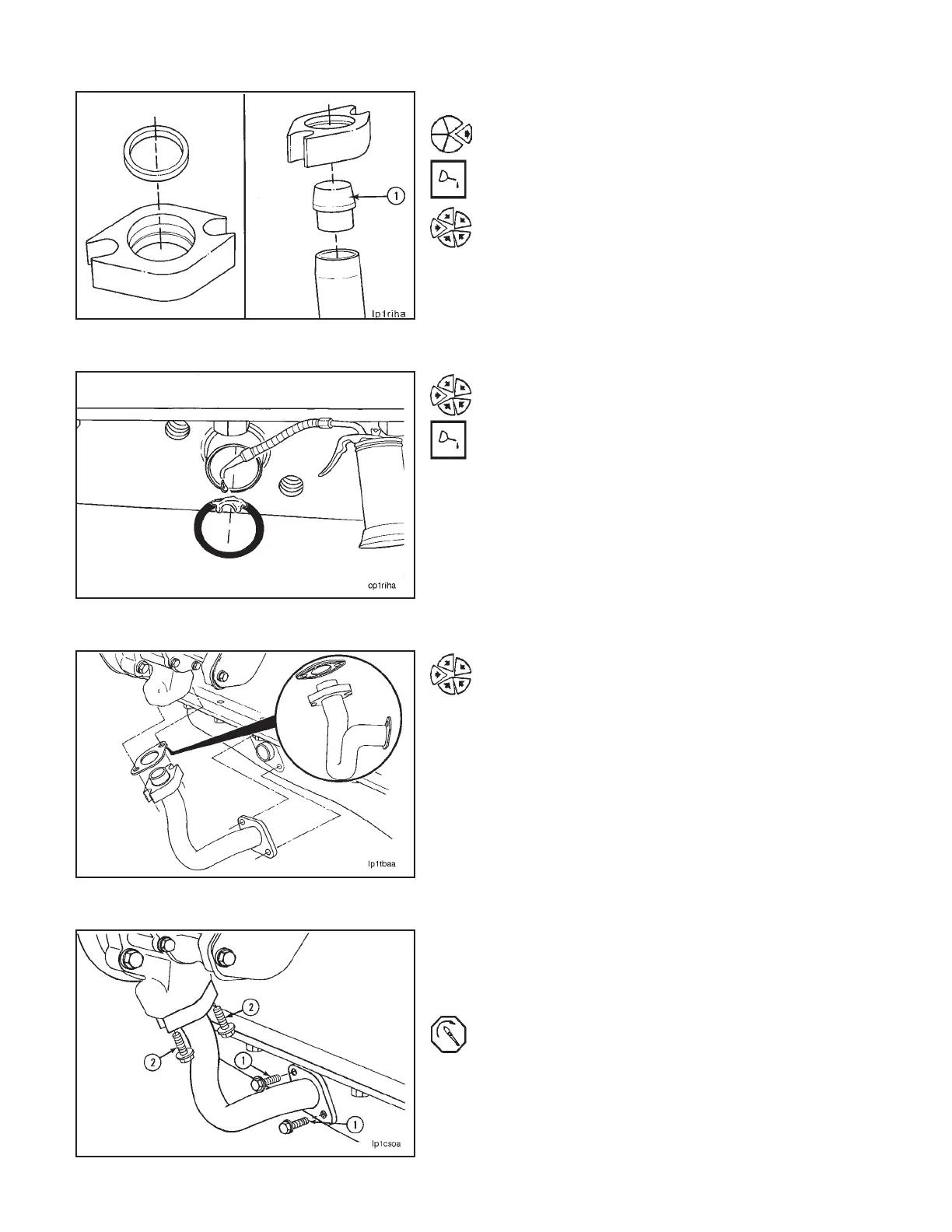

Install a new rectangular sealing ring in the lubricating oil
pump mounting flange.
Use clean vegetable oil to lubricate the seal.
Install the sealing ring expander (1), Part No. 3376844,
into the end of the lubricating oil transfer tube, and push
the tube through the flange. Remove the sealing ring
expander from the suction tube.
Install a new o-ring on the oil pan lubricating oil suction
tube.
Use clean vegetable oil to lubricate the o-ring.
Loosely install the lubricating oil transfer tube assembly
with the lubricating oil pump mounting flange, new seal-
ing ring, new gasket, and the mounting capscrews to the
oil pan and lubricating oil pump.
NOTE: The printed side of the mounting flange gasket on
the oil transfer tube must be toward the flange.
Tighten the capscrews in the following sequence:
• First, tighten the two capscrews (1) at the oil pan.
• Second, tighten the capscrews (2) at the lubricating
oil pump.
Torque Value: 47 N•m [35 ft-lb]
Lubricating Oil Transfer Tube (2-11) Section 2 - Lubricating System
N14Page 2-28
