CUMMINS N14 - FUEL SYSTEM TORQUE VALUES

STC Oil Control Valve (Refer to the CPL Manual, Bulletin No. 3379133 for valve part number)
Part No.
Upper Shift Point
kPa [psi]
Lower Shift Point
kPa [psi]
3070128 241±34
[35±5]
Not more than 55[8] below
upper shift point
3072335 200±34
[29±5]
Not more than 55[8] below
shift point

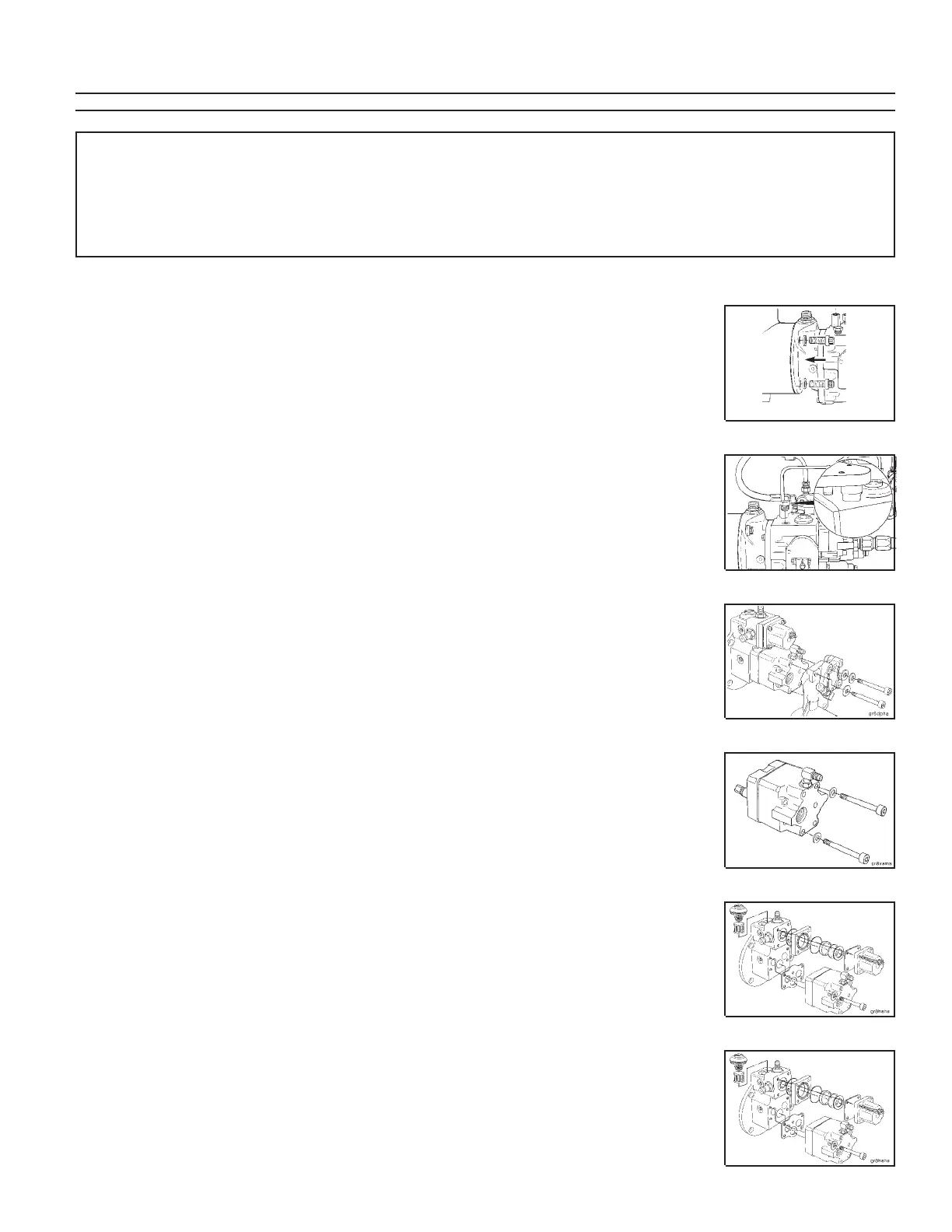

Fuel System Torque Values
Fuel Pump Mounting Capscrews
(STC and CELECT™) 5-02 47 N•m 35 ft-lb
Fuel Pump Priming Hole Plug
(STC Engines) 5-03 27 N•m 20 ft-lb
Fuel Pump Damper Mounting Capscrew
(STC and CELECT™ Engines) 5-02 18 N•m 13 ft-lb
Fuel Pump Cover-To-Body Mounting
Capscrews (CELECT™ Engines) 18 N•m 13 ft-lb
Fuel Pump Housing to Pump Support
Mounting Capscrews
(CELECT™ Engines) 18 N•m 13 ft-lb
Fuel Pump Filter Screen Retainer Plug
(CELECT™ Engines) 18 N•m 13 ft-lb
Section V - Engine Component Specifications Component Specifications and Torque Values
N14 Page V-19
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
